No

Kod

Parça Adı

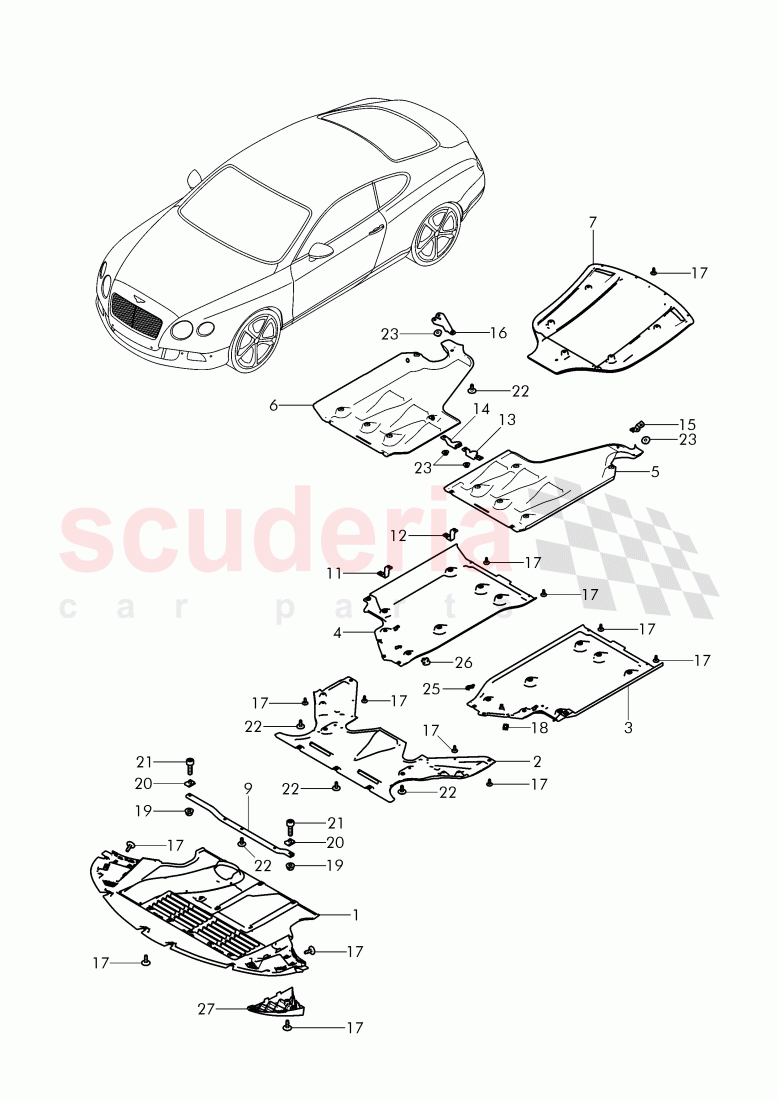

1

3W3 825 235 G

underbody lining, D - 26.05.2014>>

1

3W3 825 235 F

underbody lining, D - 26.05.2014>>

2

3W3825238

underbody lining

3

3W3 825 197 C

underbody lining

4

3W3 825 198 C

underbody lining

5

3W3825229

underbody lining

6

3W3825228

underbody lining

7

3W8825507G

underbody lining, D - 30.08.2011>> - 06.01.2014

8

3W3825195

underbody lining

9

3W0825199B

support bracket underbody trim

10

3W3825117

support bracket underbody trim

11

3W3801327

bracket

12

3W3801455

bracket

13

3W3825073

bracket, underbody lining

14

3W3825074

bracket, underbody lining

15

3W3825921A

bracket, underbody lining

16

3W3825922A

bracket, underbody lining

17

N90974701

Hexagon socket head panel bolt

18

N90959101

speed nut, included in position:

19

N10286110

shouldered hex. nut,, self-locking

20

N90327503

speed nut, D - 01.06.2005>>

21

N90320206

socket head bolt with hexagon socket head (combination) D - 29.05.2006>>

22

WHT004949

oval head locating bolt with multi-point socket head

23

N90215804

hex. nut, F >> 3W-G-051 745, F >> ZA-G-051 745

24

3W7825233

bracket, underbody lining

24

3W7825234

bracket, underbody lining

26

3W3825343

bracket, underbody lining

27

3W3 825 371 B

underbody lining, protection trims, side, D - 26.05.2014>>

27

3W3 825 372

underbody lining, protection trims, side
