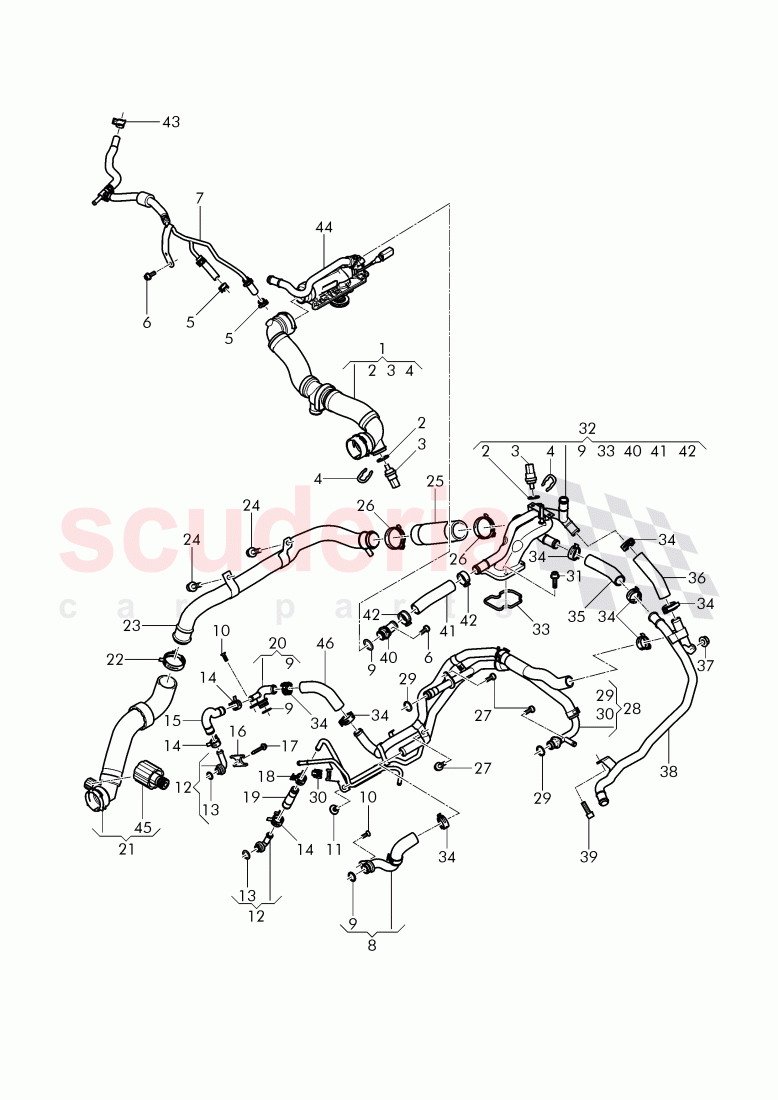

No

Kod

Parça Adı

1

3W0122051B

coolant hose F >> 3W-7-045 828

1

3W0122051C

coolant hose F 3W-7-045 829>> D - >> MJ 2008

1

3W0122051D

coolant hose with quick release coupling D - MJ 2008>>

2

N90316801

o-ring

3

06A919501A

Coolant temperature sender, water pump, dark grey

4

032121142

retaining spring

43

N90686701

spring clip, Only in combination with:, Only in combination with:

6

N10248003

socket hd. screw with, collar, D - 11.12.2006>>

7

3W0122447R

cooling pipe (expansion tank > distributor > coolant pipe > cylinder head) F 3W-6-039 273>> 3W-7-045 828

7

3W0122447T

vent hose, (RESERVOIR > adapter >, WATER PIPE >, CYLINDER HEAD), F 3W-7-045 829>>, F ZA-A-062 464>>

8

07C121132B

water coolant pipe with, water hose

9

07D121666

o-ring

10

N90954905

Hex socket countersunk bolt, D - 20.07.2012>>

24

N90989102

socket head bolt with inner multipoint head D - 06.11.2006>>

12

07C121131J

pipe union

13

N 907 834 01

O-Ring

14

N 909 264 01

spring clip

15

07C 121 096 AB

water hose, Alternator, D - 23.01.2017>>

16

07C121077H

retaining plate

17

N10530403

socket head collared bolt with inner multipoint head D - MJ 2007>>

18

N90770201

spring clip, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013

19

07C121096J

coolant hose alternator

20

07C121132J

water coolant pipe with, water hose, D - MJ 2007>>

21

3W0122101C

coolant hose with quick release coupling optional: FOR DRAIN VALVE ONLY, USE: D - 14.05.2007>>

22

N90655901

spring band clamp D - >> 26.03.2007

26

8E0121530

spring band clamp D - 26.03.2007>>

23

07C121070AL

coolant pipe D - MJ 2006>>

24

N90662603

hexagonal socket head, screw

25

07C121052K

coolant hose

26

N90926501

spring band clamp D - >> 26.03.2007

27

N91096701

Oval hexagon socket head bolt, D - 29.05.2006>>

28

07C121507C

water coolant pipe with, water hose

29

N90561902

o-ring

30

07D971939

clip, D >> - MJ 2005

31

N90500604

socket head bolt with inner, hex round head, D - 06.11.2006>>

32

07C121064H

water coolant pipe with, water hose, D - MJ 2006>>

33

07D121149B

gasket

42

WHT 007 714

spring clip

35

07C121052B

coolant hose

36

07C121052C

coolant hose

37

N10340003

hex. nut with washer, D - MJ 2007>>

38

07C121486R

coolant pipe

39

N90972004

fillister head bolt with multi-point socket head D - MJ 2007>>

40

07C121485A

water connection

41

07C121060

coolant hose

46

3W0 121 297

drain plug
