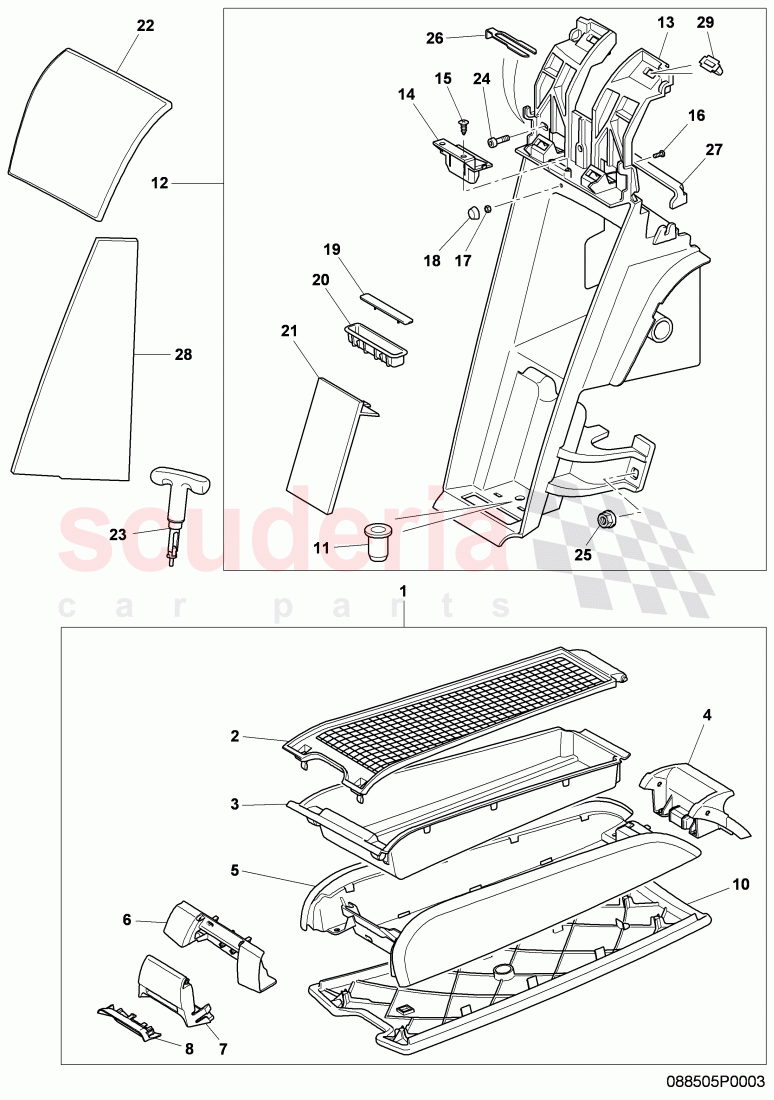

No

Kod

Parça Adı

1

3W7 885 075 C

trim panel for backrest, long load aperture

2

3W7885615A

cover for reservoir, Storage compartment

2

3W7885615B

Lid for storage compartment, Storage compartment

3

3W7885641B

stowage box, long load aperture

4

3W7885235

locking hook, long load aperture

5

3W7885925A

Moulding, long load aperture

6

3W7885671

bezel for handle, long load aperture

7

3W7885732B

latch, long load aperture

8

3W7885940

release button

10

3W7885739C

Moulding, long load aperture

11

3W7885383

grommet

12

3W7885076E

sub frame, long load aperture

13

3W7885961D

Moulding, long load aperture

14

3W7886617

lock striker

15

N10442003

screw, thread cutting

16

N10600901

Hexagon socket flat, head bolt

17

N01100412

hexagon nut

18

3W7885530

jounce bumper

19

3W7885620

jounce bumper

20

3W7886412

retainer for hinged backrest

21

3W7 885 934 C

emergency key, storage bin, D - 03.10.2011>>

22

3W7885505

insert, long load aperture

23

8H0825381

emergency key

24

N90167003

hexagon screw with washer

25

N90570802

hex. nut with washer, F 3Y-C-016 743>>, F ZH-C-016 743>>

26

3D0857173

distance piece cross tube

26

3D0857173A

spacer washer, cross tube

26

3D0857173B

spacer washer, cross tube

27

3W7885234

sealing strip

28

3W7868511

plastic foam, frame

28

3W7868512

plastic foam, frame

29

7M3858153

spring clip, D >> - 30.08.2011
