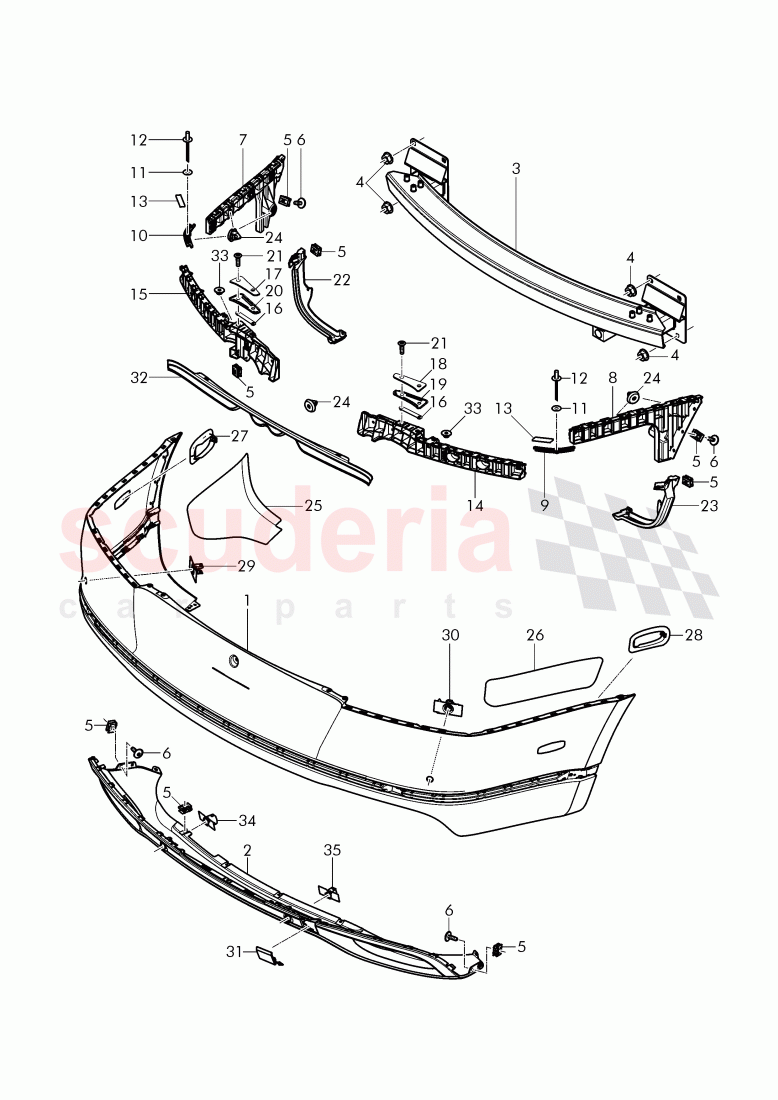

No

Kod

Parça Adı

1

3W3 807 417 BJ

cover for bumper

1

3W3 807 417 BK

cover for bumper

1

3W3 807 417 BF

cover for bumper

1

3W3 807 417 BN

cover for bumper

1

3W3 807 417 BP

cover for bumper

2

3W3807433HGRU

rear skirt

2

3W3 807 433 J

rear skirt

3

3W3 807 305 A

bumper bracket

4

N90348411

hex. nut with washer

5

N90959101

speed nut, included in position:

6

N90974701

Hexagon socket head panel bolt

7

3W3 807 393 F

guide piece, D - 16.11.2015>>

8

3W3 807 394 F

guide piece, D - 16.11.2015>>

9

3W3 807 830 A

retainer plate, D - 01.10.2012>>

10

3W3 807 829 A

retainer plate, D - 01.10.2012>>

11

1J5827147

sealing washer

12

N10181803

screw, hex. hd.

13

3W3 863 817

Adhesive film, D - 01.10.2012>>

14

3W3 807 864 G

guide piece, D - 16.11.2015>>

15

3W3 807 863 G

guide piece, D - 16.11.2015>>

16

3W3807805

retaining plate

17

3W3 807 499 D

cap, D - 20.04.2015>>

18

3W3 807 500 D

cap, D - 20.04.2015>>

19

3W3 807 485 B

gasket

20

3W3 807 486 B

gasket

21

WHT005543A

countersunk bolt

22

3W3 807 125 A

bracket

23

3W3 807 126 A

bracket

24

N10621301

expanding nut

25

3W3 825 715 E

heatshield, cover for bumper

26

3W3 825 716 E

heatshield, cover for bumper

27

3W3807107B

side marker light, bracket, D - 27.06.2011>>

28

3W3807108B

side marker light, bracket, D - 27.06.2011>>

29

3W0 919 485 A

bracket, for Ultrasound sensor

30

3W0 919 486 A

bracket, for Ultrasound sensor

31

3W3 807 441 C

cover for towing eye

31

3W3 807 441 D

cover for towing eye

32

3W3 807 332

bracket

33

N90663603

hex. nut with washer

34

3W3 919 503 B

Bracket for distance measuring, sensor

34

3W3 919 503 D

Bracket for distance measuring, sensor, D - 02.11.2015>>

35

3W3 919 504 B

Bracket for distance measuring, sensor

35

3W3 919 504 D

Bracket for distance measuring, sensor, D - 02.11.2015>>
