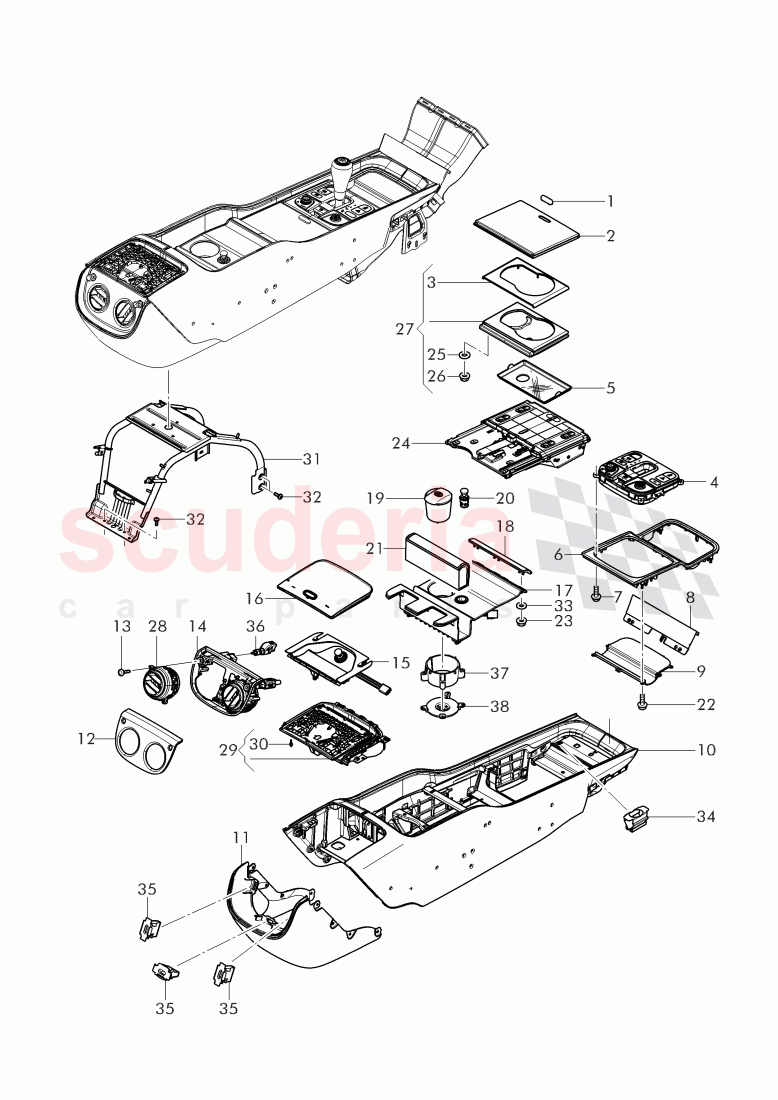

No

Kod

Parça Adı

1

3W5 857 321 C

ashtray, bracket, D - 04.03.2013>>

2

3W0858575

antislip mat, insert for cup holder

2

3W0858575A

antislip mat, insert for cup holder

3

3W0858192D

Cupholder, assembly, D - 14.04.2011>>

3

3W0858192E

Cupholder, assembly, D - 14.04.2011>>

4

3W3 863 243 H

cover for center console

4

3W3 863 243 K

cover for center console

4

3W3 863 243 M

cover for center console

4

3W3 863 243 J

cover for center console

4

3W3 863 243 L

cover for center console

4

3W3 863 243 N

cover for center console

5

3W0858576

antislip mat storage container

5

3W0858576A

antislip mat storage container

6

3W0858021

storage container assembly

6

3W0858021A

storage container assembly

7

N90737105

Oval hexagon socket head bolt, D >> - 23.08.2010

8

3W0863519A

insert piece

9

N91052001

round hd. screw

10

3W0863541

Locking device, bracket

11

3W3 863 304 A

center console, side trim panel, D - 28.11.2011>>

17

3W0857083

stowage box glasses case

17

3W0 857 083 A

stowage box

17

3W0 857 083 B

stowage box

17

3W0 857 083 C

stowage box

17

3W0 857 083 D

stowage box

26

3Y0 857 307 B

latch, insert for ashtray, D - 04.09.2017>>

19

7M3858153

spring clip, D >> - 30.08.2011

19

3Y0 867 838

spring clip, alternatively, you can use:

20

3W0858213

housing

22

N10526302

screw, thread cutting

23

N90714303

hex. nut with washer, D - 11.12.2006>>

36

N10487803

tapping screw,fill.hd.(combi.)

25

3Y5857150

guide plate, insert for ashtray

27

3W0858923

cover cap

28

N91074201

Hexagon socket head bolt, F 3Y-C-016 803>>, F ZH-C-016 803>>

29

3W0 857 774 A

Leather strap, D - 23.02.2015>>

30

3W8 864 448

Pin

31

3W0 857 304

insert for stowage box, also use:

32

3W3 837 235 A

chrome trim, switch

34

N 105 874 02

round hd. screw, D - 16.01.2017>>

35

3W3 837 335

chrome trim, Switch Unit

37

3W0 857 966 A

guide piece
