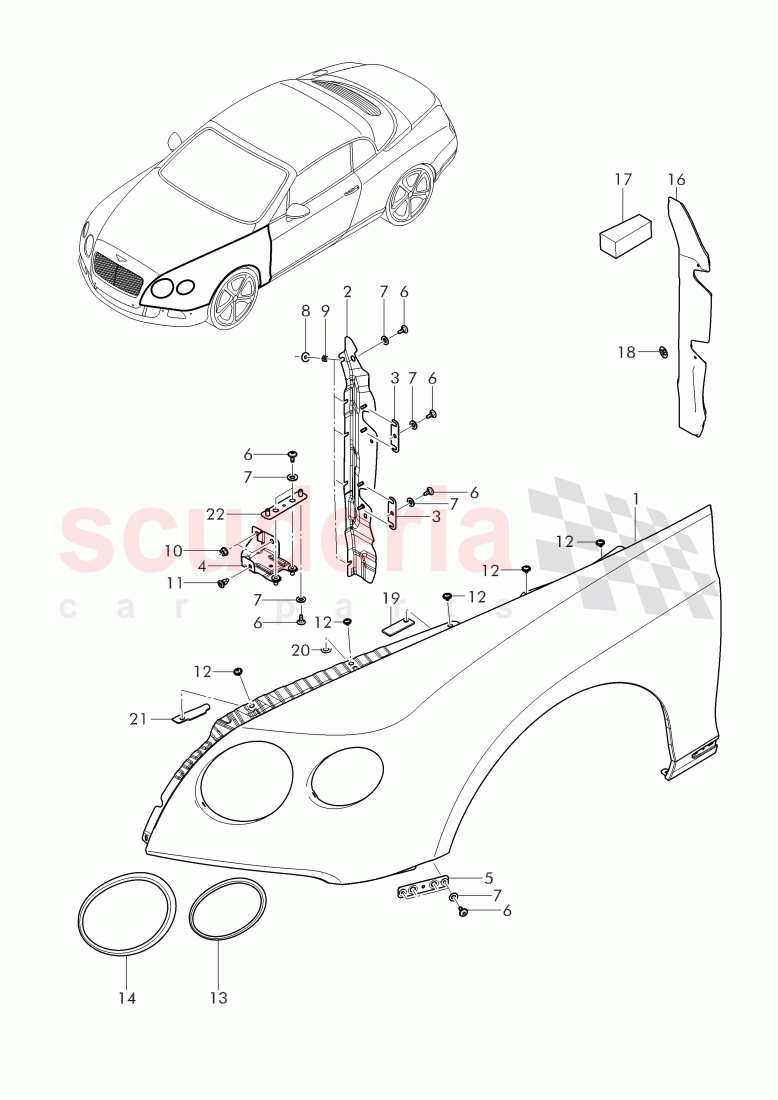

No

Kod

Parça Adı

-

N 910 900 01

Washer, F 3W-D-084 094>> 3W-D-084 410, F ZA-D-084 094>> ZA-D-084 410

1

3W8 821 021 AJ

fender, D - 16.01.2012>> - 30.04.2012

1

3W8 821 021 AQ

fender, D - 24.06.2013>>

1

3W8 821 022 AQ

fender, D - 24.06.2013>>

2

3W8 821 153 H

rip plate, D - 25.06.2012>>

2

3W8 821 154 H

rip plate, D - 25.06.2012>>

3

3W8821161B

spacer washer

4

3W8 821 167 B

bracket, D - 17.06.2013>>

4

3W8 821 168 B

bracket, D - 17.06.2013>>

22

3W8821295B

bracket, bracket, D >> - 30.04.2012

6

N90788402

locating bolt

7

WHT005640

washer

7

N90570802

hex. nut with washer, F 3Y-C-016 743>>, F ZH-C-016 743>>

8

N01166620

washer

9

N01100632

hexagon nut

10

N90215804

hex. nut, F >> 3W-G-051 745, F >> ZA-G-051 745

11

N90821401

expanding nut

12

N91121901

screw, csk. with polygon, socket hd., For mounting to:

13

3W3 807 823 C

headlamp trim frame, D - 04.02.2013>>

13

3W3 807 824 C

headlamp trim frame, D - 04.02.2013>>

13

3W3 807 823 E

headlamp trim frame

13

3W3 807 824 F

headlamp trim frame

14

3W3 807 833 C

headlamp trim frame, D - 04.02.2013>>

14

3W3 807 834 C

headlamp trim frame, D - 04.02.2013>>

14

3W3 807 833 E

headlamp trim frame

14

3W3 807 834 F

headlamp trim frame

16

3W3 864 422 A

sound baffle, D - 23.04.2012>> - 26.05.2014

17

3W3 864 539 A

plastic foam, sound baffle, D - 26.05.2014>>

17

3W3 864 540 A

plastic foam, sound baffle, D - 26.05.2014>>

18

N 903 350 06

clamping washer, D - 07.03.2016>>

19

3W0 823 319

insert, anti-corrosion materials

19

3W0 823 320

insert, anti-corrosion materials

20

3W0 823 445

insert, anti-corrosion materials

21

3W0 823 715 C

insert, anti-corrosion materials

21

3W0 823 716 C

insert, anti-corrosion materials

22

3W8 821 233

bracket, D - 30.04.2012>>
