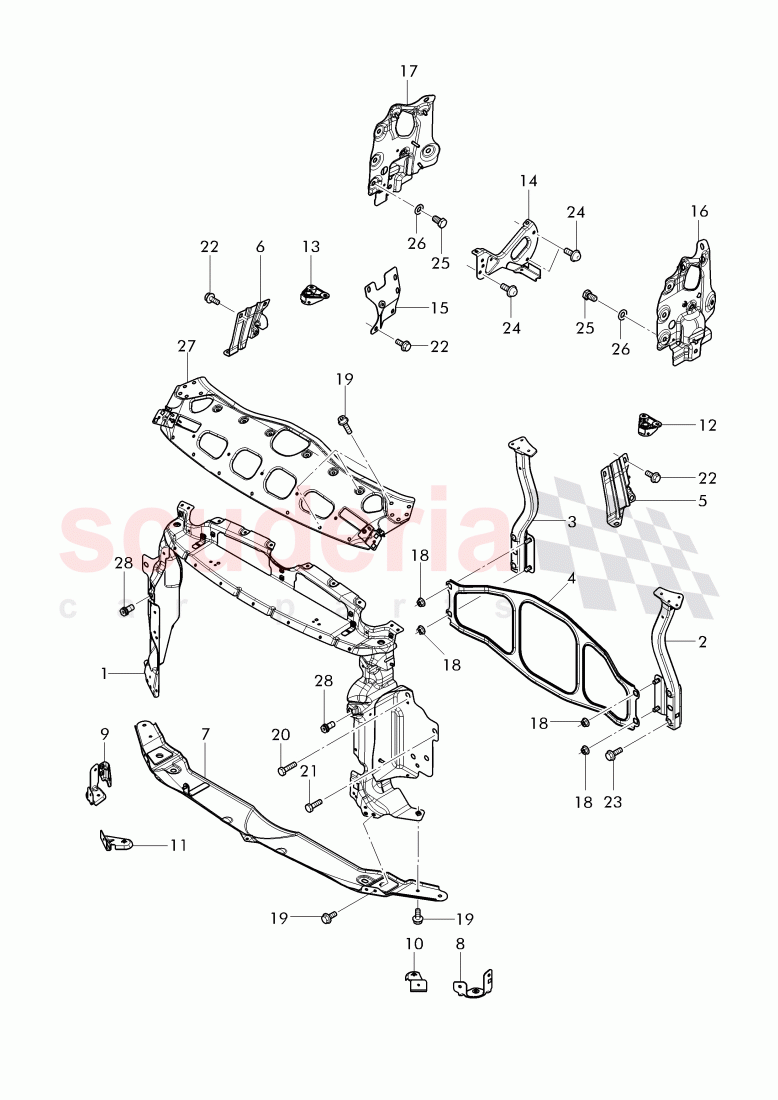

No

Kod

Parça Adı

1

3W0 805 155 AJ

frame, D - MJ 2016>>

2

3W0 804 415 C

filler plate, D - 17.09.2012>>

3

3W0805057J

repair panel D - 28.11.2011>>

4

N90737105

Oval hexagon socket head bolt, D >> - 23.08.2010

8

3W0 199 417

Front end, retainer

9

3W0 199 418

Front end, retainer

10

3W0 199 171 B

Front end section, repair plate -, cross member, push-on type, D - 01.08.2016>>

11

N91095501

hexagon nut, shouldered

12

8H0806221

compensating piece

13

3W0806357A

cross panel

14

3W0806358B

end plate, D - 23.04.2007>>

15

3W1805301B

end plate, D - 07.05.2007>>

15

3W2805301C

end plate, D - 23.04.2007>>

16

N10063205

bolt, hex. hd. with shoulder

17

N91139301

hexagon screw with washer

18

N90958803

hexagon head bolt (combi)

27

N10155906

bolt, hex. hd. with shoulder, D - MJ 2007>>

22

3D2805301

filler plate

23

N90949402

oval hexagon socket head bolt

24

3W8 809 149 C

reinforcement for side panel

25

3W8 809 150 C

reinforcement for side panel

26

N02300313

shouldered hex. nut,, self-locking, D - MJ 2007>>

28

3W0 823 722

plastic foam, (self-adhesive), D - 01.08.2016>>
