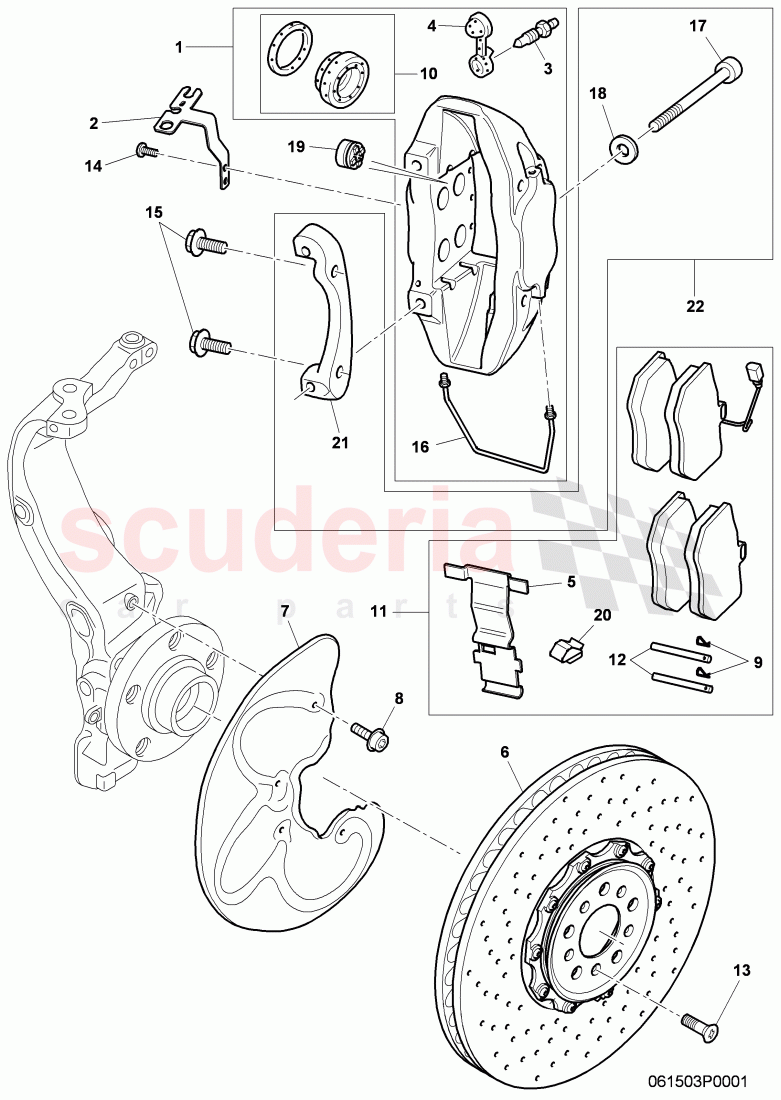

No

Kod

Parça Adı

1

3W0698479D

brake caliper housing D - MJ 2011>>

1

3W0698480D

brake caliper housing D - MJ 2011>>

2

3W0615133

retainer for brake hose

2

3W0615134

retainer for brake hose

3

3W0615273

breather valve

4

3W0615229

dust cap

5

3W0615157

cup expander spring

6

3W0 615 301 T

ceramic brake disc, (vented), D - 19.01.2015>>

6

3W0 615 302 J

ceramic brake disc, (vented), D - 19.01.2015>>

7

4F0615311D

splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>

7

4F0615312D

splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>

8

N90842903

hex socket head collared bolt

9

3W0698307

1 set of securing parts, contains:

10

3W0698471

set of seals for, piston housing, contains:, Square ring, dust seal

11

3W0698151S

1 set of brake pads for disc, brakes, D - 22.08.2011>>

12

3W0615145

retaining pin

13

3W0615146A

guide pin RETAINING SCREW - NOT SHOWN FITTED TO FRONT DISCS TO STOP REAR DISCS BEING FITTED

14

N90995303

oval hexagon socket head bolt

15

N90876802

bolt,hex.hd.with shoul.(combi)

16

3W0611720

brake pipe

16

3W0611721

brake pipe

19

3W0615403A

piston, D >> - 03.10.2011

20

3W0615295

spring

22

3W0698135A

mounting, bracket
