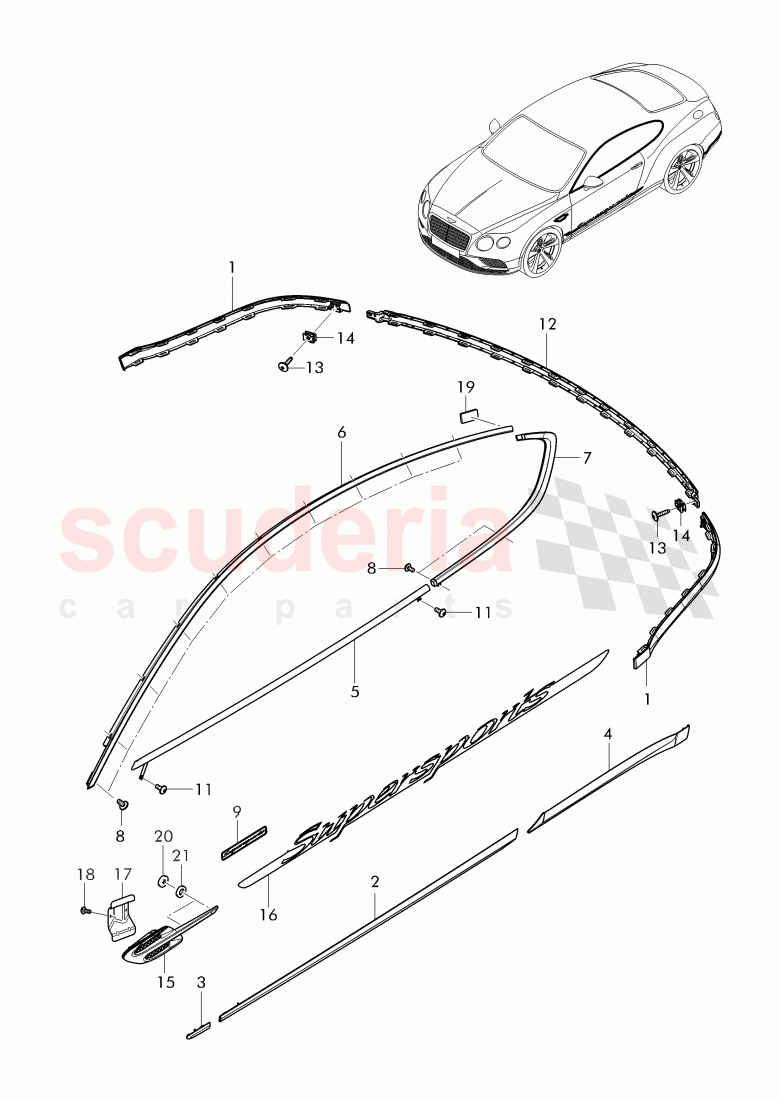

No

Kod

Parça Adı

1

3W3 807 917 C

trim for bumper

1

3W3 807 918 C

trim for bumper

2

3W8 853 515 N

protection trim for door

2

3W8 853 516 N

protection trim for door

3

3W8 853 517 T

trim stripe for fender

3

3W8 853 518 T

trim stripe for fender

4

3W8 853 535 AD

trim stripe for fender

4

3W8 853 536 AD

trim stripe for fender

5

3W8 853 767 AD

trim strip for waistline

5

3W8 853 768 AD

trim strip for waistline

6

3W8 853 835 E

trim for door window frame

6

3W8 853 836 E

trim for door window frame

7

3W8 853 765 H

trim for door window frame

7

3W8 853 766 H

trim for door window frame

8

N10586402

socket head hexagon bolt with cone

9

3W8 853 688 H

Emblem

18

N10653801

hexagonal socket head, screw

12

3W3 807 653 D

trim for bumper

13

N91090701

oval socket head bolt, with hex drive, alternatively, you can use:

14

N90959101

speed nut, included in position:

15

3W3821273C

VENT GRILLE

15

3W3821274C

cooling air grill

16

3W3853750F

trim foil for door

16

3W3853750G

trim foil for door

16

3W3853750H

trim foil for door

16

3W3853750J

trim foil for door

16

3W3853750K

trim foil for door

16

3W3853750L

trim foil for door

17

3W3 821 471 A

bracket

17

3W3 821 472 A

bracket

19

3W0945067

butyl adhesive / sealing cord

20

N91135001

clamping washer, only to be used with:, D - 02.03.2015>>

21

3W0899593

rubber washer, D - 04.07.2011>>
