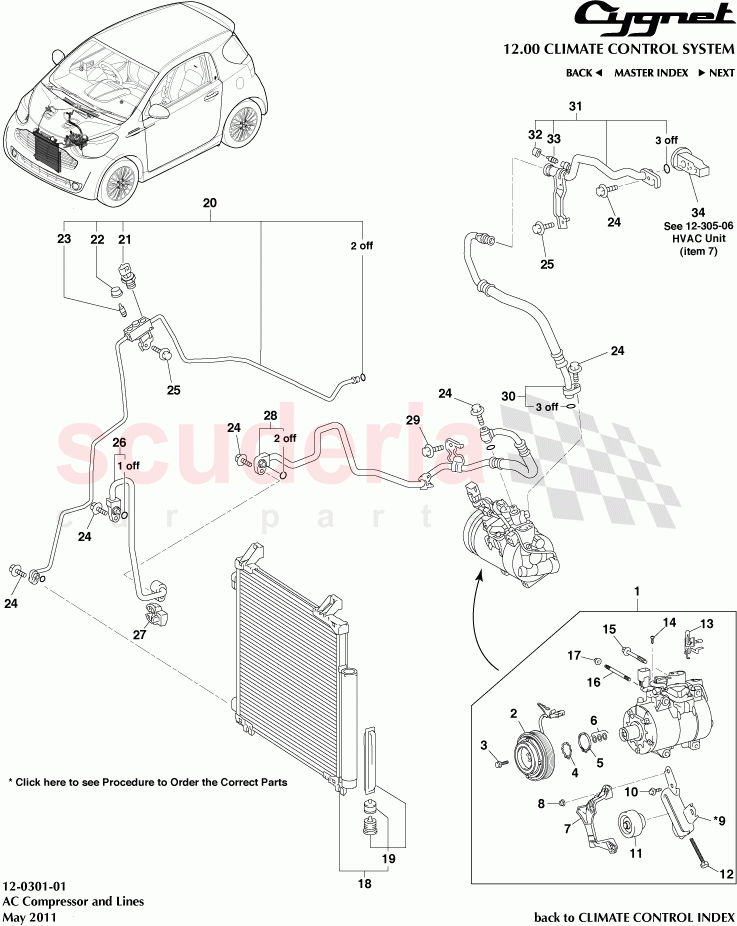

No

Kod

Parça Adı

-

88444-74060

Bracket

-

88703-74031

Hose Sub-Assy, Discharge

-

88515-68010

Valve, Cooler Expansion

1

88320-74030

Compressor Assy, Cooler

2

88410-74030

Clutch Assy, Magnet

3

90099-04349

Bolt, Washer

4

90099-07063

Snap Ring

5

90099-07114

Snap Ring

6

88335-14020

Washer, Magnet Clutch

7

88891-74030

Cover, Cooler

8

94151-80600

Nut

9

88444-74030

Bracket

10

91671-80816

Bolt, Flange

11

88440-74010

Pulley Assy

12

88664-74010

Bolt, Idler

13

88688-74050

Bracket, Cooler Compressor

14

93319-15008

Screw, W/Washer

15

90119-08C78

Bolt, W/Washer

16

90126-08061

Stud, Hexalobular

17

94151-80800

Nut, Transmission Control Cable

18

88460-74010

Condenser Assy, Cooler

19

88474-17010

Dryer, Cooler

20

88710-74030

Tube Assy, Air Conditioner

21

88719-33020

Sensor, Air Conditioner Pressure

22

88375-30280

Cap, Service Valve, No.2

33

88374-30010

Valve, Service, No.2

24

90105-W0033

Bolt, Flange

25

91551-A0618

Bolt, Flange

26

88715-74010

Pipe, Cooler Refrigerant Discharge

27

88718-74010

Clamp, Piping

28

88703-74030

Hose Sub-Assy, Discharge

29

90119-W0030

Bolt, with Washer

30

88704-74030

Hose Sub-Assy, Suction

31

88707-74030

Pipe Sub-Assy, Suction

32

88375-30290

Cap, Service Valve, No.1

34

88515-74010

Valve, Cooler Expansion
