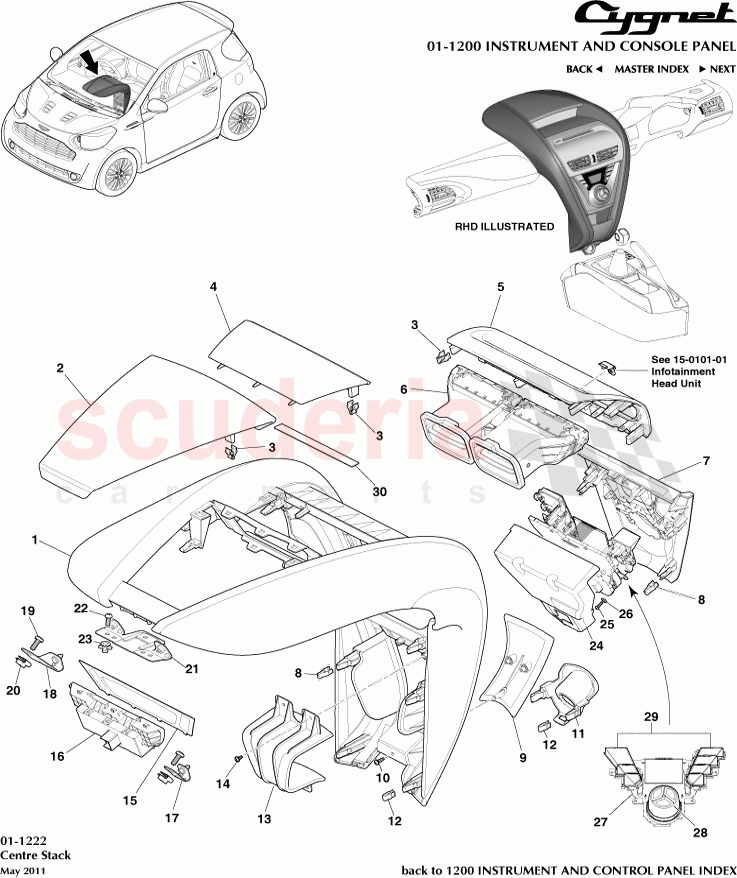

Aston Martin Yedek Parça - Cygnet - Centre Stack
Parça Kodları
No
Kod
Parça Adı
-
AY2Y-045N42-BCW
Fascia Surround Trim Assy, Centre Stack LHD
-
AY2Y-044M00-CA
Fascia Upper Assy, Centre Stack, GRAPHITE
-
AY2Y-018B40-BB
Bezel, Centre Vent, DARK CHROME
-
AY2Y-018B40-DB
Bezel, Centre Vent, PIANO BLACK
-
AY2Y-018B40-EB
Bezel, Centre Vent, IRIDIUM
-
AY2Y-044J44-CB
Fascia Lower Assy, Centre Stack, GRAPHITE
-
AY2Y-044J44-DB
Fascia Lower Assy, Centre Stack, PIANO BLACK
-
83950-74030
Lamp Assy, Telltale, LHD
1
AY2Y-045N42-ACW
Fascia Surround Trim Assy, Centre Stack RHD
2
AY2Y-10862-CCW
Screen Hood Assy, Centre
3
702520-PK
Clip 8.5x16x1.7 Trim Push In Steel Pack of 20
4
AY2Y-044M00-DA
Fascia Upper Assy, Centre Stack, PIANO BLACK
5
AY2Y-018B40-AB
Bezel, Centre Vent, SATIN
6
AY2Y-046B32-AA
Register Assy, Air
7
AY2Y-045L70-AB
Fascia Lower Assy, Centre Stack
8
90467-10203
Clip, Console ED99
9
AY2Y-F04608-ACW
Pane Assy, Centre Lower
10
701447
Screw, M4 x 12, Pan Head, Torx Screw
11
AY2Y-15052-BB
Panel Assy, Centre Lower 12 Volt
12
90468-05135
Clip, White
13
AY2Y-7863-AAW
Panel, Trinket Tray Assy
14
703170
SCREW 4x8 PAN T/H CHROME FREE
15
AY2Y-10E982-AB
Screen, Information Cover
16
83950-74020
Lamp Assy, Telltale, Type A
17
AY2Y-8842-AB
Bracket Assy, CD Unit Fixing LH
18
AY2Y-8843-AB
Bracket Assy, CD Unit Fixing RH
19
91671-80616
Bolt, M6 x 16mm Torx
20
90183-05103
Nut, Edge M6
21
AY2Y-10B761-AA
Fixing Assy, Top Mount Centre Stack
22
707142
SCREW-M5 x 12
23
4G43-N806103-AA
TEXTRON NUT M5 X 0.8 ROUND CLINCH
24
AY2Y-19E924-AE
Cover, HVAC PCB
25
90094-90418
Screw
26
WA104002
Washer
27
55935-74010
Centre Cluster Module
28
55905-74010
Knob, Heater Control
29
55905-74020
Knob, Heater Control No.2
30
4G43-C47775-AA
Adhesive Foam Strip
