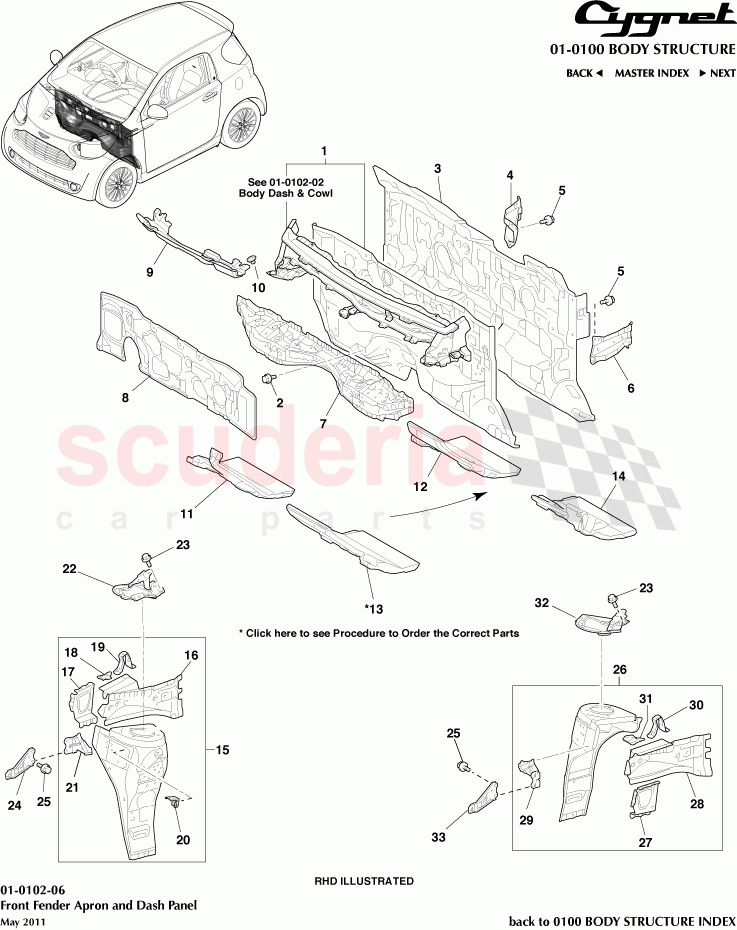

No

Kod

Parça Adı

-

55101-74040

Panel Sub-Assy, Dash, RHD, AUTO

-

55101-74011

Panel Sub-Assy, Dash, LHD, MAN

-

55101-74020

Panel Sub-Assy, Dash, LHD, AUTO

-

55210-74012-B0

Insulator Assy, Dash Panel, LHD

-

55223-74020

Insulator, Dash Panel, Outer, LHD

-

55787-74010

Insulator, Cowl Top Panel, No.1, LHD

-

55214-74032

Pad, Dash Panel Insulator, No.2, RHD, MAN

-

55214-74021

Pad, Dash Panel Insulator, No.2, RHD, AUTO

-

55214-74022

Pad, Dash Panel Insulator, No.2, RHD, AUTO

1

55101-74030

Panel Sub-Assy, Dash, RHD, MAN

2

91671-A0816

Bolt, Flange, CVFC

3

55210-74020-B0

Insulator Assy, Dash Panel, RHD

4

55137-74011

Brace, Dash to Frame RH

5

91515-80818

Bolt, Flange

6

55138-74010

Brace, Dash to Frame LH

7

57103-74011

Cross Member, Front

8

55223-74010

Insulator, Dash Panel, Outer, RHD

9

55787-74020

Insulator, Cowl Top Panel, No.1, RHD

10

90467-06188

Clip

11

55215-74020

Pad, Dash Panel Insulator, No.3, RHD

12

55214-74012

Pad, Dash Panel Insulator, No.2, LHD

13

55214-74031

Pad, Dash Panel Insulator, No.2, RHD, MAN

14

55215-74010

Pad, Dash Panel Insulator, No.3, LHD

15

53701-74010

Apron Sub-Assy, Front Fender RH

16

57155-74010

Reinforcement, Front Side Member, No.3 RH

17

53737-74010

Plate, Front Apron to Cowl Side Member RH

18

53815-74010

Reinforcement, Front Fender Apron, Front RH

19

53717-74010

Plate, Fender Apron

20

53743-74010

Gusset, Fender Apron RH

21

55168-74010

Bracket, Front Fender Mounting RH

22

53707-74010

Extension, Front Fender RH

23

91671-80816

Bolt, Flange

24

53713-74010

Extension, Front Fender Apron, Front RH

25

90901-05005

Bolt, Washer Based

26

53702-74010

Apron Sub-Assy, Front Fender LH

27

53738-74010

Plate, Front Apron to Cowl Side Member LH

28

57156-74010

Reinforcement, Front Side Member, No.3 LH

29

55169-74010

Bracket, Front Fender Mounting LH

30

53718-74010

Plate, Fender Apron LH

31

53816-74010

Reinforcement, Front Fender Apron, Front LH

32

53708-74010

Extension, Front Fender LH

33

53714-74010

Extension, Front Fender Apron, Front LH
