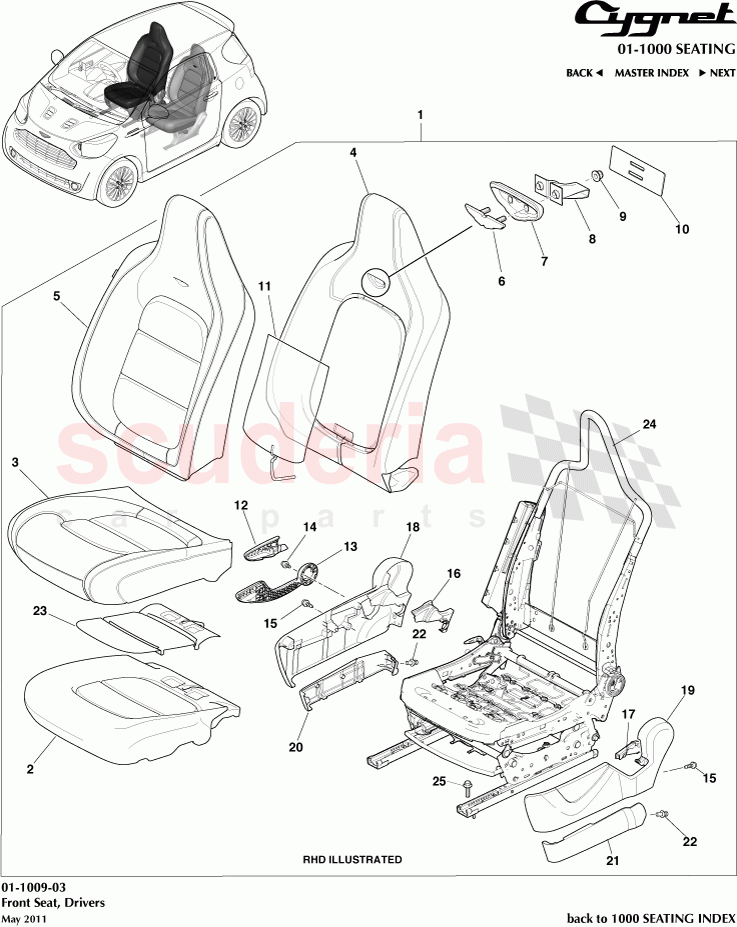

No

Kod

Parça Adı

-

AY2Y-60009-ABW

Seat Assy, Front Driver, LHD

-

AY2Y-9515-AC

Foam Assy, Front Seat Cushion, Driver, RHD

-

AY2Y-62901-ABW

Cover Assy, Front Seat Cushion, Driver, LHD

-

AY2Y-4D9514-AD

Foam Assy, Front Seat Squab, RH

-

AY2Y-64572-ABW

Cover Assy, Front Seat Squab, RH

6

AY2Y-001B46-CD

WING BADGE

-

72526-47010-C0

Handle, Reclining Adjuster Release, Driver, LHD

-

72495-74010-C0

Handle, Vertical Adjusting, Driver, LHD

-

71876-74020-C0

Cover, Reclining Adjuster Inside, LH, LHD

-

71875-74020-C0

Cover, Reclining Adjuster Inside, RH, LHD

-

AY2Y-63031-BAW

Valance, Front Seat, Outer, Upper, LH, LHD

-

AY2Y-63032-BAW

Valance, Front Seat, Inner, Upper, LH, LHD

-

71874-74010-C0

Valance, Front Seat, Outer, Lower, LH, LHD

-

71873-74020-C0

Valance, Front Seat, Inner, Lower, LH, LHD

-

87510-74060

Heater Assy, Cushion, 6 Way, LH, LHD

-

72020-74031

Adjuster Assy, Front Seat, LH, LHD

1

AY2Y-60009-BBW

Seat Assy, Front Driver, RHD

2

AY2Y-9516-AC

Foam Assy, Front Seat Cushion, Driver, LHD

3

AY2Y-62900-ABW

Cover Assy, Front Seat Cushion, Driver, RHD

4

AY2Y-4D9513-AD

Foam Assy, Front Seat Squab, LH

5

AY2Y-64573-AAW

Cover Assy, Front Seat Squab, LH

7

AY2Y-8972-AA

Moulding, Badge Retention, Front Seat Squab

8

AY2Y-19H321-AA

Elastic Strap

9

703165

NUT M5 HEX FLG PLAS CHROME FREE

10

AY2Y-407A78-AA

Backing Plate, Wing Badge

11

87530-74040

Heater Assembly, Driver Squab

12

72525-47010-C0

Handle, Reclining Adjuster Release, Driver, RHD

13

72494-74010-C0

Handle, Vertical Adjusting, Driver, RHD

14

93269-55010

Screw

15

72476-74010

Screw, Front Seat

16

71875-74010-C0

Cover, Reclining Adjuster Inside, RH, RHD

17

71876-74010-C0

Cover, Reclining Adjuster Inside, LH, RHD

18

AY2Y-63031-AAW

Valance, Front Seat, Outer, Upper, RH, RHD

19

AY2Y-63032-AAW

Valance, Front Seat, Inner, Upper, RH, RHD

20

71873-74010-C0

Valance, Front Seat, Outer, Lower, RH, RHD

21

71874-74020-C0

Valance, Front Seat, Inner, Lower, RH, RHD

22

90467-09087-22

Clip, Front Seat Side Shield

23

87510-74040

Heater Assy, Cushion, 6 Way, RH, RHD

24

72010-74032

Adjuster Assy, Front Seat, RH, RHD

25

72702-52030

Bolt, Seat
