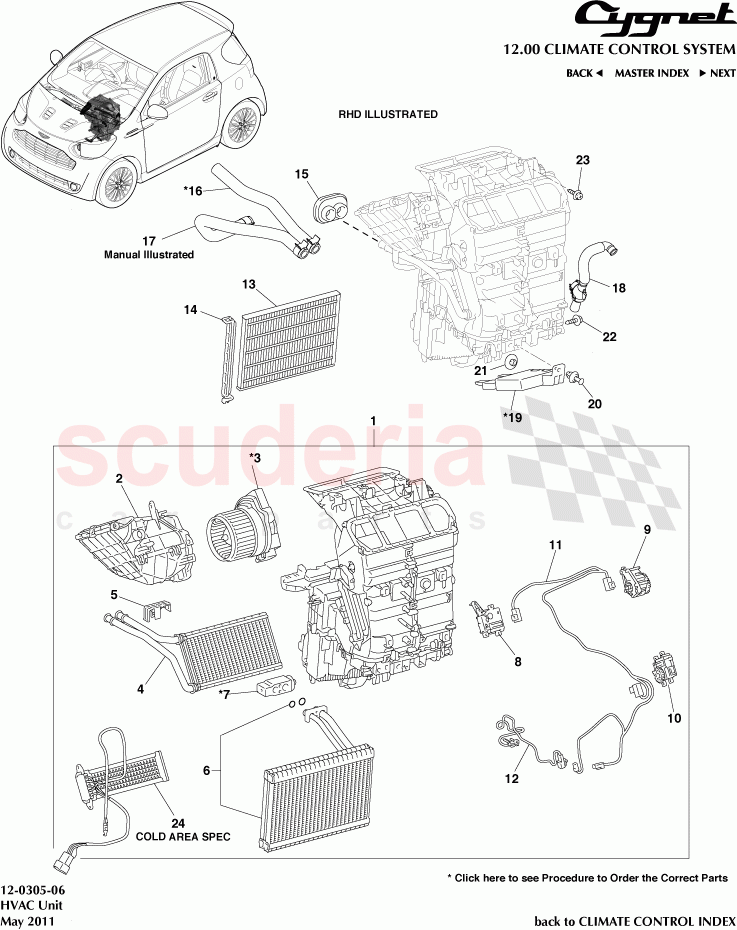

No

Kod

Parça Adı

-

87010-74080

Unit Assy, Air Conditioner, LHD

-

87010-74100

Unit Assy, Air Conditioner, COLD AREA SPEC, LHD

-

87200-74040

Accessory Assy, Heater, LHD

-

87103-74040

Motor Sub-Assy, Blower W/ Fan, LHD

-

87103-74041

Motor Sub-Assy, Blower W/ Fan, LHD

-

88515-68010

Valve, Cooler Expansion

-

87106-74040

Servo Sub-Assy, Damper, No.1, LHD

-

82212-74020

Harness Assy, Air Conditioner, LHD

-

87245-74150

Hose, Heater Water, Outlet, MAN

16

87245-74101

Hose, Heater Water, Outlet, AUTO

-

87245-74091

Hose, Heater Water, Inlet, AUTO

-

88650-74032

Amplifier Assy, Air Conditioner-Front Air Con-AUTO

-

88650-74041

Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC

-

88650-74042

Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC

1

87010-74030

Unit Assy, Air Conditioner, RHD

2

87200-74020

Accessory Assy, Heater, RHD

3

87103-74021

Motor Sub-Assy, Blower W/ Fan, RHD

4

87107-74010

Unit Sub-Assy, Heater Radiator

5

87237-74010

Cover, Cooler No.1

6

88501-74010

Evaporator Sub-Assy, Cooler, No.1

7

88515-74010

Valve, Cooler Expansion

8

87106-74030

Servo Sub-Assy, Damper, No.1, RHD

9

87106-74020

Servo Sub-Assy, Damper, (for mode)

10

87106-74010

Servo Sub-Assy, Damper, (for airmix)

11

82212-74010

Harness Assy, Air Conditioner, RHD

12

88620-74010

Thermistor, Cooler, No.1

13

88568-YZZ01

AIR FILTER

14

88548-74010

Case, Air Filter

15

87128-74010

Grommet, Heater

17

87245-74110

Hose, Heater Water, Inlet, MAN

18

88505-74011

Duct Sub-Assy, Air Conditioner

19

88650-74031

Amplifier Assy, Air Conditioner-Front Air Con-AUTO

20

90467-07214

Clip, Front Fender Liner

21

90179-06282

Nut

22

90159-60383

Screw W/Washer Tapping

23

90159-70003

Screw, W/Washer, RHD

24

87710-74030

Quick Heater Assy, COLD AREA SPEC
