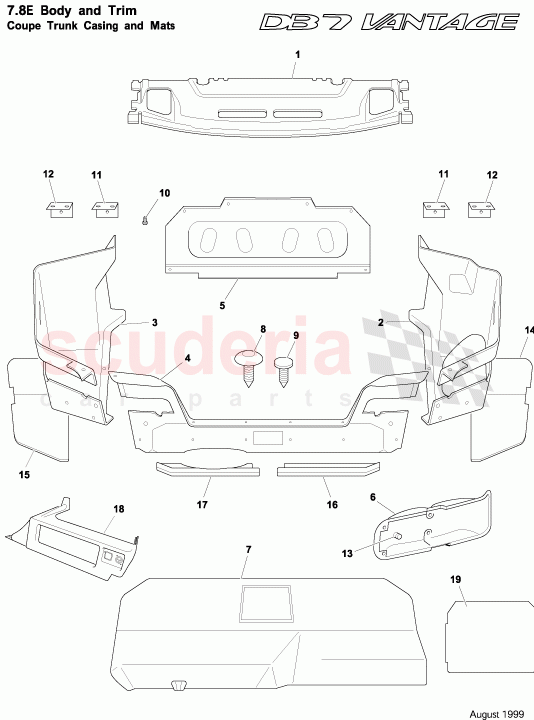

No

Kod

Parça Adı

1

83-111301-AAW

CARPET ASSY - PARCEL SHELF

2

83-111288-AAW

CARPET ASSY - TRUNK SIDE RH

3

83-111289-AAW

CARPET ASSY - TRUNK SIDE LH

4

83-111294-ABW

CARPET ASSY - TRUNK FLOOR REAR

4

83-122459-ABW

CARPET ASSY - TRUNK FLOOR REAR

5

83-123791-AAW

CARPET ASSY-REAR PANEL TRUNK

5

83123528AAW

Carpet assy, trunk rear panel Premium ICE

5

83-123791-ACW

Carpet assy, trunk rear panel Premium ICE

5

83-111298-AAW

CARPET ASSY - REAR PANEL TRUNK

6

83-111300-AAW

TRIM PANEL ASSY - TAIL LAMP RH

6

83-111299-AAW

TRIM PANEL ASSY - TAIL LAMP LH

7

83-123509-AAW

COVER ASSY-SPARE WHEEL WELL

7

83-123841-AA

LOAD FLOOR - BOOT

8

85-82503-PK

FIRTREE FASTENER(20)

9

83-110940-AA

FIRTREE BUTTON

10

697320

SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8

11

83-82618

BRACKET - PNL SUPPT INNER

12

83-82619

BRACKET - PNL SUPPT OUTER

13

697552

RETAINER M5

14

85-82613

UNDERLAY - CARPET RH

15

85-82614

Underlay, carpet - LH

16

85-82615

UNDERLAY - CARPET REAR RH

16

85-82616

UNDERLAY - CARPET REAR LH

17

37-123985-AA

H/LAMP APERTURE FOAM

17

83-122457-AA

UNDERLAY PACKER - REAR CARPET LH

18

80-124251-AA

CD AUTOCHANGER COVER ASSY

18

80124084AA

Cover, CD autochanger

19

83150210AAW

Carpet assy boot panel, rear

19

83150207AAW

Carpet assy boot floor, rear

19

83-150208-AAW

RH SIDE CARPET BOOT ASSY

19

83-150209-AAW

LH SIDE CARPET BOOT ASSY

19

83150162AA

Underlay, rear carpet, RH

19

83150163AA

Underlay, rear carpet, LH

19

697520

RETAINER WASHER-DZUS

19

83-150267-AAW

Boot floor assy

19

83150238AA

Boot liner mat

19

699914

DZUS FASTENER 376 126 191 (26MM LONG)

19

83-150211-AAW

Leather lamp cover assy, rear

19

34-84293

PAD-LOCATION

19

697658

SCREW

19

83-123927-AA

BOOT LINER - MAT 450X540X2MM

19

AA608045

Screw, flg, No 8 x 1/2"

19

697669

FASTENER RECEPTACLE DZUS 336 200 190

19

83123514AA

Catch, fastener

19

699216

RIVET-PLASTIC EXPANSION
