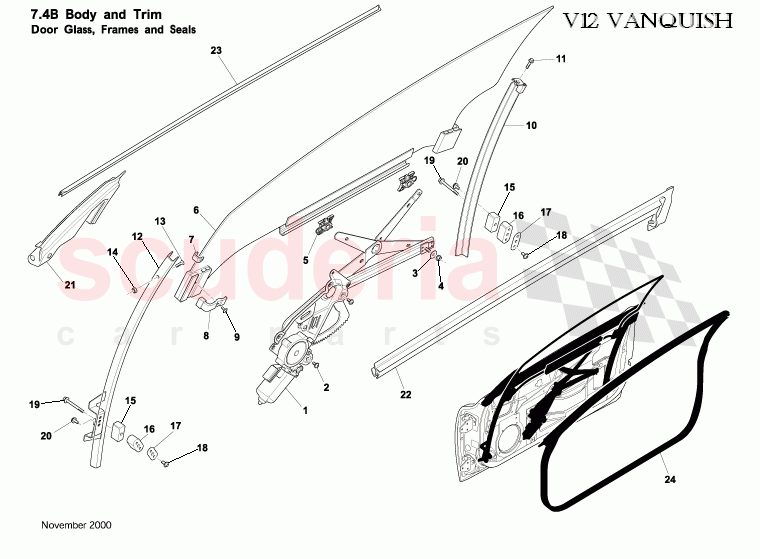

No

Kod

Parça Adı

1

76-140466-AA

ASSEMBLY DOOR GLASS RH

1

76-140467-AA

Glass assy, door - LH

1

76-86264

DOOR GLASS ASSY-RH

1

76-86265

DOOR GLASS ASSY-LH

1

76-82225

GLASS ASSY DOOR RH 500 x 980 x 3mm

1

76-82226

GLASS ASSY DOOR LH 500 x 980 x 3mm

2

91689

REGULATOR ASSY DR-RH

2

91690

REGULATOR ASSY DR-LH

3

697635

SCREW

4

697500

WASHER S/PROOF EXT

5

697286

Washer M6 Large OD

20

697115

SCREW M6 x 12 HEX HEAD GRD 8.8

21

703128

WASHER LOCK SINGLE COIL M6 CHROME FREE

8

65-82232

BRACKET ATTACH DOOR GLASS RH

8

65-82233

BRACKET ATTACH DOOR GLASS LH

8

65-123450-AA

BRACKET ATTACH DOOR GLASS RH

8

65-123451-AA

BRACKET ATTACH DOOR GLASS LH

8

65-82234

SHIM-DOOR GLASS ATTACH REAR

9

697455

NUT M6 LOCKING

10

697634

SCREW M6 x 14 UNDERHEAD LOCKING

11

6582230

Guide assy, door glass - RH

11

6582231

Guide assy, door glass - LH

12

63-123448-AA

GUIDE ASSY REAR DOOR GLASS RH

12

63-123449-AA

GUIDE ASSY REAR DOOR GLASS LH

12

697512

SCREW M5 x 20 HEX HD 8.8

13

699082

Screw, M6 X 10 btn hd

14

699236

PAN HEAD SCREW TORX DRIVE

15

697118

SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE

15

693432

SCREW M5 x 25 HEX

16

697457

NUT M5 HEX

16

705623

GREASE-RED

17

65-124531-AA

Bracket, glass stop

17

76-82639

SPACER BUTTON

17

698689

ALPHABOND 1004

18

65-140338-AA

CHEATER CHANNEL GUIDE RH

18

65-140339-AA

CHEATER CHANNEL GUIDE LH

18

65-140560-AA

DOOR MIRROR CHEATER RH

18

65-140561-AA

DOOR MIRROR CHEATER LH

18

65-124716-AA

CHEATER ASSEMBLY POWERFOLD MIRRORS RH

18

65-124717-AA

CHEATER ASSEMBLY POWERFOLD MIRRORS LH

18

65-121766-AA

CHEATER COMP ASSY RH

18

65-121767-AA

CHEATER COMP ASSY LH

19

65-82241

BRKT ASSY ATTACH LWR CHEATER

20

697114

SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8

22

697123

WASHER 1/4 PLAIN FORM A

23

65-121760-AA

FINISHER OUTER CHEATER RH

23

65-121761-AA

FINISHER CHEATER OUTER - LH

24

65-140334-AA

CHEATER INNER FINISHER RH

24

65-140335-AA

CHEATER INNER FINISHER LH

24

65-123084-AA

FINISHER INNER CHEATER RH

24

65-123085-AA

FINISHER INNER CHEATER LH

25

65-83356

KEEPER PLATE - DOOR CHEATER

26

702840

Nut & Washer, M6, Hex Flange Head

27

77-124148-BA

WAIST SEAL RH CONV

27

77-124147-BA

WAIST SEAL LH CONV

28

697464

ADHESIVE-SIKAFLEX260

28

693155

Primer, Sikaflex 205

28

697028

ALPHA SEAL 132

28

695326

LOCTITE 406 ADHESIVE

28

697462

JOINT SEALER (127)

28

77-90215-PK

RIVET-W/RAIL OTR(20)

29

65-124037-AA

CHEATER FOAM INSERT 1

29

65-124038-AA

CHEATER FOAM INSERT 2

30

65-82250

BUSH FRICTION

31

65140548AA

Seal, cheater base - RH

31

65140549AA

Seal, cheater base - LH

31

77-84061

SEAL ASSY CHEATER CHANNEL RH

31

77-84062

SEAL ASSY CHEATER CHANNEL LH

31

65-121786-AA

SEAL CHEATER BASE RH

31

65-121787-AA

SEAL CHEATER BASE LH
