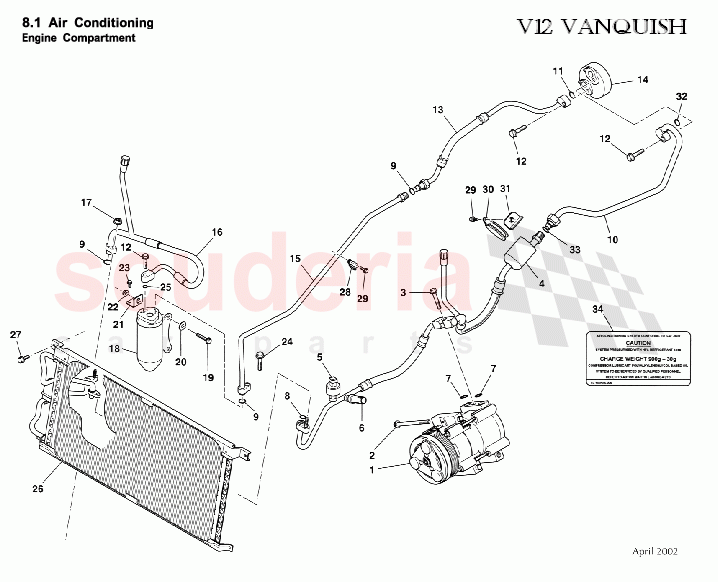

No

Kod

Parça Adı

0

5R13-19D629-AA

A/C COMPRESSOR & CLUTCH ASSY

2

697800

BOLT M8 x1.25x 113.5 HEX FLG PILOT

3

89-120069-AB

Pipe & Hose Assy Evaporator to Condenser

5

700554

O RING

6

700334-PK

O RING-PACK OF 5

7

89-120068-AC

PIPE - EVAPORATOR TO CONDENSER

8

89-82079

ASSY VALVE EXPANSION

9

89-82080

CLAMP PLATE

10

HY53-E804349-AA

M6 X 14 SCREW HEX HD

11

700263

O RING

12

89-120465-AC

PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR

13

700555

O RING

14

89-85238

RECEIVER DRIER

15

699125

SCREW M6 x 30 HEX 8.8

16

697122

NUT M6 NYLOC

17

699083

SCREW M6 x 30 FLG HD

18

699833

O RING 7.66mm ID x 1.78mm SECTION

19

89-120464-AB

PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER

20

699084

SCREW M6 x 18 FLG HD

21

699834

O RING

22

695526

NUT M6 HEX FLG GRD 8 ZINC PLATE

23

699830

O RING-A/C HOSE 10.82IDx1.78 H7T39

24

89-85240

A/C PRESSURE SWITCH

24

37-90075

Cable Tie, 290mm

25

89-85239

A/C CONDENSER

26

697119

SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8

27

37-81862

CLIP HARN STUD MOUNT

28

97-123155-AA

LABEL - AIR CON INFO

29

89-82083

DEFLECTOR SHIELD

29

699906

Clip, double C

29

89-111601-AB

PAG OIL DYE
