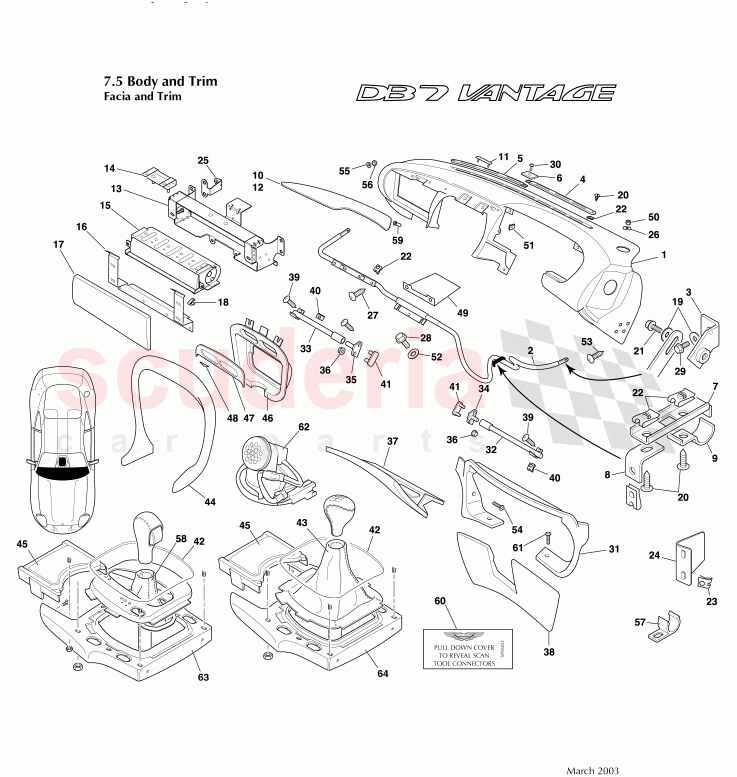

No

Kod

Parça Adı

1

83-83343

PANEL ASSY FRONT TRIMMED RHD

1

83-83345

PANEL ASSY FRONT TRIMMED LHD

1

69-121512-AAW

ASSY FACIA COMPLETE RHD EURO

1

69-121513-AAW

ASSY FACIA COMPLETE LHD EURO

2

69-82872

TUBE COMP ASSY FACIA SUPRT RHD

2

69-83872

TUBE ASSY FACIA SUPPORT LHD

2

69-82875

BRACKET ASSY FACIA SUPPORT RH

3

69-82876

BRACKET ASSY FACIA SUPPORT LH

4

69-124168-AB

WINDSCREEN DEMIST FINISHER RH (SOFT FEEL)

5

69-124167-AB

WINDSCREEN DEMIST FINISHER LH (SOFT FEEL)

6

6983879

Cover plate, demist finisher joint

6

69-124169-AB

COVER PLATE DEMIST FINISHER (SOFT FEEL)

7

69-82879

BRACKET FACIA SUPPT DRIVER

8

69-82880

BRACKET FACIA DRIVER

9

69-83178

CLAMP BRACKET

10

87121532AA

Facia veneer panel assy

10

87-121533-AA

Facia veneer panel assy

10

80-123509-AA

NUT - PLASTIC M4

11

97123872AA

V.I.N. plate, Australian compliance plate

11

97-84089

V.I.N. plate

11

697579

RIVET CSK HD ALLY 3.2DIA x 7.9

12

80-123975-AA

BRACKET - VENEER FIXING

59

80-123362-AA-PK

FRICTION BUSH-BLK(5)

13

69-83909

CARRIER ASY PASSENGR AIRBAG RHD

13

69-83910

CARRIER ASY PASSENGR AIRBAG LHD

14

69-83912

ASSY MTG BRACKET AIR BAG ECU ZP

15

69-85518

AIRBAG MODULE- PASSENGER

16

69-83907

MOUNTING FRAME DEPLOYMENT DOOR RHD

16

69-83908

MOUNTING FRAME DEPLOYMENT DOOR LHD

17

83-83913

DOOR DEPLOY ASSY RHD

17

83-83914

DOOR DEPLOYMENT ASSY LHD

18

69-83906

FASTENER-DEPLOYMENT DOOR- AIRBAG

19

697134

WASHER M8 X 25 X 1.8 PLAIN ZINC YELL

20

697585

SCREW No10 x 25 CSK HD AB S.T.

29

697133

SCREW M8 x 20 HEX HEAD GRD 8.8

40

697587

NUT SPRING U TYPE 10x(0.9-2.0)

23

697588

NUT SPRING U TYPE 8x(0.81-0.96)

24

69-82898

BRACKET-FACIA END LH

24

69-82899

BRACKET-FACIA END RH

25

25-80991

ASSY-AIRBAG STUD PLATE

26

697514

WASHER OVAL 1 x 1/2 x 7/32

27

700333

SCREW No10x19 S.T. FLANGED AB BLACK

28

697620

SCREW 10-32 UNF x3/8 PAN HEAD

30

697554

FIR TREE BUTTON

31

69121528AA

Finisher assy, instrument pack

31

83-124059-AB

ASSY FINISHER INSTRUMENT PACK (SOFT FEEL)

32

6984573

Tube assy, lower - RH

33

69-84574

ASSY-LWR TUBE BOLSTER LH

34

69-82904

ASSY PIVOT - KNEE BOLSTER RH

35

69-82905

ASSY PIVOT - KNEE BOLSTER LH

36

702295

Nut, M5, Hex Flange Head

37

83-83812

TRIMMED ASSY-BOLSTER -PASSENGER LHD

37

83-111898-AAW

ASSY TRIM PASS UNDER SCUTTLE RHD

37

83-111899-AAW

ASSY TRIM PASS UNDER SCUTTLE LHD

38

83-83674

UNDERSCUTTLE COMP ASSY TRIMMED DRV LHD

38

83-83810

ASSY COMP BOLSTER DRIVER LHD TRIMMED

38

83-83673

UNDERSCUTTLE COMP ASSY TRIMMED DRV RHD

39

697594

SCREW No10 x 5/8 PAN HD AB S.T.

41

69-82914

ASSY STUD PLATE

42

87122984AA

Finisher, top panel, veneered - auto/touchtronic

42

87122985AA

Finisher, top panel, veneered -auto/touchtronic

42

87-122980-AA

VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING

42

87-85849

VENEER-AIR VENT

42

87122986AA

Finisher, top panel, veneered - manual

42

87122987AA

Finisher, top panel, veneered - manual

42

87-122982-AA

VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING

42

87-122983-AA

VENEER - FINISHER TOP PANEL LHD -REFERENCE DRAWING

43

80-121198-AAW

GEARSHIFT TRIM ASSY - MANUAL

44

83-82921

CONSOLE SURROUND COMP ASSY

45

697123

WASHER 1/4 PLAIN FORM A

45

699117

WASHER PLAIN

45

80-121189-AA

ASHTRAY COMP ASSY

46

80121195AA

Panel assy, aircon surround

46

83-124094-AB

FRONT PANEL ASSEMBLY AIRCON SURROUND (SOFT FEEL)

47

87-121423-AA

VENEER AIR VENT SURROUND -REF DRG

48

80-90018

CONSOLE BADGE- ASTON MARTIN

48

699853

BALLOU SCREW BACK

49

89-82083

DEFLECTOR SHIELD

56

697457

NUT M5 HEX

51

697621

SPRING NUT

52

697622

WASHER .20 PLAIN .20 X .75 OD X .04 T

54

699109

SCREW No8 x 19mm RSD C/SUNK HD

55

697286

Washer M6 Large OD

57

37-83291

Clip, knee bolster pivot

58

80-123553-AAW

GAITER ASSY -AUTO TOUCH TRONIC

58

80-121358-AAW

GAITER ASSY - AUTO

60

9784614

Label, scan tool connectors

61

697624

SCREW No8 x 25 RSD CSK HEAD BLACK

62

89-72290

IN CAR SENSOR

63

80-123552-AB

SUBSTRATE CONSOLE VENEER - TOUCHTRONIC

63

80-121194-AB

SUBSTRATE - CONSOLE VENEER (AUTO)

64

80-121422-AB

SUBSTRATE - CONSOLE VENEER (MAN)
