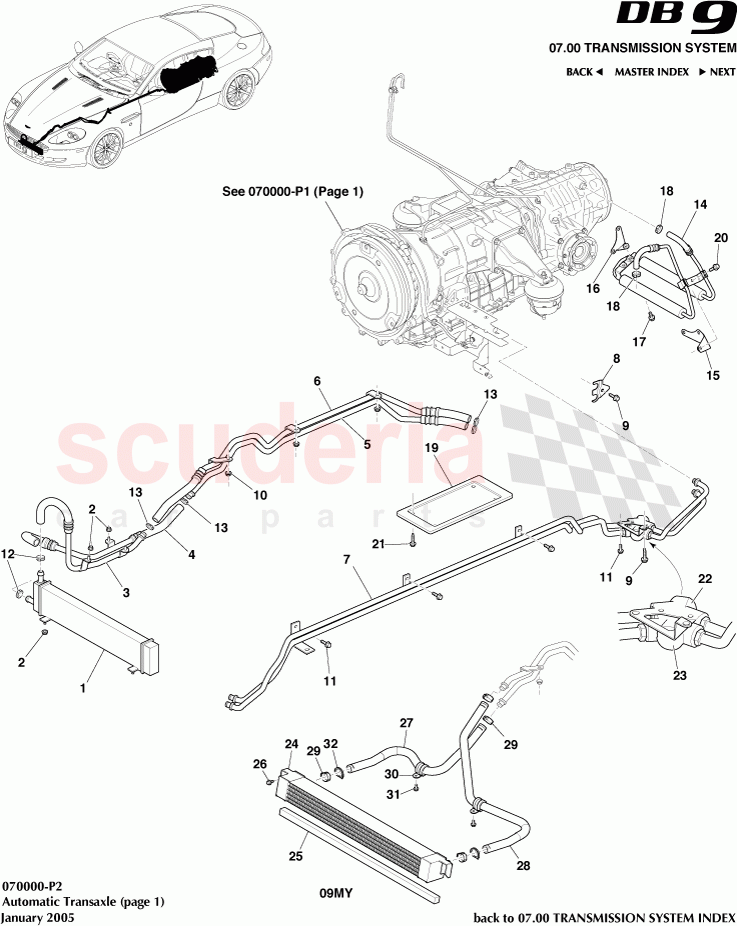

No

Kod

Parça Adı

6

4G43-31-10938

OIL PIPES & CLR KIT USE UP TO VIN 05542

0

4G43-31-11060

OIL PIPE KIT-WITHOUT OIL COOLER (USE FROM VIN 05543 to 09783)

1

7G43-445396-AA

OIL COOLER - AUTO TRANS

4

7G43-7F120-BA

PIPE AIR/OIL COOLER INLET

5

9G43-7W093-BA

PIPE ASSEMBLY ENGINE BAY OUTLET

6

7G43-7W093-AA

PIPE ENGINE BAY

7

4G43-321363-AC

OIL PIPE ASSEMBLY TRANS

7

9G43-321363-AA

OIL PIPE ASSEMBLY REAR TRANSMISSION

8

2W937B147AC

Clamp plate, Oil cooler pipes

9

703189

BOLT M8x16 HEX FLG CHROME FREE

10

702944

Nut, M6, Hex Flanged Head

11

700606

Screw, M6 x 12, Hex Flange Head

12

699545

HOSE CLAMP OETIKER REF: 025.6 - 706R

13

699765-PK

HOSE CLAMP (5)

14

4G43-7869-AA

COOL AND BRACKET ASSY - TRANS OIL

15

4G43-7B142-AA

BRACKET TRANS OIL COOLER MTG

16

4G43-7B142-BA

BRACKET TRANS OIL COOLER MTG

20

703265

Screw, M6 x 16, Hex Flange Head

18

699547

Clamp, Hose

19

4G43-7C309-CB

PLT ASY - TRANS GR SH OPG CVR

22

4G436A626AA

Bracket, Oil pipe

23

4G43-6L635-AA

Thermostat, Transmission Oil Control

24

9G43-445396-CA

MATRIX OIL COOLER

25

32-85306

Seal, Radiator Upper

30

9G43-7F120-AA

HOSE - AIR/OIL ASSY COOLER OUTLET

28

9G43-7F120-BA

HOSE - AIR/OIL ASSY COOLER INLET

29

9G43-8777-CA

CLAMP HOSE OETIKER 025.5-1008R

32

9G43-7R041-AA

SEAL HOSE TRANS OIL COOLER
