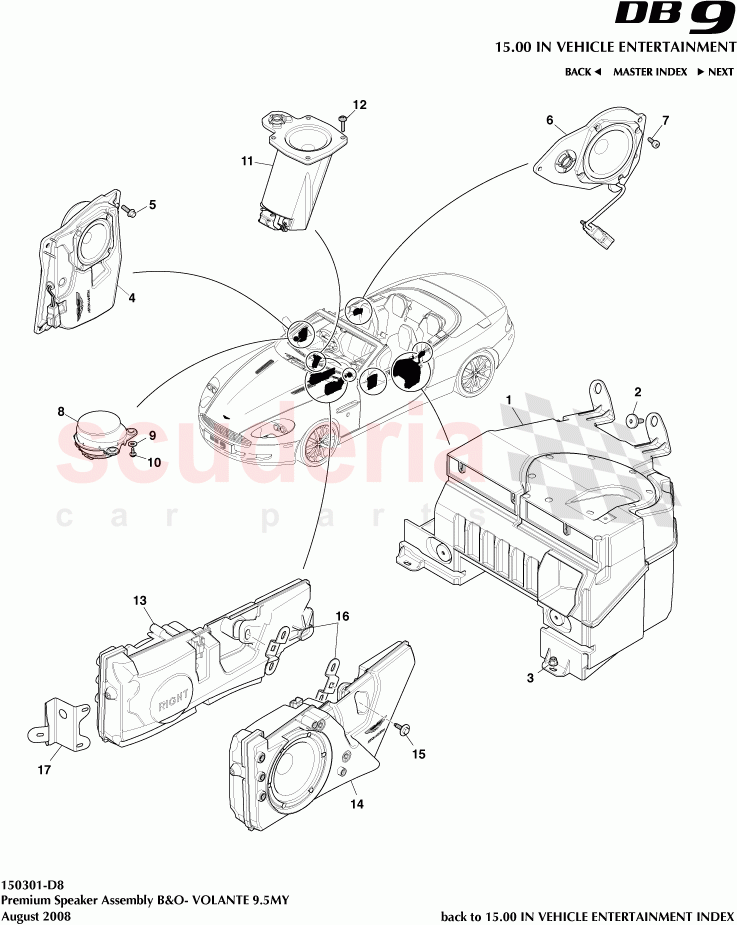

No

Kod

Parça Adı

1

9D33-18C956-AB

DB9 SUB ENCLOSURE

2

6G33-FA0115-AB-PK

Screw and Washer, M6 x 20, Torx Head

3

703164

M6 LOCKNUT FLANGE NY LON CHROM FREE

4

9D33-6696X-BA

Speaker Box, Front Door, RH

4

9D33-6696Y-BA

Speaker Box, Front Door, LH

5

700607

Screw, M6 x 16mm, Hex Flange Head

6

9D33-46684-BA

Speaker, Rear, RH Volante

6

9D33-46685-BA

Speaker, Rear, LH Volante

7

703735

Screw, M5 x 12, Pan Head

8

9D33-18D801-AB

ACOUSTIC LENS TWEETER-BASALT

9

9D33-46662-AA

Washer, 14mm, 43 ID 14 OD 0.8 Thk

10

701441-PK

Screw, 4.2 x 13, Small Washer Head

11

9D33-70451-AB

Speaker Box Assy, Centre

12

703736

Screw Self Tapping, 4.2 x 19, Washer Head

13

9D33-6696X-AC

Speaker Box, Footwell, RH

14

9D33-6696Y-AC

Speaker Box, Footwell, LH

16

9D33-19080-AA

Mounting Bracket, Loudspeaker

17

9D33-2B100-AC

Bracket, Foot Well Speaker Box, RH
