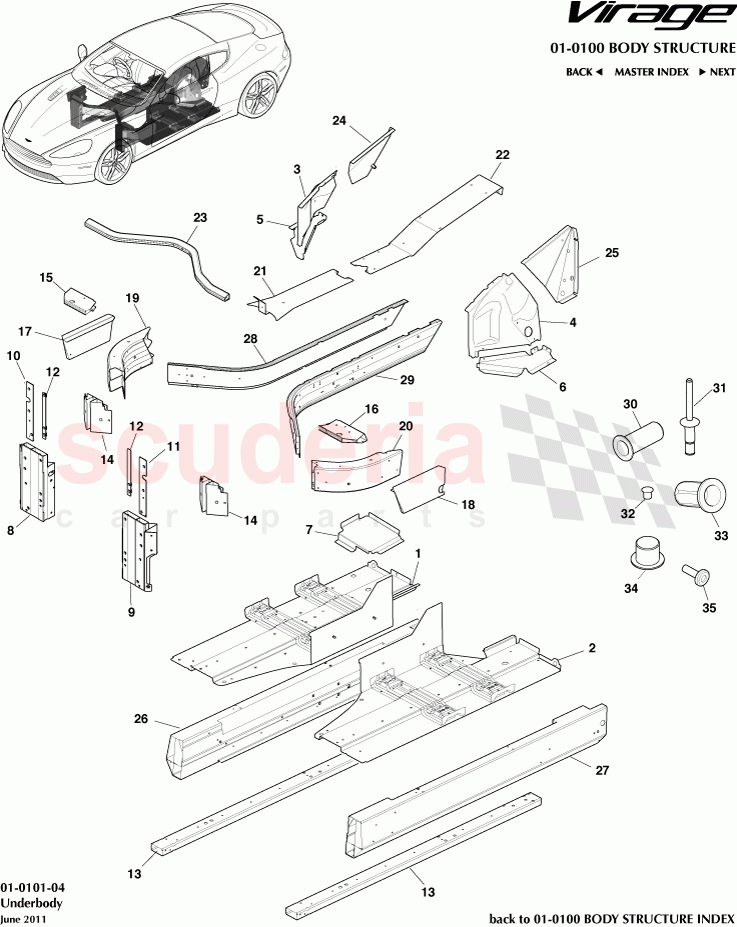

No

Kod

Parça Adı

1

4G43-16-10879S

Panel assy, floor, RH

2

FD33-11141-AC

PANEL FLOOR LH

3

8G43-13058-AB

TUNNEL REAR SIDE RH

4

9G43-13059-AB

TUNNEL REAR SIDE LH

5

8G43-67340-AA

PANEL REAR SEAT HEEL BOARD LOWER RH

6

8G43-67341-GA

PANEL REAR SEAT HEEL BOARD LOWER LH

7

8G43-67342-AA

SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH

8

4G43-20-10876

FRONT SUBFRAME UPRIGHT ASSY RH-DB9

9

4G43-20-10877

FRONT SUBFRAME UPRIGHT ASSY-LH DB9

10

8G43-434K10-AA

NUTPLATE FRONT END MOUNTING OUTER RH M12

11

8G43-434K11-AA

NUTPLATE FRONT END MOUNTING OUTER LH M12

12

8G43-390725-AA

NUT PLATE FRONT END MOUNTING INR M12

13

CG43-10120-AA

MEMBER FLOOR SIDE FRONT

14

6G33F001K28AB

Bracket, tunnel upper inner

15

6G3310094AC

Member, reinforce front side, RH

16

6G33-10095-AC

REINF MEMBER FRONT SIDE LH

17

6G33100A94AC

Member, lower reinforce front side, RH

18

6G33100A95AC

Member, lower reinforce front side, LH

19

6G33-10276-AF

MEMBER FRONT SIDE RH

20

6G3310277AG

Member, front side, LH

21

7G33113C18AC

Panel, tunnel top front

22

8G4311160AD

Panel, tunnel top

23

6G33F02599AB

Member, body front cross

24

8G4358111K36GA

Tunnel, reinforce rear, RH

25

8G4358111K37GA

Tunnel, reinforce rear, LH

26

AG43L1898AA

Sill assy, outer, RH

26

AG43-C1898-AA

ASSEMBLY SILL OUTER RH

27

BG43-L1899-AA

ASSEMBLY SILL OUTER LH

27

BG43-C1899-AA

Assembly Sill Out LH

28

9G33-10772-AC

TUNNEL EXTRUSION RIGHT HAND

29

9G33-10773-AC

TUNNEL EXTRUSION LEFT HAND

30

6G33-46768-AA

RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni

31

6G33-68676-AC

Rivet Structural 6.5 x 14, Blind

32

6G33-68885-AB

SELF PIERCING RIVET 5.0 x 6.0mm

33

6G33-33800-AA

Rivnut, 7/16UNF hex flange

34

4G43-N800631-AA

Rubber Plug, 11mm, Black Thermoplastic

35

6G33-37949-AA

DIA 4.8 X 13.9 BLIND RIVET
