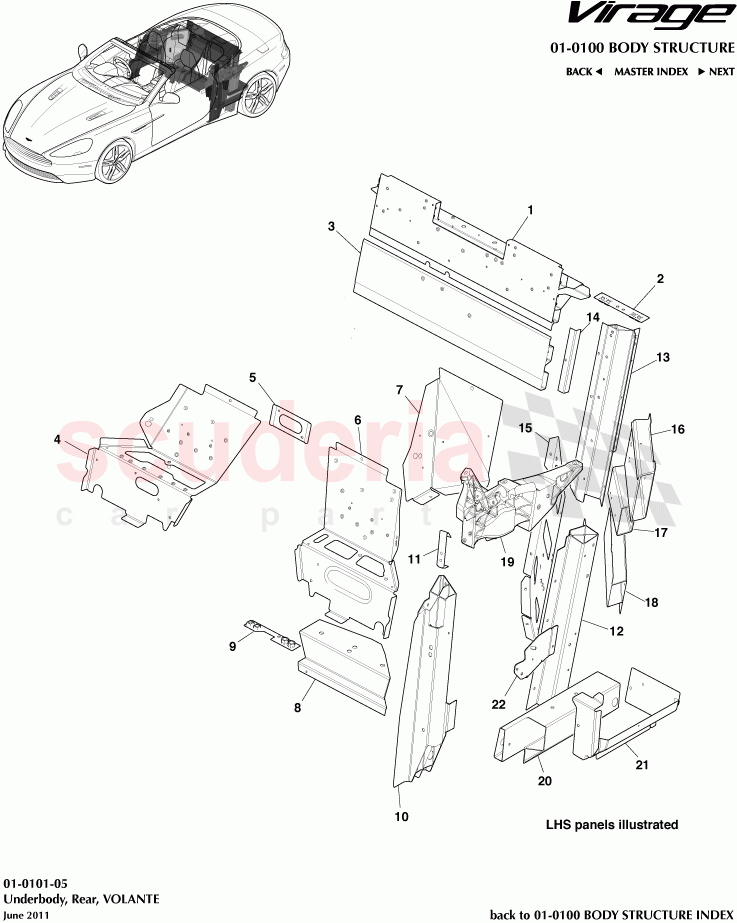

No

Kod

Parça Adı

1

8G43-C103B44-AC

MEMBER REAR CROSS UPPER

2

4G43-501A0-AB

NUTPALTE REAR RETACTOR UNF 7-16

3

8G43-C10786-AC

MEMBER REAR FLOOR CROSS FRONT

4

8G43111B22GB

Reinf, front floor pan, RH

5

8G4310765AB

Bracket, battery hold down clamp

6

8G43111B23GB

Reinf, front floor pan, LH

7

8G4310799AA

Reinf, front floor, centre section, rear, LH

7

8G4310798AA

Reinf, front floor, centre section, rear, RH (not illustrated)

8

8G43109A69AB

Cross member, front floor, rear, LH

8

8G43109A68AC

Cross member, front floor, rear, RH (not illustrated)

9

8G43-347863-AA

FRT LH NUTPLATE REAR SUB- FRAME FRONT LH

9

8G43-347864-AA

FRT RH NUTPLATE REAR SUBFRAME FRT RH

10

8G43C24313AB

Pillar, centre body, LH

10

8G43-C24312-AB

PILLAR CENTRE BODY RH

11

4G43-C393126-AE

NUTPLATE B POST M8

12

8G4324315AA

Pillar, centre body, outer rear, LH

12

8G4324314AA

Pillar, centre body, outer rear, RH (not illustrated)

13

8G43-C24327-AC

PLR CTR BDY INR RR L

14

6G3324320AB

Reinf, centre body pillar

15

8G43-27925-AA

PANEL REAR QUARTER INSIDE LH

15

8G43-27924-AA

PANEL REAR QUARTER INSIDE RH

16

8G43101K93AC

Member, floor side upper rear, LH

16

8G43101K92AC

Member, floor side upper rear, RH (not illustrated)

17

6G3310471AC

Member, floor side inner rear, LH

17

6G3310470AC

Member, floor side inner rear, RH (not illustrated)

18

6G3310505AC

Member, extension floor side lower rear, LH

18

6G3310504AC

Member, extension floor side lower rear, RH (not illustrated)

19

9G43L243A61AA

Reinf Centre body upper outer piller centre, LH

19

9G43L243A60AA

Reinf Centre body upper outer piller centre, RH

20

8G43L24577AA

Panel, centre body pillar, LH

20

8G43L24576AA

Panel, centre body pillar, RH (not illustrated)

21

8G43-101D07-GC

EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH

21

8G43-101D06-GC

EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH

22

8G43C20415AC

Pan, reinf, door opening rear, LH

22

8G43C20414AC

Pan, reinf, door opening rear, RH (not illustrated)
