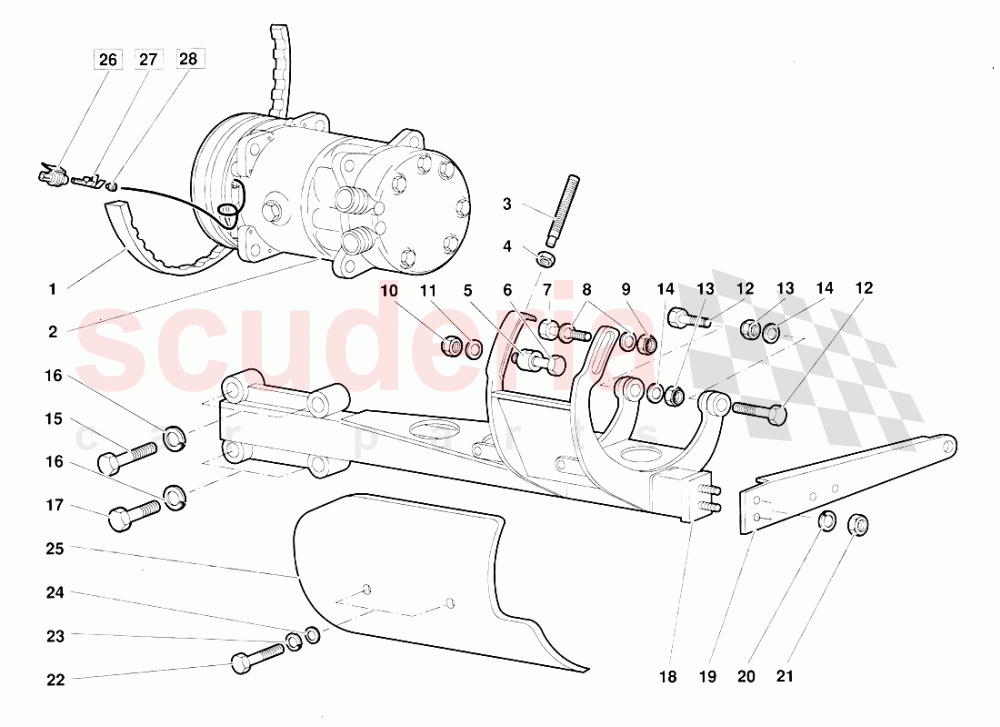

No

Kod

Parça Adı

001

004529536

T. BELT (until 12042)

033

WHT003355

NUT M12X1,25

002

004530198

AIR COMPRESSOR

006

410407127A

BOLT

003

410407295D

WASHER

003

410407295B

2.0 MM ADJUSTMENT SHIM

003

008700841

SCREW

003

410407295C

2.5 MM ADJUSTMENT SHIM

003

410407295

1.0 MM ADJUSTMENT SHIM

003

005133488

SHIM

021

008200801

NUT M8

005

008921206

RESILIENT BUSHING

005

004529646

SPACER

006

008101035

SCREW

007

008101022

bolt

007

005225908

RH UPPER SUSPENSION ARM

007

005225909

ARM

014

008401028

WASHER

008

005225204

PIN

009

005225207

RESILIENT BUSHING

010

008201008

NUT

010

008401710

WASHER

011

008401708

WASHER

012

008251702

PLUG

012

008101019

bolt

013

008201010

NUT

013

005225205

PIN

014

005225906

ARM

014

005225907

ARM

015

008100841

SCREW

015

N0111849

NUT

020

N0152785

WASHER

016

005227297

BUSHING

017

005227298

BUSHING

017

N01033520

SCREW M8X35

018

005109714

BOOT

018

004529535

SUPPORT - SUPPORTO

019

004529645

TIE ROD

019

008100810

SCREW

020

417801931A

BALL JOINT

021

008201014

NUT

022

005209770

TIE ROD

022

008100620

Bolt

023

WHT003053

WASHER

023

008201016

NUT

024

008400606

WASHER

024

005227295

BALL JOINT

025

005230211

STABILIZER BAR

025

004532221

SHIELD

026

008700609

SCREW

026

006132546

CONNECTION

027

006131992

KEY

027

008410602

WASHER

028

005230256

RETAINER

028

006132584

KEY

029

005238302

BUSHING

030

005230257

RETAINER

031

005233269

SHOCK ABSORBER

031

005229803

SHOCK ABSORBER

032

005226157

SPRING

032

005226158

SPRING

034

410512383

FLEXIBLE BUSHING

035

008101259

SCREW

036

410512385

RUBBER RING
