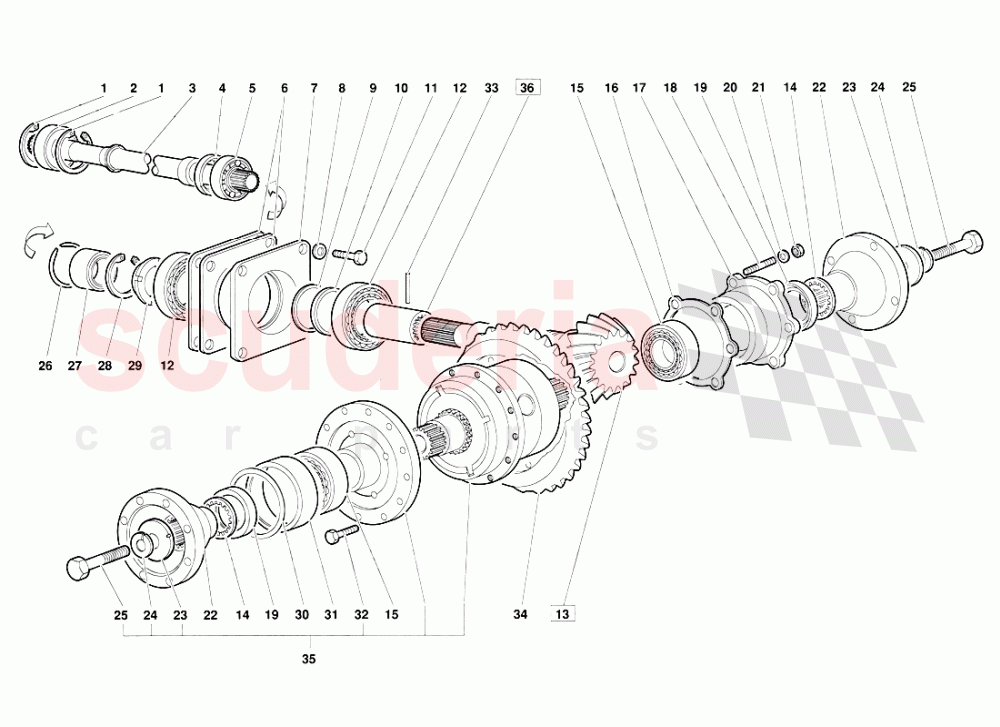

Lamborghini Yedek Parça - Diablo (1990-1998) Parts - Differential (Valid for June 1992 Version)
Parça Kodları
No
Kod
Parça Adı
001
008575501
RETAINING RING
002
410103520
BEARING
003
002331406
PROPELLER SHAFT
004
008613508
SEAL
005
008503010
BEARING
006
002324939
SHIM
007
002324938
FLANGE
008
008410815
WASHER
009
002330696
SHIM
009
002330697
SHIM
009
002330695
SHIM
009
002330693
SHIM
009
002330694
SHIM
010
002328764
SPACER
011
008100803
SCREW M8X1,25X25
012
008545004
BEARING
013
002333371
PINION
013
002326586
PINION
014
002325117
THRUST PLATE
015
008545002
BEARING
016
002324942
SHIM
017
002324452
FLANGE
018
008301032
STUD
019
008614507
SEAL
020
WHT000768
WASHER
021
N10155210
NUT
022
002331911
HUB
023
002332653
WASHER
024
002332652
WASHER
025
002332651
SCREW
026
008583502
RETAINER RING
027
008523514
BEARING
028
008575000
RETAINER RING
029
008254503
PLUG
030
002331921
SHIM
030
002331920
SHIM
030
002331919
SHIM
030
002331918
SHIM
030
002331917
SHIM
031
002324940
BEARING CASE
032
002332650
SCREW
033
008900503
PIN - SPINA
034
002324937
CROWN
035
002332210
KIT DIFFERENTIAL
036
002324935
RIGID SLEEVE
