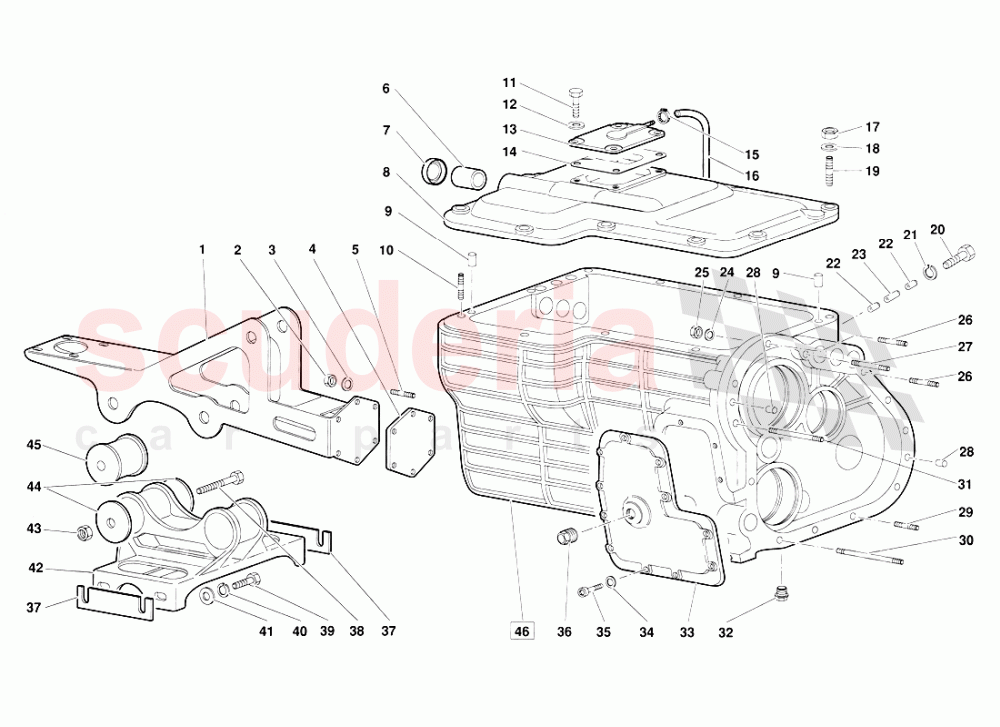

Lamborghini Yedek Parça - Diablo (1990-1998) Parts - Gearbox (Valid for June 1992 Version)
Parça Kodları
No
Kod
Parça Adı
001
002431479
SUPPORT - SUPPORTO
002
N01100637
NUT M6
034
008410602
WASHER
004
002425638
COVER
005
008300602
STUD
006
008801612
BUSHING
007
008611605
SEAL
008
002424900
COVER
028
008850806
DOWEL
010
008300862
STUD
011
008100604
SCREW
013
002428645
COVER
014
002428643
PAN
015
008830204
Clamp ring
016
002428649
VENT PIPE
025
008200806
NUT
024
WHT001514
WASHER
019
008300825
STUD BOLT
020
N01029315
SCREW (FROM VIN 5LA01545)
021
008400802
WASHER
022
002425223
ROD
023
002425224
ROD
026
008300894
STUD
027
008300889
STUD
029
008300892
STUD
030
008300896
STUD BOLT
031
008300895
STUD
032
086301141A
MAGNETIC PLUG
033
002428586
SIDE COVER
035
008700614
SCREW
036
008931802
MAGNETIC PLUG
037
004126766
SPACER
038
008101430
SCREW
039
N01033520
SCREW M8X35
040
N0152785
WASHER
041
N0122094
WASHER
042
004131478
SUPPORT - SUPPORTO
043
008201416
NUT
044
004130884
WASHER
045
0B9501144
support mount
046
002429421
GEARBOX CASE
