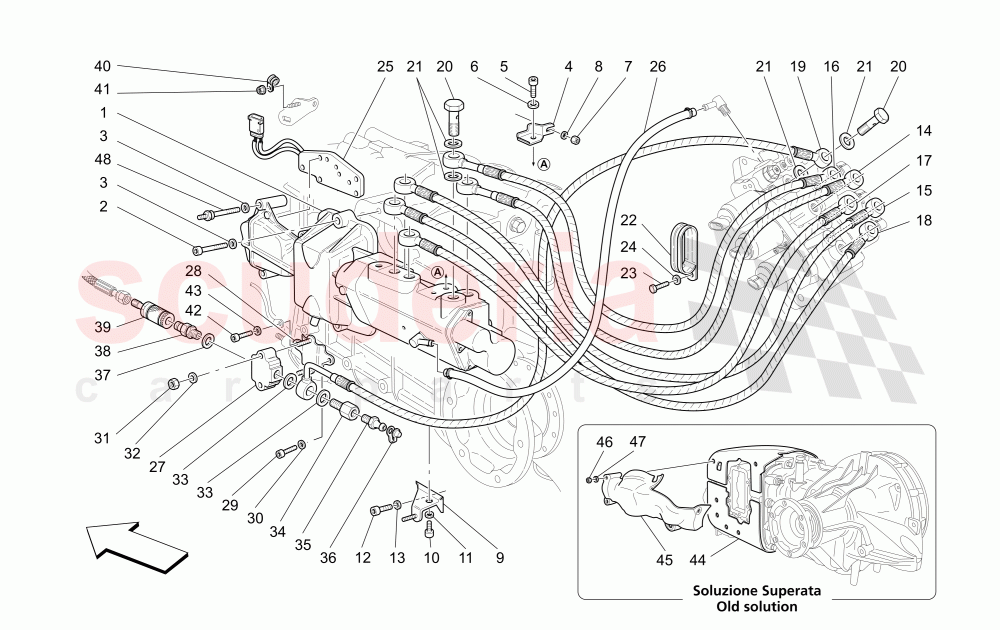

No

Kod

Parça Adı

-

193477

F1 GEARBOX SYSTEM COMPONENTS KIT

1

181160

COMPLETE HYDRAULIC ACTUATOR

2

11501024

STUD BOLT

3

11500724

STUD BOLT

4

103038

DOWEL

5

11500624

STUD BOLT

6

14039614

NUT

7

11197774

Washer

8

189083

PLATE

9

231619

SCREW

10

12648221

WASHER

11

125717

CENTRING DOWEL

12

196181

SHIELD FOR ACTUATOR PROTECTION

13

196222

SHIELD SUPPORTING BRACKET

14

15896470

NUT

15

13577724

WASHER

16

248092

BRACKET KIT

17

195550

ACTUATOR SUPPORT UPPER BRACKET

18

84653800

WASHER

19

127496

Washer

20

16043124

SCREW

21

189767

PIPE (EV1)

22

189768

PIPE (EV2)

23

189769

PIPE (EV3)

24

189771

PIPE (EV4)

25

189772

PIPE (EV5)

39

171454

PIPE UNION

40

10261060

Gasket

28

191775

OIL RECYCLING PIPE

29

195838

PIPE FROM PUMP TO BLOCK

30

175667

BLOCK

37

70001184

FEMALE COUPLING -Not as spare part- -Replaced by 210469-

32

171755

WASHER

33

171630

UNION-Valid for F1-

34

152955

PROTECTIVE CAP

35

152954

BLEED SCREW

38

193541

CLUTCH CONTROL TUBE

42

181325

SELECTION SENSOR

43

192911

POTENTIOMETER SUPPORT
