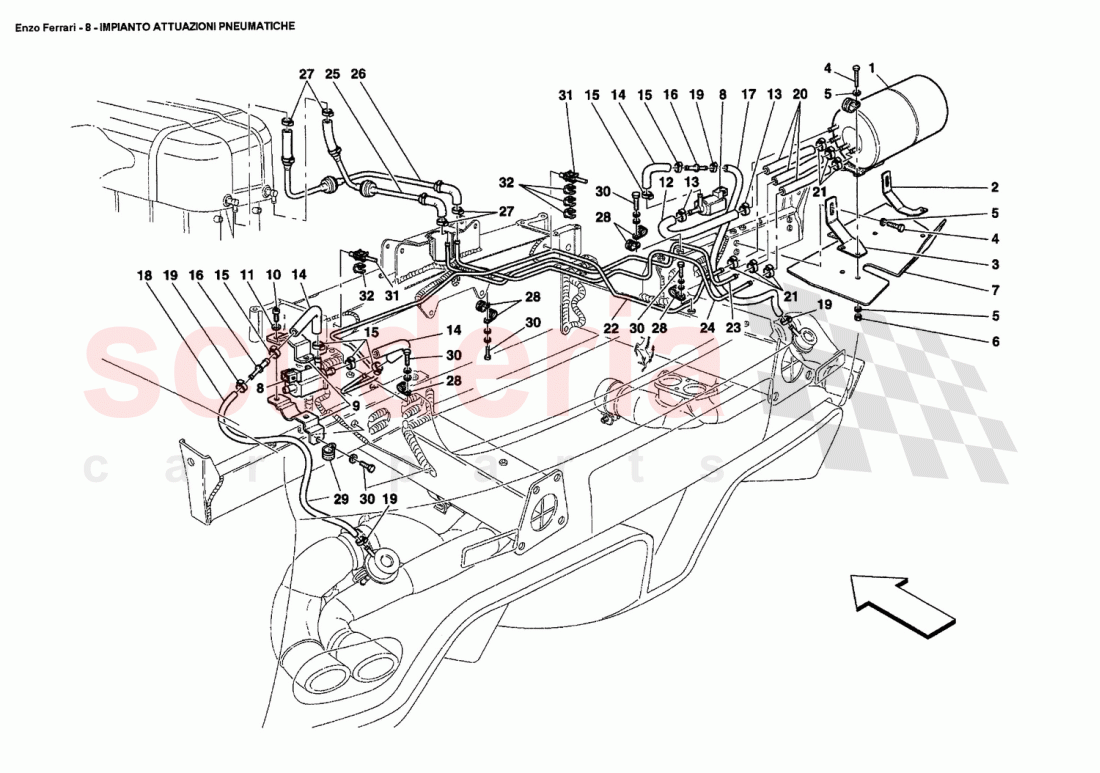

No

Kod

Parça Adı

1

191385

DEPRESSION ACCUMULATION TANK

2

191380

R.H. SUPPORT BRACKET

3

191378

L.H. SUPPORT BRACKET

4

10902424

Screw

5

12644424

Washer

6

14039614

NUT

7

195911

SHIELD FOR TANK PROTECTION

8

178309

SOLENOID VALVE

9

178515

SOLENOID VALVE MOUNTING

10

14302924

SCREW

11

127492

WASHER

12

194260

PIPE FROM SOLENOID VALVE TO TANK

27

13432070

Collar for Hose Union

14

148464

SLEEVE

16

178369

CONNECTOR

17

8147122

R.H. PIPE FROM UNION TO VALVE

18

147120

Rubber pipe from L.H. manifold

19

241986

COLLAR FOR HOSE UNION

20

194259

RUBBER HOSE

22

193562

PIPE FROM TANK TO L.H. SOLENOID VALVE

23

193564

PIPE FROM TANK TO R.H. DEPRESSION PIPE

24

193563

PIPE FROM TANK TO L.H. DEPRESSION PIPE

25

186822

COMPLETE R.H. DEPRESSION PIPE

26

186823

COMPLETE L.H. DEPRESSION PIPE

28

10441290

BRACKET WITH SHEATH

29

10441390

BRACKET WITH SHEATH

30

14305287

SCREW

31

140162

ANCHOR FOR CLIP

32

140130

CLIP
