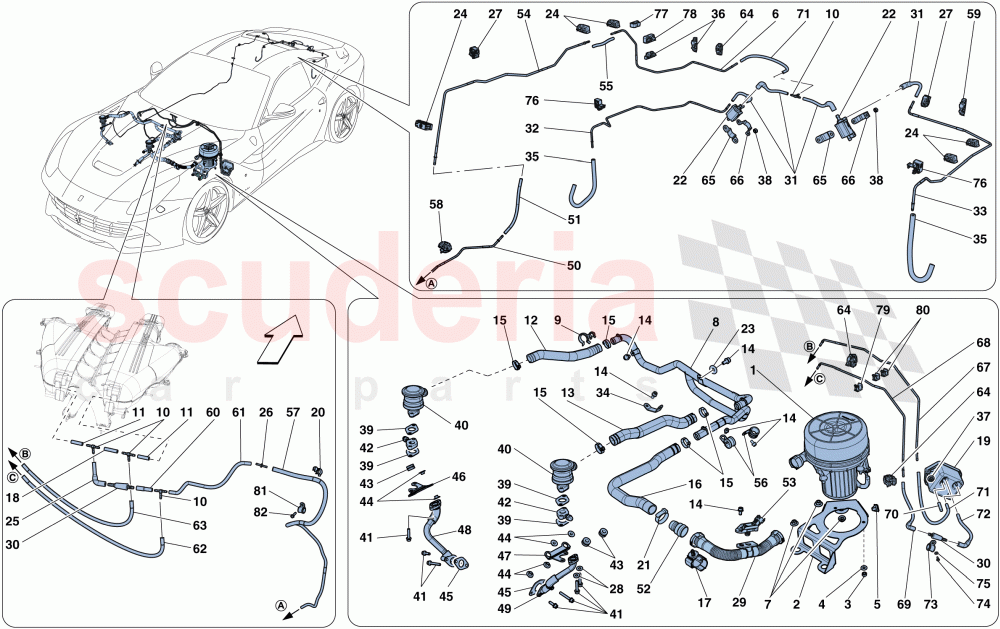

No

Kod

Parça Adı

1

247795

SECONDARY AIR SYSTEM PUMP

2

272314

PUMP MOUNTING BRACKET

38

14039614

NUT

4

11194674

Washer

5

291283

CLIP

6

293314

RIGID PIPE

8

289538

ALUMINIUM PIPE

20

225165

CLIP

10

257691

THREE-WAY UNION

11

122759

RUBBER PIPE

12

279862

RH CONNECTOR PIPE

13

274855

LH CONNECTOR PIPE

14

233600

Screw

15

13128970

COLLAR

16

279692

ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR

17

82051100

CLIP

18

170530

RUBBER PIPE

19

198339

VACUUM ACCUMULATOR TANK

21

262111

Collar

22

178309

SOLENOID VALVE

23

12643724

WASHER

77

294206

CLIP

24

280281

CLIP

25

295677

RUBBER PIPE

26

199696

CONNECTOR

27

234284

CLIP

28

11197774

Washer

29

288959

SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER

30

295349

VACUUM RETAINER VALVE

31

294268

RUBBER PIPE

32

281020

RH RIGID PIPE

33

269073

LH RIGID PIPE

34

289882

PIPE MOUNTING BRACKET

35

339752

RUBBER PIPE

59

190409

CLIP

38

11566227

SCREW

39

186781

GASKET FOR PIPES

40

284235

SECONDARY AIR SYSTEM VALVE

41

231621

Screw

41

231618

Screw

41

231625

Screw

42

286011

SPACER ASSEMBLY

42

264020

SPACER ASSEMBLY

43

177576

CABLE GROMMET

44

183898

BUSHING

45

202980

GASKET FOR PIPES

46

258254

RH VALVE FASTENER BRACKET

47

258252

LH VALVE FASTENER BRACKET

48

256598

PIPE FROM AIR VALVE TO RH HEAD

49

256596

PIPE FROM AIR VALVE TO LH HEAD

50

284631

EMISSIONS CONTROL PIPE

51

264088

RUBBER PIPE

52

267093

COUPLING

53

282849

PRESSURE SENSOR

54

284629

RIGID PIPE

55

199691

RUBBER PIPE

56

10450690

BRACKET WITH SHEATH

57

289048

RUBBER PIPE

58

284622

CLIP

60

295441

RUBBER PIPE

61

159542

RUBBER PIPE

62

295414

RUBBER PIPE

63

295413

RUBBER PIPE

64

234285

CLIP

65

294259

SOLENOID VALVE MOUNTING BRACKET

66

294260

SOLENOID VALVE MOUNTING BRACKET

67

295778

RUBBER PIPE

67

274272

TANK ACTUATOR RIGID PIPE ON FIREWALL

68

295777

RUBBER PIPE

68

274271

TANK VACUUM RIGID PIPE ON FIREWALL

72

294265

RUBBER PIPE

70

225098

CAP

71

169456

R.H. PIPE VALVE TUBE

73

10441290

BRACKET WITH SHEATH

74

15516204

SCREW

75

12638178

Washer

76

294205

CLIP

78

294207

CLIP

79

140130

CLIP

80

141546

CLIP

81

10418501

BRACKET

82

85833700

Screw
