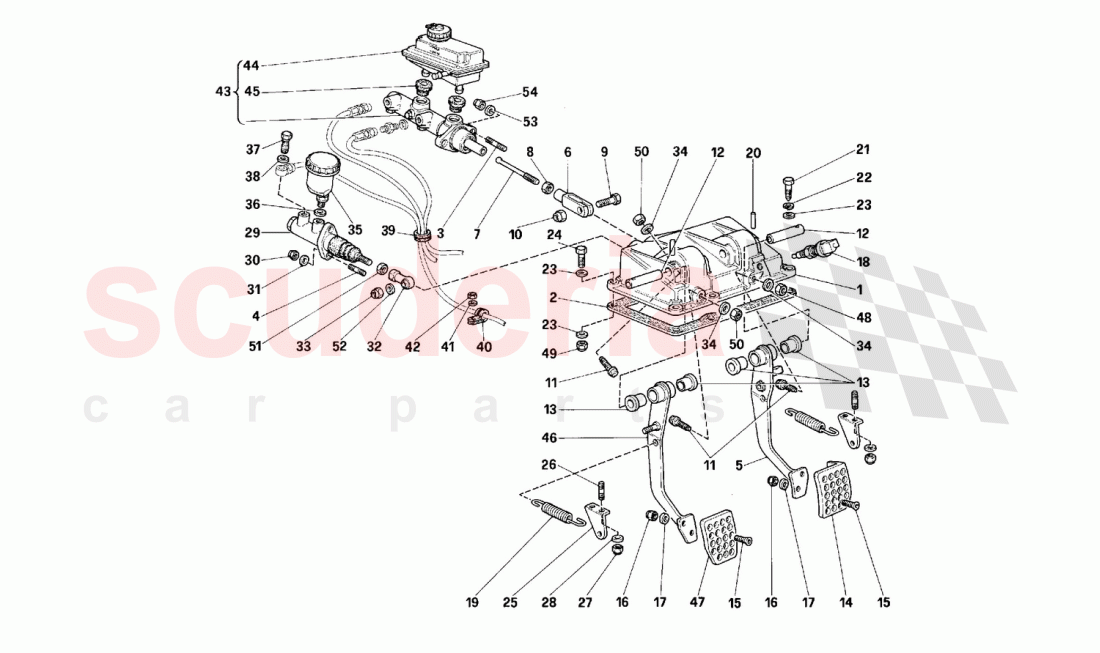

Ferrari Yedek Parça - F40 - Brakes and clutch control pedals
Parça Kodları
No
Kod
Parça Adı
-
140595
Brake pump
1
133344
Support
2
128627
Gasket
3
12429621
Stud
4
13543324
Stud -Valid for gearbox
5
133553
Brake pedal
6
133393
Fork
7
137650
Pin
51
16102314
NUT
9
137116
Screw
49
16104411
Selflocking nut
11
128620
Screw pedal
12
133554
Pin
13
128612
Bush pedal (As option Nr. 128613)
14
128608
Plate
15
14441420
Screw
42
14039614
NUT
17
14499370
Washer
18
133555
PUSHBUTTON SWITCH
19
138856
Spring pedal
20
114623
Cotter pin
21
16136021
Screw
22
127496
Washer
52
84653800
WASHER
24
16044024
SCREW
25
62431900
Plate
26
11001024
Stud
27
319201
FUEL FILLER PIPE ASSEMBLY
28
14496324
WASHER
29
137544
Clutch pump
30
133989
NUT
53
12601374
Washer
32
123194
Ball joint
54
104030
Nut
35
135772
Small tank
36
10298460
Gasket
37
136565
Hose
38
10260160
GASKET
39
10397380
CABLE GROMMET
40
10441590
BRACKET WITH SHEATH
41
10519424
WASHER
43
137651
Brake pump
44
133559
Small tank
45
175189
SEAT RING
46
128596
Clutch pedal
47
128599
Clutch pedal plate
