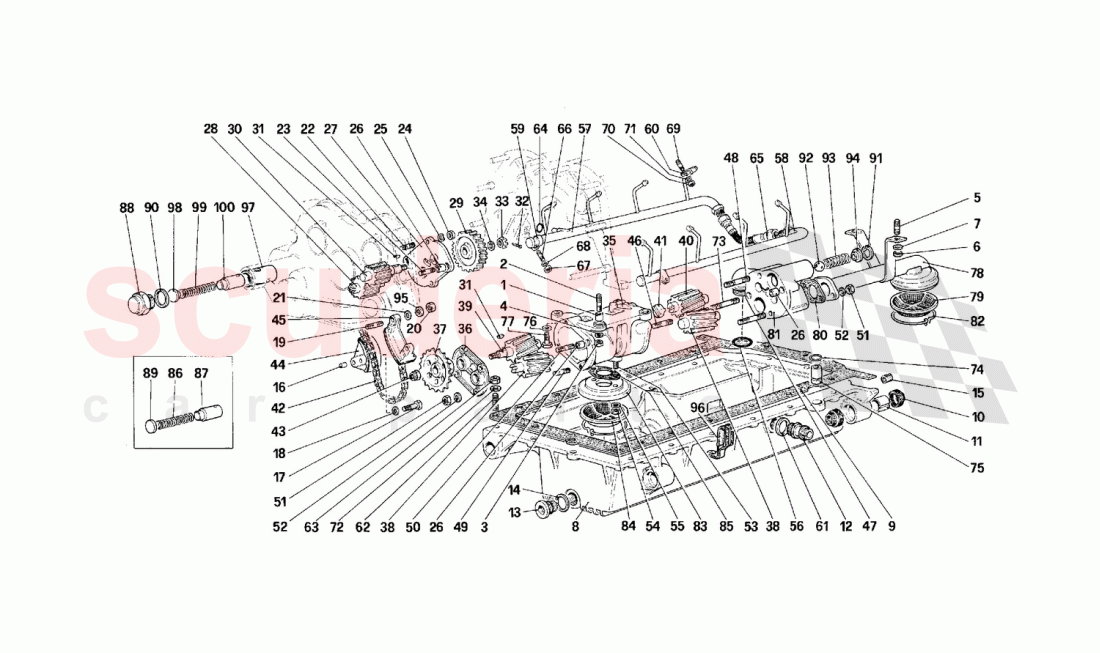

Ferrari Yedek Parça - F40 - Lubrication - Pumps
Parça Kodları
No
Kod
Parça Adı
35
122051
Scavenge pump body complete
8
134999
Oil sump complete
1
121906
Dowel
2
13543624
STUD BOLT
3
133989
NUT
72
12601374
Washer
5
13516421
Stud
63
14040711
NUT
7
127496
Washer
9
144254
Gasket
10
121929
Ring
11
124467
Bush
12
134930
Fitting
13
104280
Oil drain Plug
61
10263460
Gasket
15
122976
Hell -coil
16
125716
CENTERING DOWEL
17
10902424
Screw
55
11197774
Washer
49
11500324
STUD BOLT
54
14039614
NUT
22
13540824
STUD BOLT
23
13541124
STUD BOLT
26
102725
CENTRING DOWEL
27
124111
Cover for oil pump
28
134766
Driven gear
29
124924
Control gear
30
134767
Driving gear
31
10205620
Key
32
10734301
SPLIT PIN
33
102900
Nut
34
11198570
Washer
36
109301
Front cover for pump
37
125075
External gear
38
134744
Driven gear
39
134745
Front driving gear
40
134746
Rear driving gear
41
109309
JOINT
42
109326
Chain
43
104011
CONNECTING ROD TIGHTENING NUT
44
136196
Right tension pad
45
136195
Left tension pad
46
11501424
STUD
47
11501821
Stud
48
11501721
Stud
50
11500524
STUD BOLT
66
11500024
Stud for cover of flywheel
56
104213
Scaling ring
57
137265
Oil delivery pipe right
58
137264
Oil delivery pipe left
59
123171
Clamp
60
123170
Clamp
62
12354524
Stud Securing Exhaust
64
123622
GASKET
65
123192
Pipe
67
13679811
Washer
68
10519424
WASHER
69
13539024
Stud Bolt
70
14058319
NUT
71
14496324
WASHER
73
11501921
Stud
74
103839
Ring
75
103838
Dowel
76
11198074
WASHER
77
231629
SCREW
78
121947
Suction pipe rear
79
100332
OIL FILTER
85
144251
Gasket
81
121953
Rear cover pump
82
103944
Sealing ring
83
122428
Suction pipe front
84
122429
Oil Filter
86
106900
Spring
100
125885
Piston -Valid from engine
88
106237
Plug
89
106238
Spacer
90
144487
GASKET
91
11058076
Seeger Ring
92
121306
BALL
93
121981
Spring
94
121972
Washer
95
12644424
Washer
96
137233
Bracket
97
125321
Bushing -Valid from engine
98
135679
Spacer -Valid from engine
99
133550
Spring -Valid from engine
