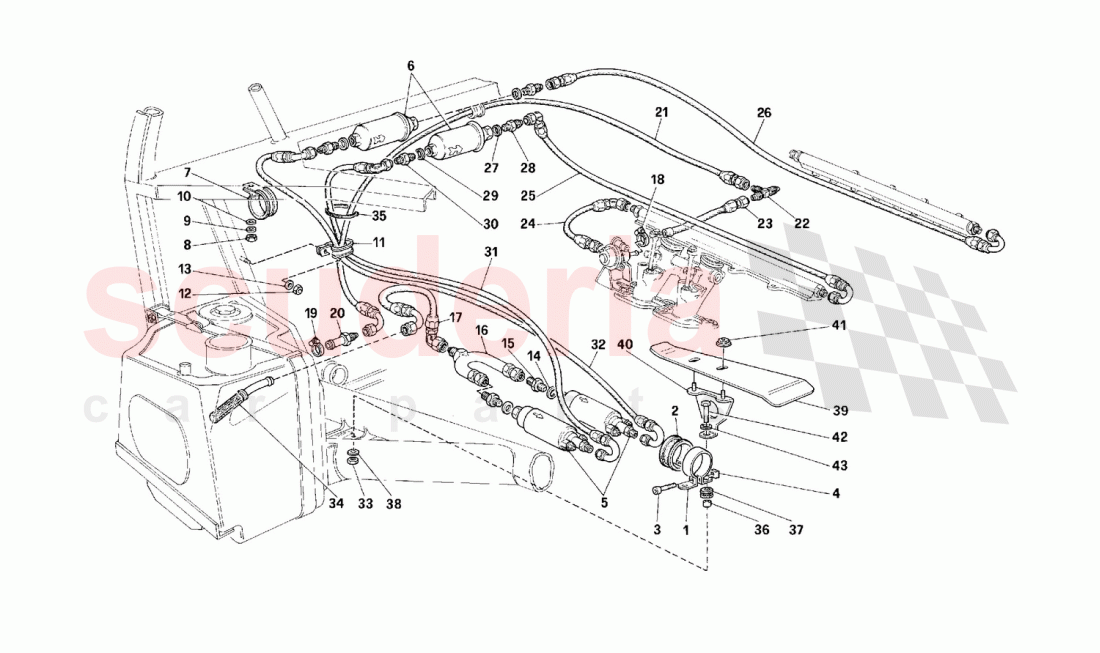

No

Kod

Parça Adı

23

146358

Fuel pipe from pressure adjuster to 3 way union

-

14305974

SCREW

1

147617

Clip -Valid after

2

123848

Protection

3

14305521

SCREW

4

14089311

Square nut

5

199618

Fuel pump

6

134470

Fuel filter

7

137243

Bracket

33

14039614

NUT

9

11197774

Washer

43

12643724

WASHER

11

61712500

Bracket with Sheath

14

10261460

Gasket

15

136845

Union

16

136935

Union

17

136089

Fuel pipe from tank to 3 way pumps

18

13432070

Collar for Hose Union

19

262109

COLLAR

20

136107

Union

21

136846

Fuel pipe from 3 way flutes to L.H. tank

22

136109

Union

24

136847

Pipe from flute to pressure adjuster

25

136848

Fuel pipe from L.H. filter to L.H. flute

26

136852

Fuel pipe from R.H. filter to R.H. flute

27

10298460

Gasket

28

136077

Union

29

10280060

Gasket

30

136099

Union

31

136851

Fuel pipe from L.H. pump to L.H. filter

32

136850

Fuel pipe from R.H. pump to R.H. filter

34

137107

Filter

35

14560187

Clamp (cable tie)

36

103550

Spacer bush -Only for

37

103549

Cable Grommet

39

149083

Shield

40

149089

Bracket

41

13832101

NUT

42

231625

Screw
