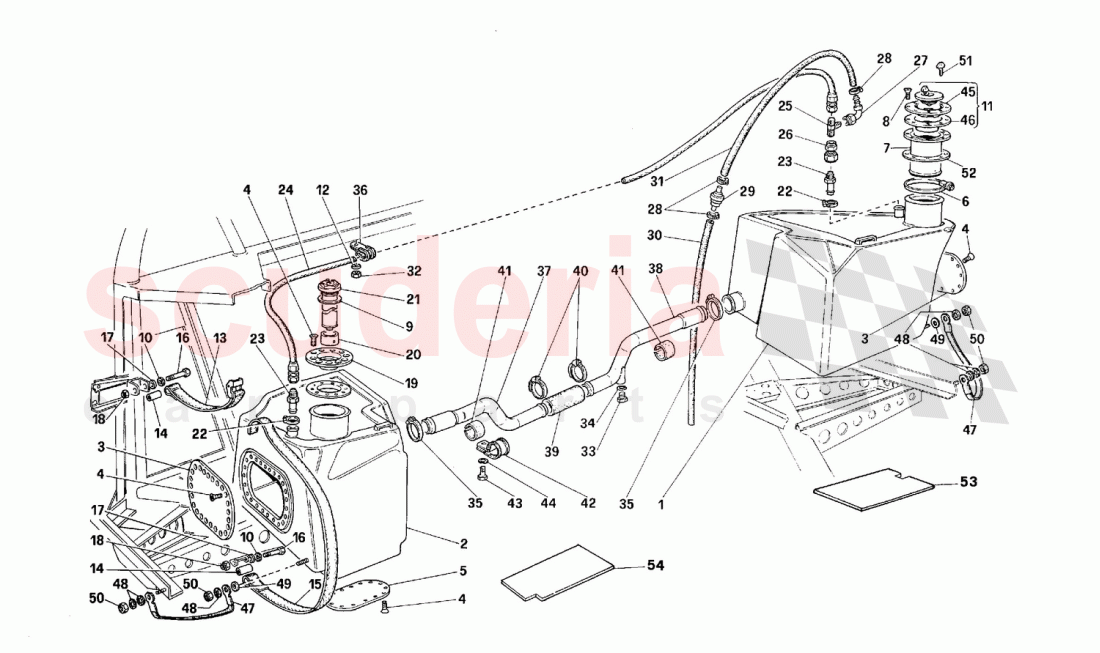

Ferrari Yedek Parça - F40 - Tanks and gasoline vent system -Not for USA-
Parça Kodları
No
Kod
Parça Adı
-
143191
Union
1
195114
Fuel Tank R.H.
2
195113
Fuel Tank L.H.
3
136051
Flange
4
14441324
SCREW
5
136052
Flange
6
122890
Clamp
7
136044
Union
8
149950
Screw
9
138386
Gasket
10
127492
WASHER
11
137094
Set plug
12
12643724
WASHER
13
136045
Belt
14
136046
Spacer
15
136519
Belt
16
10445521
Screw
17
14496204
WASHER
18
10721911
NUT
19
136053
Flange
20
136105
Protection
21
139703
Fuel level
22
262109
COLLAR
23
136107
Union
24
136108
Exhaust pipe from L.H. tank to R.H. 3 way
25
136109
Union
26
136110
Union
27
136111
Union
28
13432070
Collar for Hose Union
29
120444
Valve for tanks ventilation
30
116772
Pipe
31
116770
Exhaust pipe from 3-way
32
14039614
NUT
33
10300771
Oil Outlet Plug
34
10278650
Gasket
35
13000790
Screw Collar
36
61712500
Bracket with Sheath
37
139279
L.H. Tube tank connection
38
139299
R.H. Tube tank connection
39
114277
R.H. and L.H. hose
40
13000590
SCREW COLLAR
41
139298
Insulation
42
106195
BRACKET WITH SHEATH
43
10902221
SCREW
44
127494
Washer
45
70000569
Flange
46
70000570
Gasket
47
61196500
Cable
48
149951
WASHER
49
12637824
WASHER
50
15896470
NUT
51
95401163
Key
52
140496
Gasket
53
144599
R.H. fuel tank containing shield
54
144629
L.H. fuel tank containing shield
