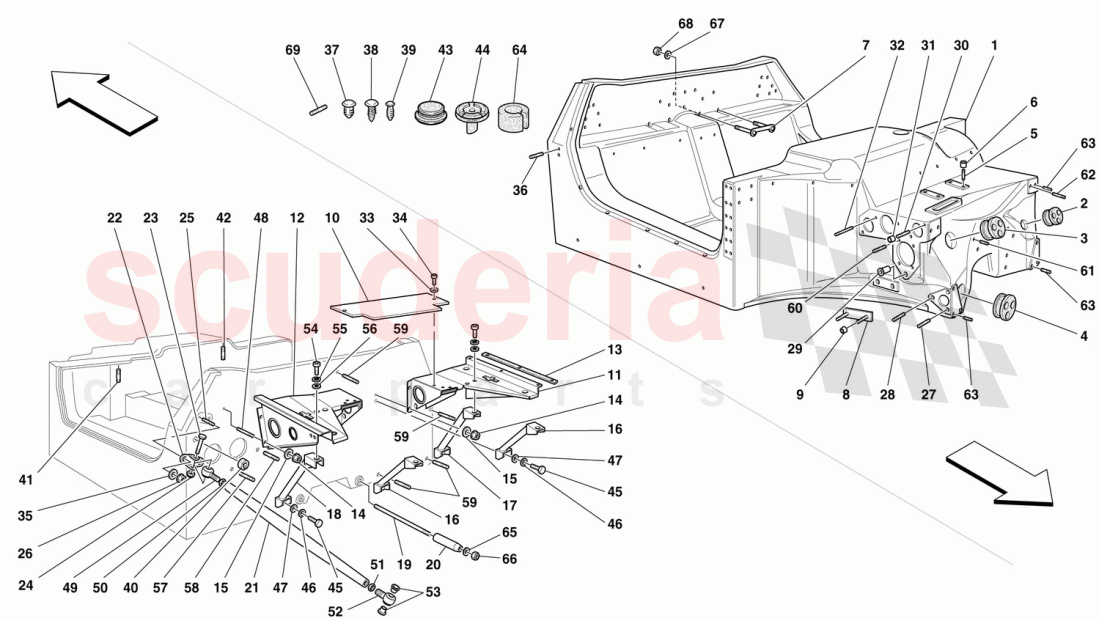

Ferrari Yedek Parça - F50 - FRAME AND STRUCTURES
Parça Kodları
No
Kod
Parça Adı
1
155715
MONOCOQUE BODY FRAME
2
167307
CABLE GROMMET FOR PIPES
3
167310
CABLE GROMMET FOR PIPES
4
167309
CABLE GROMMET FOR PIPES
5
13543724
STUD BOLT
31
150961
CENTERING DOWEL
7
162686
ENGINE FIXING BRACKET
8
151229
BRACKET FOR LOWER LEVER
9
150786
SPACER
10
64924700
SILENCER SHIELD
11
64135500
R.H. PLATE
12
64135600
L.H. PLATE
13
64529700
GASKET
26
14040711
NUT
47
84653800
WASHER
16
64632200
INNER LOWER WINDBRACING
17
64632400
R.H. OUTER LOWER WINDBRACING
18
64632500
L.H. OUTER LOWER WINDBRACING
19
164949
STUD
20
152451
BUSHING
21
165048
TAPERED SPRAG
22
151879
FORK
23
151883
SCREW
24
148020
NUT
60
12429524
STUD
27
156705
STUD
28
12429724
STUD
29
151642
BUSHING
30
13543734
STUD BOLT
32
13544334
STUD
33
12642877
WASHER
34
15688875
SCREW
35
12638524
WASHER
36
12354524
Stud Securing Exhaust
37
14592587
FIXING BUTTON
38
143862
PLUG
39
61568600
BUTTON
40
63393900
Sealant
41
13543224
STUD
59
13541124
STUD BOLT
43
14507787
CAP
44
60731300
Plug
45
16043434
SCREW
55
127496
Washer
63
13543324
Stud -Valid for gearbox
49
151799
BALL JOINT
50
149124
L.H. THREADED NUT
51
10717477
NUT
52
151798
BALL JOINT
53
151794
BUSHING
54
14359274
SCREW
56
12647021
WASHER
57
13541324
STUD BOLT
58
11501024
STUD BOLT
61
11001224
Stud bolt
62
13543424
STUD BOLT
64
63566000
SEAL RING
65
152537
WASHER
66
101040
Nut
67
164963
WASHER
68
132876
NUT -As an alternative-
69
121983
STUD
