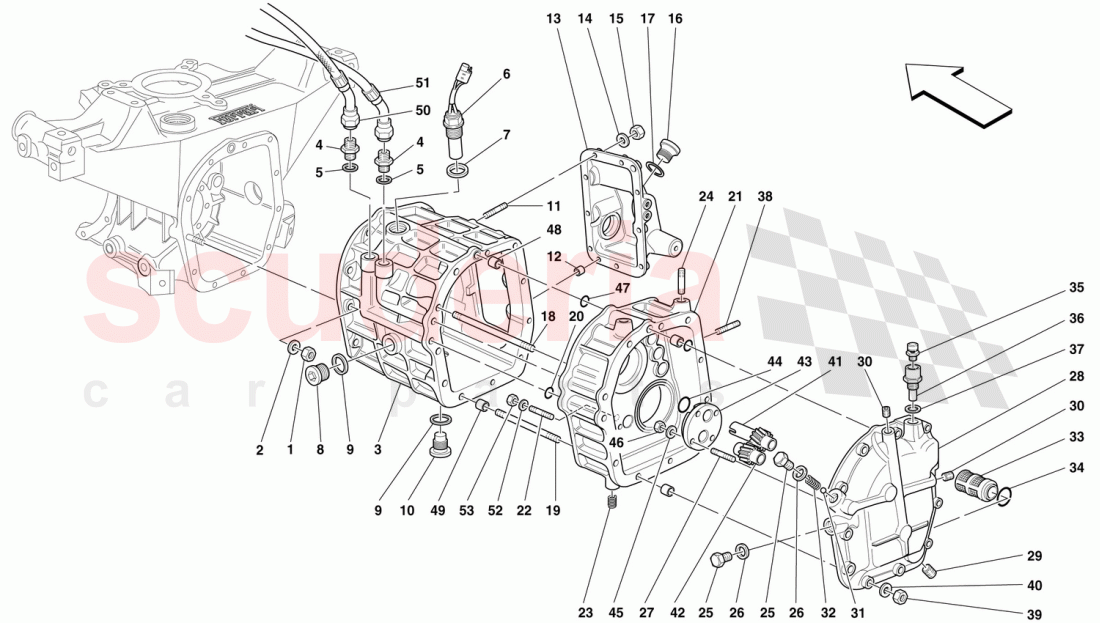

Ferrari Yedek Parça - F50 - REAR PART GEARBOXES HOUSING - COVERS AND LUBRICATION
Parça Kodları
No
Kod
Parça Adı
21
156787
GEARBOXES ASSEMBLY
39
14040711
NUT
40
12601374
Washer
4
134988
UNION
37
145192
Gasket
6
150830
PULSE SENSOR
17
144810
GASKET
16
307477
THREADED PLUG
10
104280
Oil drain Plug
11
11500524
STUD BOLT
12
125717
CENTRING DOWEL
13
155620
COVER FOR GEARBOX CONTROL ROD INLET
45
11197774
Washer
53
14039614
NUT
18
13970624
STUD
19
13970724
STUD
20
134232
O-RING
38
11500124
STUD BOLT
23
13582171
THREADED INSERT
24
13543824
STUD BOLT
25
145148
PLUG
28
154642
REAR GEARBOX COVER
29
10269450
THREADED PLUG
30
14326050
CAP
31
135770
BALL
32
135771
SPRING
33
115538
FILTER FOR GEAR BOX OIL PUMP
34
101034
O.R. GASKET
35
13411990
OIL BREATHER
36
150954
UNION
41
109722
GEARBOX OIL PUMP DRIVING
42
109723
GEARBOX OIL PUMP DRIVEN
43
121962
Oil pump cover
44
109724
O-RING
47
132536
GASKET
48
150957
ALIGNMENT BUSHING
49
150961
CENTERING DOWEL
52
127494
Washer
