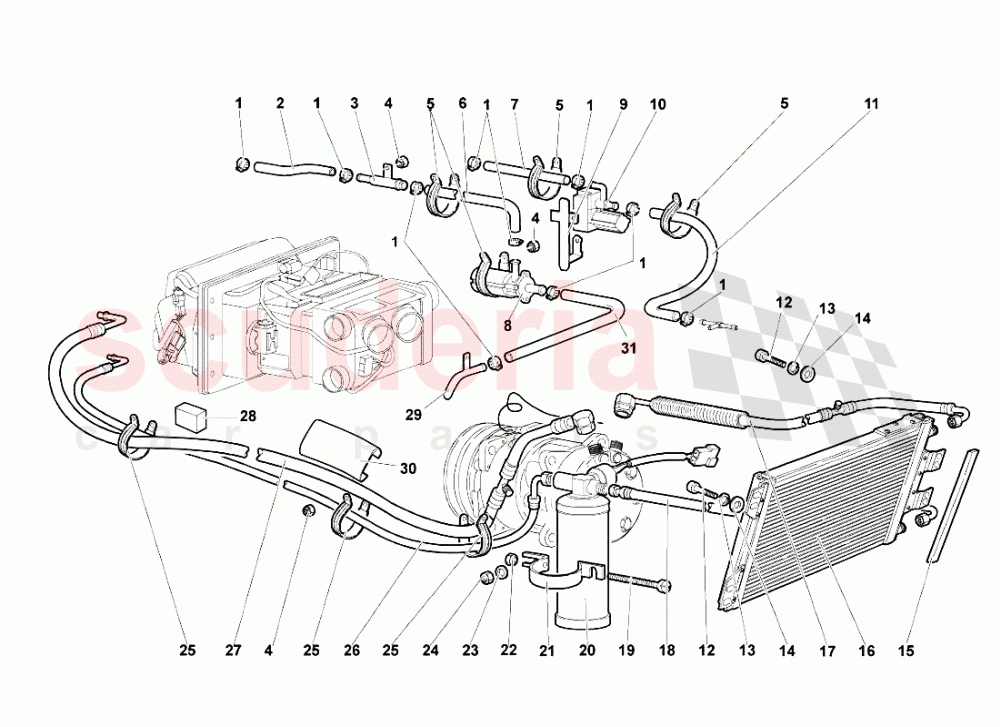

Lamborghini Yedek Parça - Gallardo (2003-2005) Parts - Air Conditioning System 2
Parça Kodları
No
Kod
Parça Adı
01
N10082911
SCREW M6X16
02
400260401B
A/C CONDENSER
03
400820261
GASKET
04
400260709
PIPE
05
400819371
SLEEVE
06
400819370
SLEEVE
07
N10166201
CLAMP
08
N10255601
CLAMP
09
400260701B
PIPE
10
400260741
PIPE
13
400820194
DEHYDRATOR FILTER (INCLUDES REF. 14 )
14
N903411
SCREW (M6X62.00)
15
400260740A
PIPE
17
400260740
PIPE
19
400819270
LH PIPE
20
400819269
RH PIPE
21
N245107
CLAMP
22
400819372
SLEEVE
23
400820665
PIPE
24
8A0260749AJ
O-RING
25
8E0260749C
O-RING
26
4E0260749A
O-RING
27
4E0260749C
O-RING
28
8A0260749AH
O-RING
29
8A0260749AK
O-RING
30
3R0959126
PRESSURE SENSOR
31
8Z0820535
TEMPERATURE SENSOR
33
400820853A
PLUG
34
400820855
VALVE
35
400820853
PLUG
36
400819268A
PIPE
37
N245203
CLAMP
38
400121079A
BRACKET
39
N90367502
NUT
40
N90533002
SCREW
41
400121068
BRACKET
42
400819377
PIPE
43
400260759F
BRACKET
44
400820955A
COVER
45
WHT001190
SCREW M5
46
400820099A
GASKET
47
400819028A
GASKET
48
8E0260759AP
SUPPORT
49
N10470701
SCREW M6X50
50
400820536A
BRACKET
51
N454281
CLIP
52
N10405502
SCREW
53
N903782
SCREW
