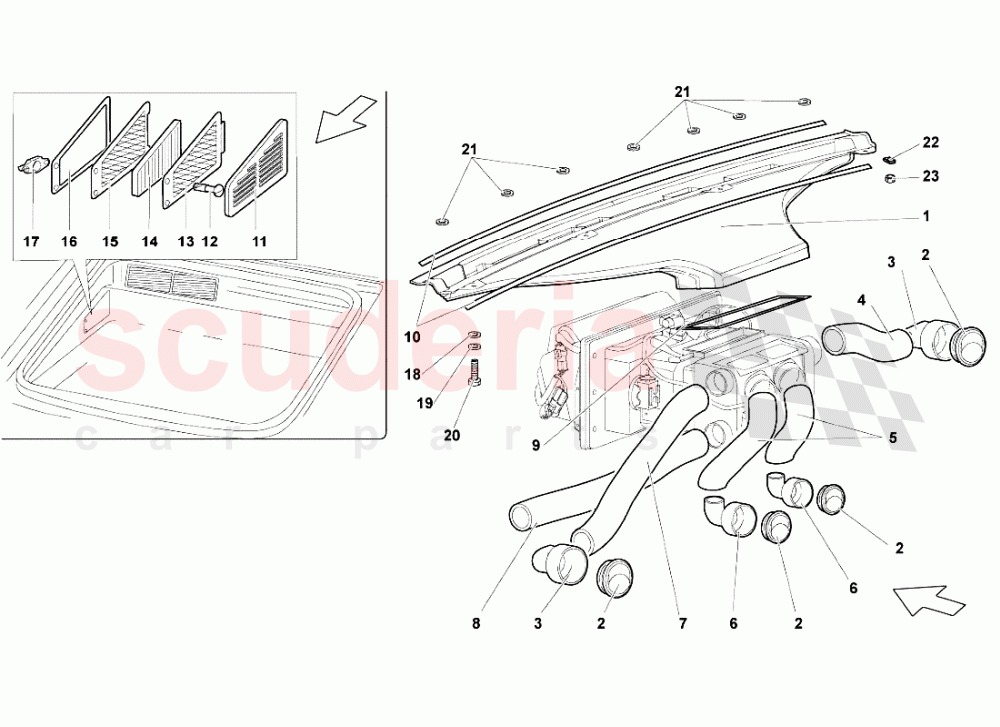

No

Kod

Parça Adı

01

4F0820155

HVAC UNIT (UNTIL THE VIN 4LA00953)

01

4F0820115F

HVAC UNIT (FROM VIN 4LA00954)

02

400820491

MANIFOLD

03

400820351A

DISTRIBUTION CLIMATE BOX (FROM VIN 4LA00954)

03

400820351

DISTRIBUTION CLIMATE BOX (UNTIL THE VIN 4LA00953)

04

4F0898438C

Kit - Filter

05

400820686

CONVEYOR

06

4F0820539

TEMPERATURE SENSOR

07

4F0820539A

TEMPERATURE SENSOR

08

4F0820511A

ACTUATOR

09

4F0820511B

ACTUATOR

10

WHT000703

SCREW M4X15

10

WHT000704

SCREW M4X26

12

N10201801

Clamp (21x7x0,6)

13

400260169

PIPE

14

400815135A

BRACKET

15

400820061

GASKET

16

WHT000916A

CLIP

17

N90986803

Screw 4.2X13

19

N10472101

SCREW M6X40

20

N10553804

SCREW M6X45
