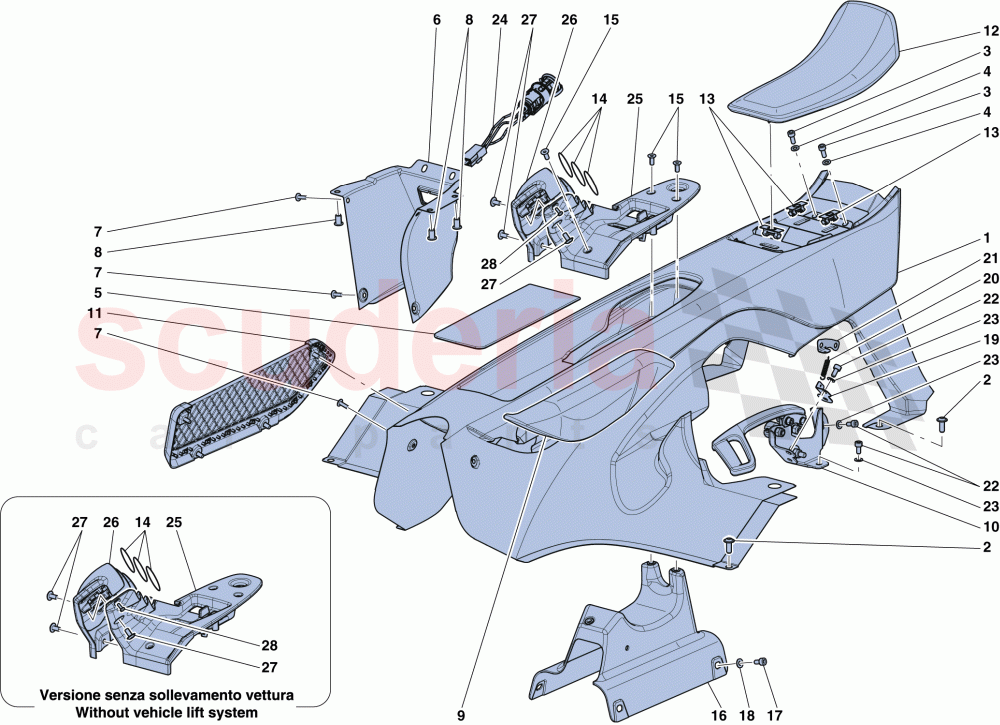

No

Kod

Parça Adı

1

84891600

CENTRE TUNNEL CONSOLE UNIT

1

85920100

CENTRE TUNNEL CONSOLE UNIT

2

65864100

SCREW

3

14304121

SCREW

23

12638178

Washer

5

85895500

TUNNEL COMPARTMENT MAT

6

85921200

CENTRE TUNNEL CONSOLE UNIT, FRONT PART

6

85605600

CENTRE TUNNEL CONSOLE UNIT, FRONT PART

7

85834000

Screw

27

85692000

SCREW

7

63343400

Screw

8

15627611

RIVET

9

85196600

LH CENTRE CONSOLE PAD

10

85267000

PEDAL BOARD RELEASE HANDLE

11

86344400

ODDMENTS RETAINER MESH

11

85963000

ODDMENTS RETAINER MESH

12

84891900

ARMREST

13

68700200

CLIP

14

85920200

CENTRE TUNNEL CONSOLE CONTROL PANEL

14

85606200

CENTRE TUNNEL CONSOLE CONTROL PANEL

14

86022100

CENTRE TUNNEL CONSOLE CONTROL PANEL

14

86021800

CENTRE TUNNEL CONSOLE CONTROL PANEL

15

14440627

SCREW

16

85735000

BRIDGE MOUNT

22

11566227

SCREW

18

12637824

WASHER

19

85936200

BRACKET

20

85959300

PEDAL BOARD RELEASE HANDLE SPRING

21

85936300

BRACKET

24

215406

12 V SOCKET

25

85920300

CENTRE TUNNEL CONSOLE CONTROL PANEL

25

85606300

CENTRE TUNNEL CONSOLE CONTROL PANEL

25

86022000

CENTRE TUNNEL CONSOLE CONTROL PANEL

25

86021700

CENTRE TUNNEL CONSOLE CONTROL PANEL

26

85920400

CENTRE TUNNEL CONSOLE COVER

26

85606400

CENTRE TUNNEL CONSOLE COVER

28

13270417

SCREW

29

121903

GASKET
