No

Kod

Parça Adı

-

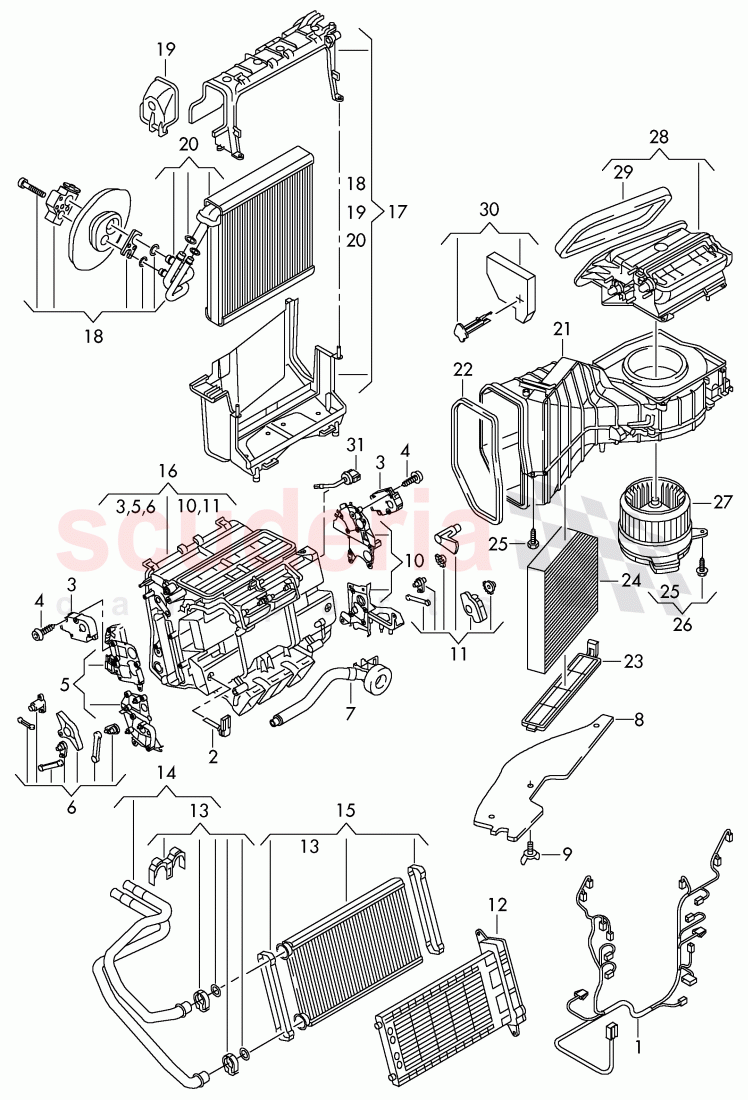

3Y1 816 005

air conditioner, assembly

-

3Y2 816 005

air conditioner, assembly

-

4H0819428

sealing strip

1

4H1971569A

wiring set for electronically regulated air-conditioning

1

4H2971569A

wiring set for electronically regulated air-conditioning

2

4B0820539

temperature sensor

3

4H0 820 511 E

motor for adjustment, D - 18.03.2013>>

4

WHT000703

Hexagon socket oval head, panel bolt (combi)

5

4H0898965

small parts kits servomotor holder

6

4H0898001

1 set of actuating levers

7

4H1816311

fresh air vent for vehicles with air condit. glove compartment

7

4H2816311

fresh air vent for vehicles with air condit. glove compartment

8

4H1819593

cover

8

4H2819593

cover

9

WHT000155

wing screw

10

4H0898966

small parts kits servomotor holder

11

4H0898001A

1 set of actuating levers

13

4H0898037A

1 set of pipe holders

14

4H1898037

1 set of tubes for heat, exchanger

14

4H2898037

1 set of tubes for heat, exchanger

15

4H0898037

heat exchanger

16

4H1820356

air distribution housing, contains:

16

4H2820356

air distribution housing, contains:

17

4H1 816 023

evaporator housing, evaporator with expansion, valve

17

4H2 816 023

evaporator housing, evaporator with expansion, valve

18

4H0 898 967 B

repair kit, expansion valve

19

4H1820231

cover

19

4H2820231

cover

20

4H1 898 967 A

evaporator with connect. parts, D - 21.12.2015>>

20

4H2 898 967 A

evaporator with connect. parts, D - 21.12.2015>>

21

4H1 820 024 A

blower housing, contains:, D - 05.01.2017>>

21

4H2 820 024 A

blower housing, contains:, D - 05.01.2017>>

22

4H0820513

gasket

23

4H0 819 422 A

cover, filter element, as required use:, D - 01.03.2012>>

24

4H0819439

Filter element for fine dust,, odour and hazardous emissions, filtering

26

4H0898967A

small parts kits

27

4H1 820 021 C

fan, D - 27.07.2016>>

27

4H2820021B

fan

28

4H1 820 153 A

intake duct, D - 01.07.2013>>

28

4H2 820 153 A

intake duct, D - 01.08.2015>>

29

4H0 819 229 A

gasket, D - 01.03.2012>>

31

4H0907543

temperature sensor
