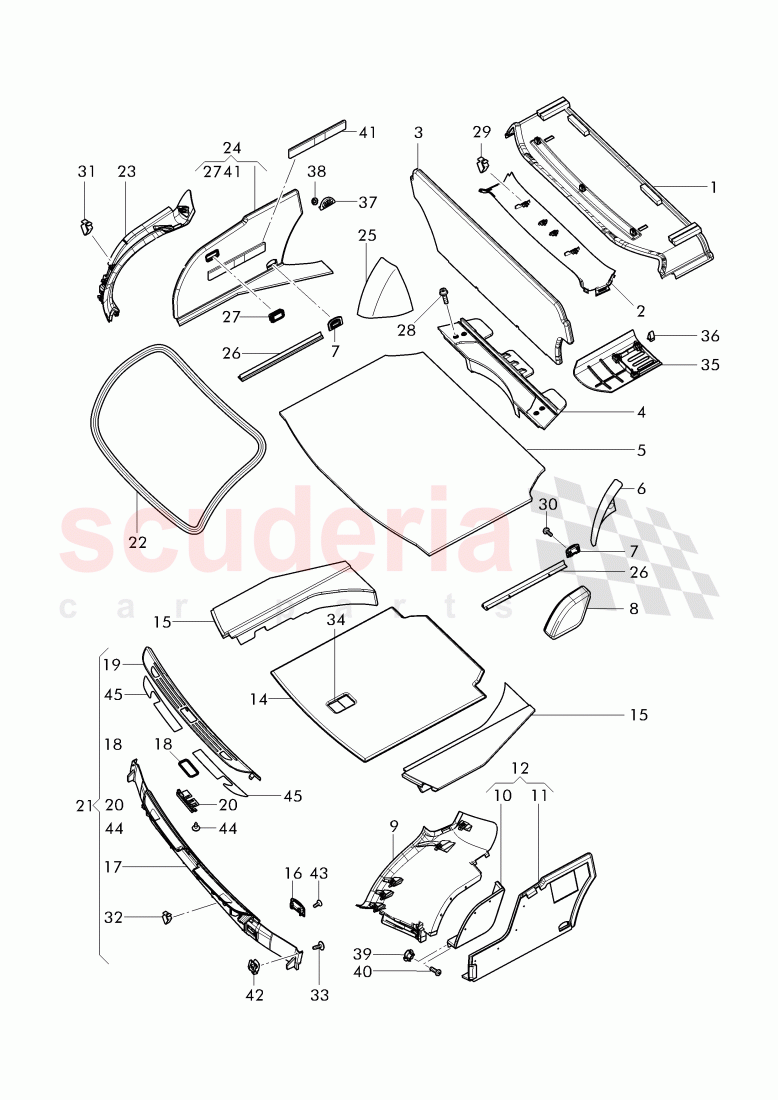

No

Kod

Parça Adı

1

3Y5801143

cover assembly protective sleeve

1

3Y5801143A

cover assembly protective sleeve

2

3Y0863721

protective sleeve trim

3

3Y0 867 360

boot lining

3

3Y0 867 360 A

boot lining

3

3Y0 867 360 B

boot lining

3

3Y0 867 360 C

boot lining

3

3Y0 867 360 D

boot lining

4

3Y5 868 265 D

boot, lining, cover

5

3Y0 800 408

trunk lining

6

3Y0 864 060

trim for wheel arch

16

1J0864203D

Lashing eye with spring, with mounting provision, in luggage compartment

16

1K0 864 203

Lashing eye without spring, D - 10.01.2013>>

8

3Y0860265

First Aid Kit, assembly, and, First-aid bag

8

3Y0 860 265 A

First Aid Kit, assembly, and, First-aid bag, D - 31.01.2016>>

9

3Y5863668

trim assembly

10

3Y5864729

pocket assembly

11

3Y0864488A

boot lining, D >> - 20.08.2012

11

3Y0864488B

boot lining, D >> - 20.08.2012

12

3Y0 867 428 C

boot lining, D - 08.12.2014>>

12

3Y0 867 428 D

boot lining, D - 08.12.2014>>

14

3Y5 868 647 C

cargo platform

15

3Y5868645C

luggage compartment floor

15

3Y5868646C

luggage compartment floor

17

3Y0863485D

molding for sill paneltrim luggage compartment floor D - 27.06.2011>>

17

3Y0 863 485 E

molding for, sill panel, cargo platform

17

3Y0 863 485 F

molding for, sill panel, cargo platform

17

3Y0 863 485 G

molding for, sill panel, Luggage compartment trim

18

3Y0823429A

jounce bumper

19

3Y5 854 887 B

sill panel trim, D - 09.01.2012>>

20

3Y0 827 257 C

striker plate for lid, D - 13.02.2012>>

21

3Y0863459

cover lock carrier protective sleeve

22

3Y5 827 705 B

gasket, D - 21.07.2014>>

23

3Y5863667

trim assembly

24

3Y0 867 427 E

boot lining, D - 08.12.2014>>

24

3Y0 867 427 F

boot lining

25

3Y0 864 059

trim for wheel arch

26

3Y0827815A

bracket

27

4B0925071A

socket luggage compartment trim

28

N90917104

Hex socket oval head collared, D - 30.05.2016>>

36

4A0867276A

clamp, F 3Y-E-019 867>> 3Y-E-019 941, F ZH-E-019 867>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

43

N10119301

hex socket countersunk bolt

33

N10545102

hexagon socket head panel bolt

34

4D0863627

bracket

35

3Y5 862 084 C

cover, compressor

35

3Y5 862 084 D

cover, compressor

37

3W7885887B

emblem, D >> - 20.08.2012

38

N91135001

clamping washer, only to be used with:, D - 02.03.2015>>

39

WHT 003 714

speed nut

40

WHT 002 900

grove screw, D >> - 04.11.2013

41

3Y0 863 637

retaining strap

42

N90698901

speed nut

44

N90986802

hexagon socket head panel bolt

45

3Y5 864 820 C

Adhesive tape (self-adhesive)
