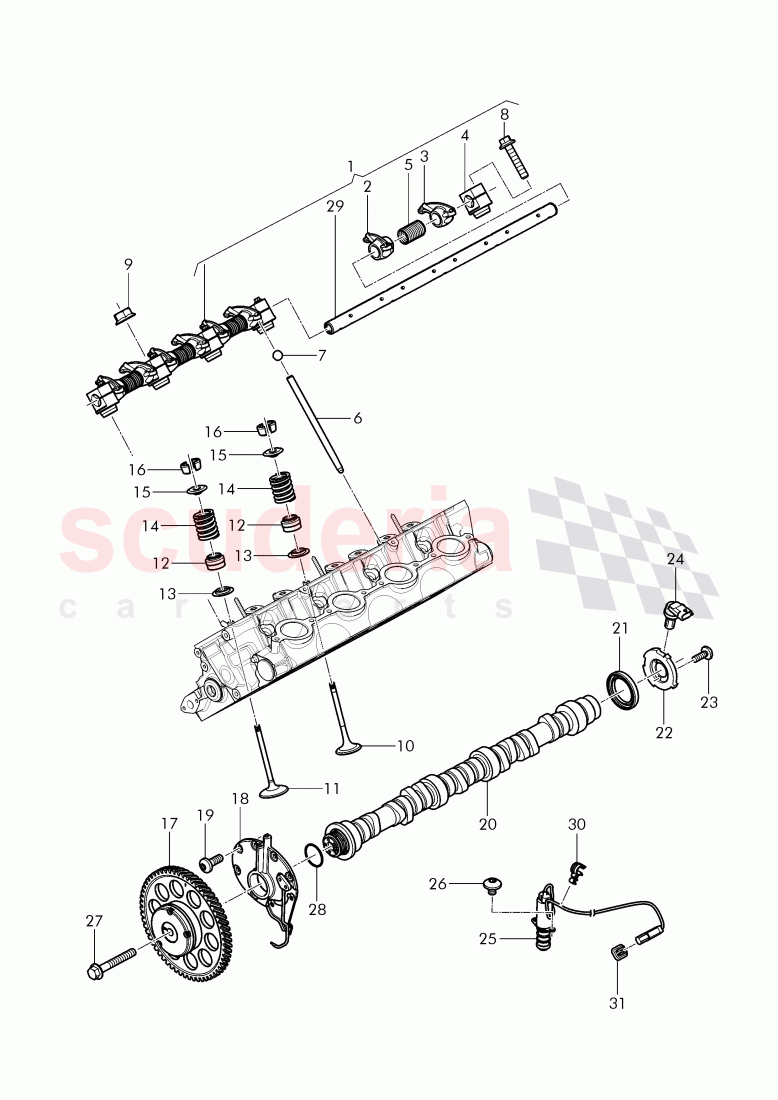

No

Kod

Parça Adı

1

07V109401

rocker lever shaft with, valve lever

2

07V109337A

rocker arm, intake valve

3

07V109338A

rocker arm, exhaust valve

4

07V109423

support valve lever shaft

5

07V109433

spacer valve lever shaft

6

07V109301A

push rod, assembly

7

07V109321

ball, push rod

8

WHT002802

bolt

9

WHT002763

hex. nut with washer

10

07V109611

exhaust valve

11

07V109601

intake valve

12

07V109675

valve guide seal

13

07V109629

spring disc

14

07V109357

valve spring

15

07V109641

spring retainer

16

07V109651

cotter, split

17

07V109227B

camshaft sprocket, camshaft adjuster unit

18

07V109142A

thrust plate

19

N10451410

socket head bolt with inner, hex round head

20

07V 109 101 C

camshaft, also use:

22

07V109230

camshaft position trigger, wheel

23

N91074201

Hexagon socket head bolt, F 3Y-C-016 803>>, F ZH-C-016 803>>

25

07V103245

control valve, camshaft adjuster unit

26

N 102 849 05

fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>

27

N10488302

bolt, hex. hd. with shoulder

28

066109345B

seal ring

29

07V 109 402

rocker arm shaft

30

3Z0 611 770

securing clip

31

1J0937510A

bracket for connector housing, flat contact housing, f. hole/sheet metal thickness:
