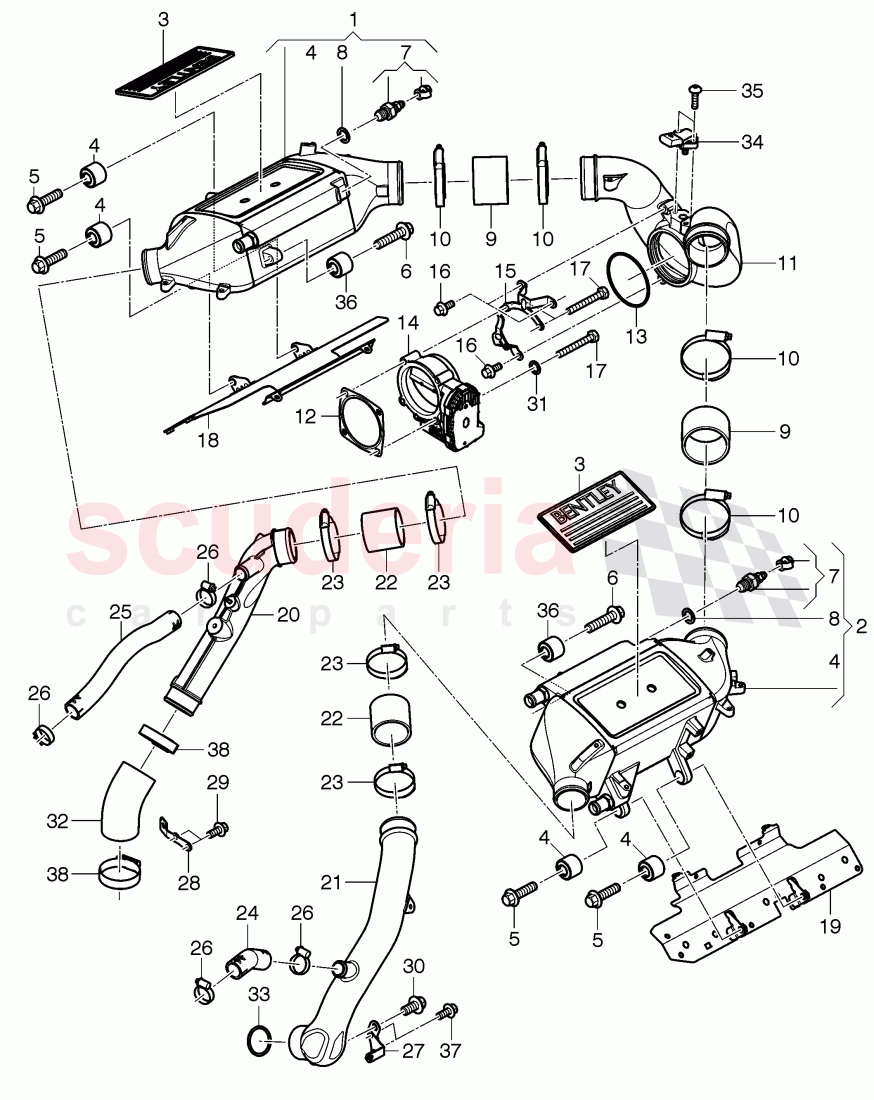

No

Kod

Parça Adı

1

07V145730B

charge air cooler

2

07V145749B

charge air cooler

3

07V145717C

badge (self-adhesive)

4

07V145848

rubber isolator

5

WHT002762

bolt

6

WHT002730

bolt

7

07V145369

nipple, bleeder screw

8

WHT002821

sealing washer

9

07V145855

air hose

10

N10731801

spring clip, D - 30.09.2013>> - 03.03.2014

11

07V145744

connecting elbow

12

07V133073

gasket, throttle valve

13

WHT002774

seal ring

14

077133062C

throttle valve adapter

15

07V145813

bracket, throttle valve

37

WHT002753

bolt

17

WHT002901

bolt

18

07V 145 492 C

carrier plate, charge air cooler, D - MJ 2016>>

19

07V145493C

mounting plate charge air cooler

20

07V 145 674 B

Pipe assembly, charge air cooler, D - 20.03.2017>>

21

07V 145 770 B

Pipe assembly, charge air cooler, D - 20.03.2017>>

22

07V 145 599 A

Hose, charge air cooler, D - 21.09.2015>>

23

N10518901

Hose Clamp

24

07V145672E

air hose

25

07V145672D

air hose

26

WHT002837

hose clip

27

07V145123

clamping bracket (for turbocharger)

28

07V131133A

bracket, harness for oxygen sensor

29

WHT002751

bolt

30

WHT002761

bolt

31

WHT002896

washer

32

07V145593

hose for turbocharger

33

WHT002696

seal ring

35

N10599501

round hd. screw, see illustration, item:

38

WHT002836

hose clip
