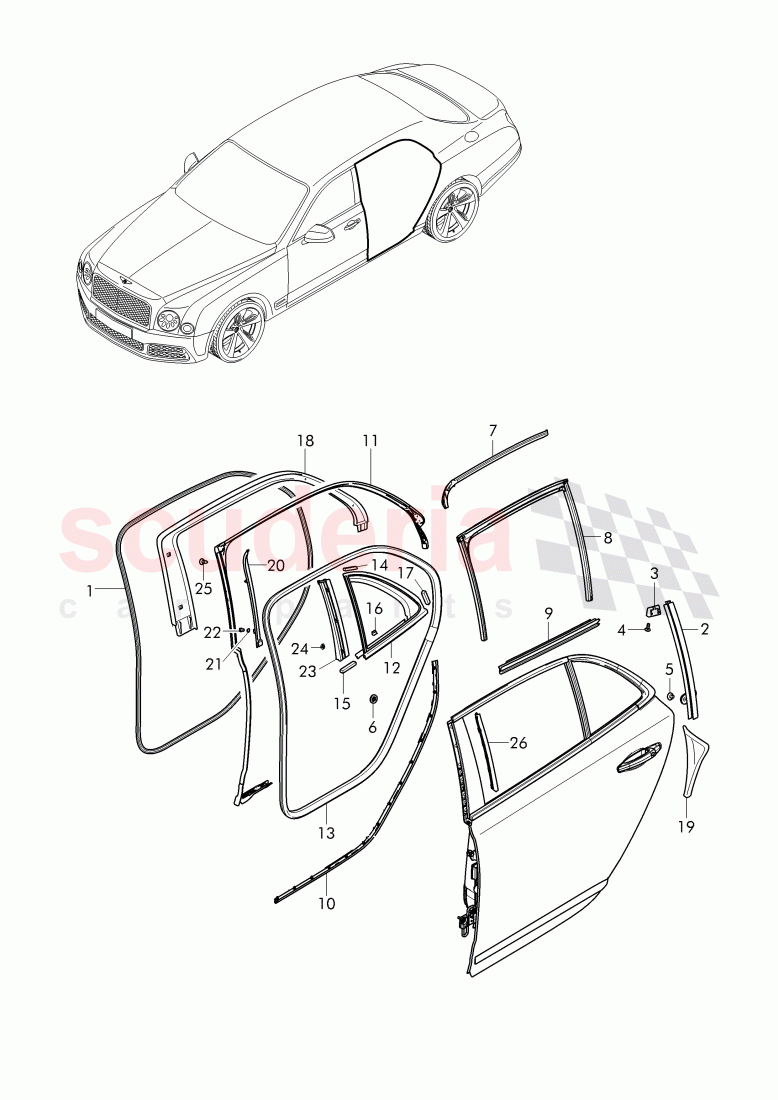

No

Kod

Parça Adı

1

3Y5839701

door seal, outer

1

3Y4839701A

door seal, outer

2

3Y5839487D

glass channel, D >> - 22.02.2017

2

3Y5839488D

glass channel, D >> - 22.02.2017

3

3Y5839167A

bracket

3

3Y5839168A

bracket

4

N90626204

oval hexagon socket head bolt

5

N 102 849 05

fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>

6

N10226701

bungs

7

3Y5839717

door frame decor/finish:

7

3Y4 839 717

door frame, trim

7

3Y5839718

door frame decor/finish:

7

3Y4 839 718

door frame, trim

8

3Y5839431

window guide with, window slot seal

8

3Y4 839 431

window guide with, window slot seal

8

3Y5839432

window guide with, window slot seal

8

3Y4 839 432

window guide with, window slot seal

9

3Y5 839 479 B

door seal, D - 16.05.2011>>

9

3Y4 839 479

door seal

9

3Y5 839 480 B

door seal, D - 16.05.2011>>

9

3Y4 839 480

door seal

10

3Y5839433E

margin seal, D - 19.12.2011>>

10

3Y4 839 433 A

margin seal

10

3Y5839434E

margin seal, D - 19.12.2011>>

10

3Y4 839 434 A

margin seal

11

3Y5839155C

gap sealing

11

3Y4 839 155

margin seal

11

3Y5839156C

gap sealing

11

3Y4 839 156

margin seal

12

3Y5 839 439 E

seal strip, glass channel, D - 20.02.2012>>

12

3Y4 839 439

seal strip, glass channel

12

3Y5 839 440 E

seal strip, glass channel, D - 20.02.2012>>

12

3Y4 839 440

seal strip, glass channel

13

3Y5867367B

door seal, inner, body shell

13

3Y4 867 367

door seal, inner, Body

14

3Y5837807

plastic foam

15

3Y5837808

plastic foam

16

3Y5839739

plastic foam

17

3Y5839740

plastic foam

18

3Y5867603C

Trim for window frame, lining

18

3Y5 867 603 D

Trim for window frame, lining

18

3Y4867603A

Trim for window frame

18

3Y5867604C

Trim for window frame, lining

18

3Y5 867 604 D

Trim for window frame, lining

18

3Y4867604A

Trim for window frame

19

3Y5 839 157 B

insert, (self-adhesive), door seal, D - 14.07.2014>>

19

3Y5 839 158 B

insert, (self-adhesive), door seal, D - 14.07.2014>>

20

3Y5 867 685 B

Trim for window frame

20

3Y5 867 685 C

Trim for window frame

20

3Y5 867 686 A

Trim for window frame

20

3Y5 867 686 B

Trim for window frame

21

N90475903

speed nut

22

N10586401

oval hexagon socket head bolt

23

3Y5 867 617 A

Door trim strip

23

3Y5 867 618 A

Door trim strip

24

3W0868517

locking washer

25

3Y0 867 780

clamp

26

3Y5 868 487 B

trim stripe for door, Curtain system

26

3Y5 868 488 B

trim stripe for door, Curtain system
