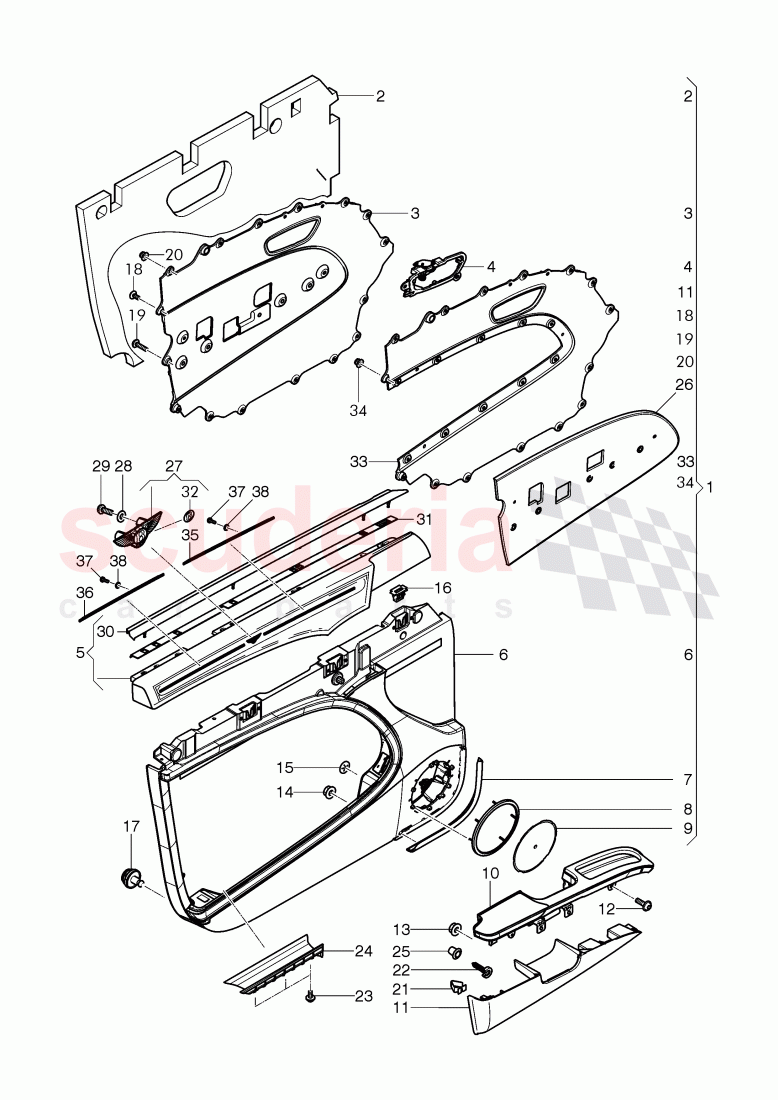

No

Kod

Parça Adı

1

3Y1867013

assembly door panel trim (leather)

1

3Y1867014

assembly door panel trim (leather)

1

3Y2867015

assembly door panel trim (leather)

1

3Y2867016

assembly door panel trim (leather)

2

3Y5867049B

sound abs. for door trim panel

2

3Y5867050B

sound abs. for door trim panel

3

3Y5868601

door insert piece

3

3Y5868602

door insert piece

4

3Y0837197B

clamping ring, assembly

4

3Y0837198B

clamping ring, assembly

5

3Y1867101

door trim panel, upper part, assembly

5

3Y1867102

door trim panel, upper part, assembly

7

3Y5867941

chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366

7

3Y5867942

chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366

8

3Y5867860

loudspeaker chrome trim

9

3Y5035410

loudspeaker grille

10

3Y1 867 173 F

armrest

10

3Y1 867 174 E

armrest

10

3Y2 867 174 F

armrest

10

3Y2 867 173 E

armrest

11

3Y5 867 181 D

armrest, assembly, D >> - 13.07.2015

11

3Y5 867 182 D

armrest, assembly

12

N90638103

round hd. screw, D - 14.02.2011>>

34

N10118104

hex. nut, D - 03.01.2011>> - 29.08.2011

14

N10334801

shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366

15

3W0868517

locking washer

16

7M3858153

spring clip, D >> - 30.08.2011

17

6Q0868243

clip

18

N10586401

oval hexagon socket head bolt

19

N91074201

Hexagon socket head bolt, F 3Y-C-016 803>>, F ZH-C-016 803>>

21

4A0867276A

clamp, F 3Y-E-019 867>> 3Y-E-019 941, F ZH-E-019 867>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

22

3W0867549

clamp, D >> - 02.04.2012

23

N90918701

hexagon socket head panel bolt

24

3Y1837641A999

torch bracket trim

24

3Y2867683

torch bracket trim

25

3B0867334

grommet, D >> - 02.04.2012

26

3Y5867007B

insert piece

26

3Y5867008B

insert piece

32

3Y0 867 932 A

Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

28

N0115359

washer

29

N10613301

Hexagon socket flat, head bolt

30

3Y5 868 017 C

Door trim strip

30

3Y5 864 557 C

Door trim strip

30

3Y5 868 018 C

Door trim strip

30

3Y5 864 558 C

Door trim strip

31

3Y0 853 045 B

plastic foam, (self-adhesive)

31

3Y0 853 046 B

plastic foam, (self-adhesive)

33

3Y5 868 601 A

insert

33

3Y5 868 602 A

insert

35

3Y5 867 435

chrome trim, door panel

36

3Y5 867 436

chrome trim, door panel

37

3W5 867 652

t-head screw

38

3W5 867 651

Washer
