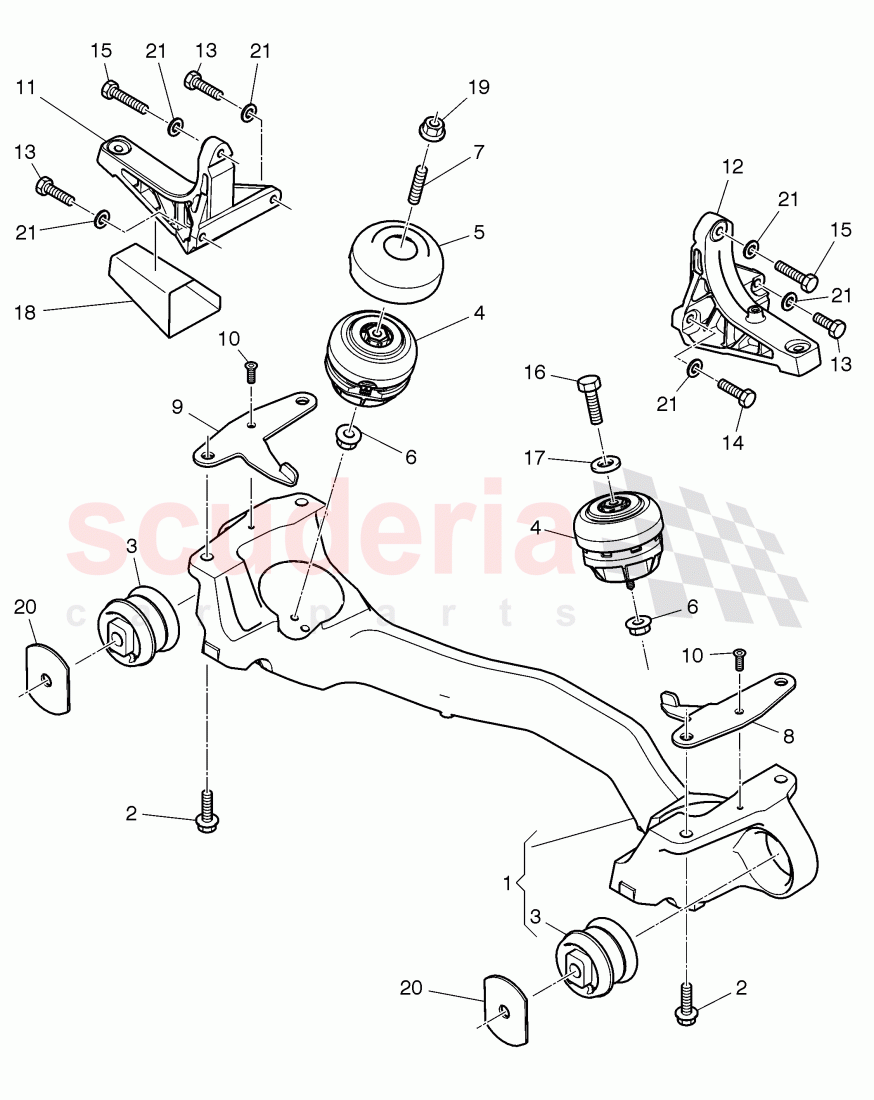

No

Kod

Parça Adı

1

3Y0 199 205 C

engine carrier with rubber, mounting, D - 27.10.2014>>

2

WHT003242

bolt, D >> - 30.04.2012

3

3Y0 199 143

mounting for sub frame

4

3Y0199384A

engine mounting

5

3Z0199455

heat shield

6

N10435507

shouldered hex. nut,, self-locking, D - 11.12.2006>>

7

WHT003246

stud

8

3Y0 199 335

stop plate, D - 25.11.2013>>

9

3Y0 199 336

stop plate, D - 25.11.2013>>

10

WHT003243

countersunk bolt

11

07V199584

engine mounting bracket

12

07V199583

engine mounting bracket

13

WHT002862

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

13

N01472310

bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

14

WHT002863

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

14

N 102 048 07

bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

15

WHT002864

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

15

N 107 285 02

bolt, hex. hd. with shoulder, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

16

WHT003245

bolt

17

WHT003244

washer

18

3Z0199458

heat shield

19

N10286110

shouldered hex. nut,, self-locking

21

WHT 002 851

Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
