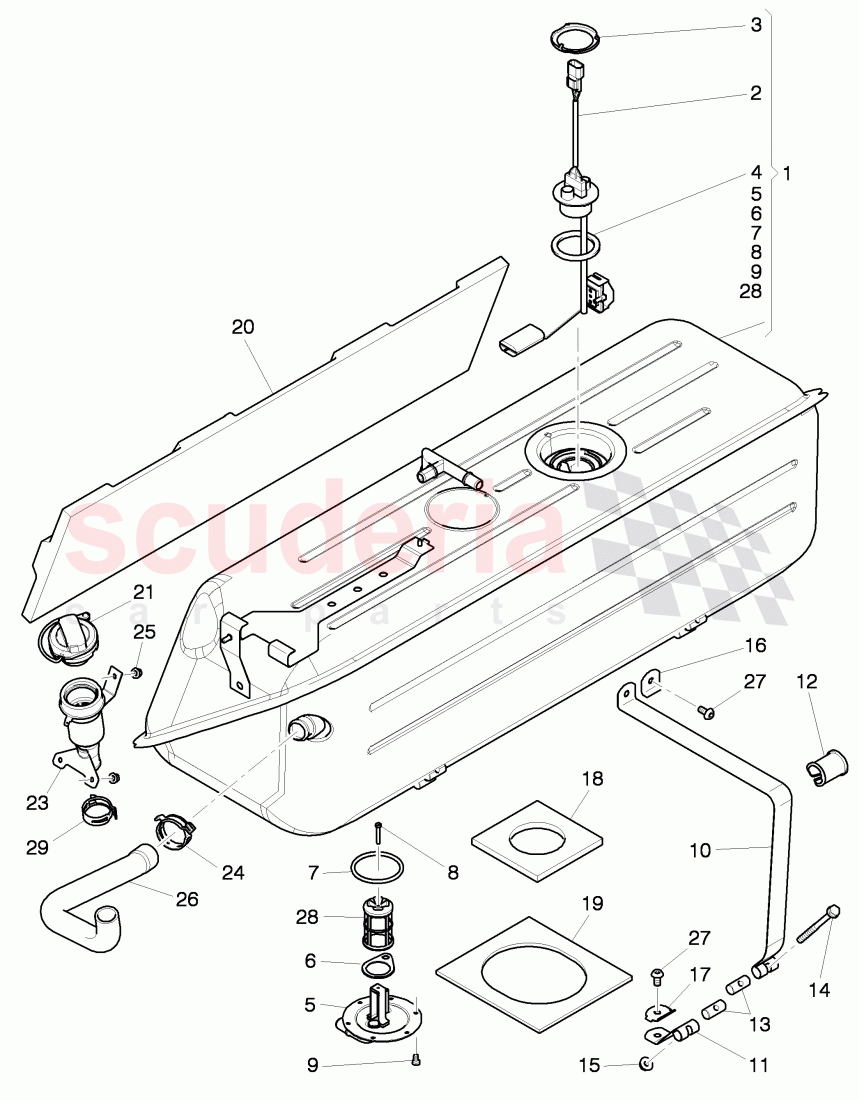

No

Kod

Parça Adı

1

3Y0 201 021 L

fuel tank, D - 18.01.2016>>

2

3Y0201065

Transmitter unit for fuel, gauge

3

3Z0201099

crown bracing

4

UE70476

RING SEALING SENDER UNIT

5

3Y0 201 194 C

flange, fuel tank, D - 13.10.2014>>

6

3Z0201119

gasket

7

WHT003513

seal ring

8

WHT003501

screw, cheese hd.

9

N0102258

screw, hex. hd.

10

3Y0201313

retaining strap, fuel tank

11

3Z0201653A

retaining strap, fuel tank

12

3Z0201656

insulating piece, retaining strap, fuel tank

13

3Z0201341

pipe

14

N10414502

hexagon head bolt (combi)

15

N02300212

hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742

16

3Y0201693

rubber isolator

17

3Z0201176

support bracket safety belt fuel tank

18

3Z0201196

seal strip, (self-adhesive)

19

3Z0201446

seal strip, (self-adhesive)

20

3Y0201538A

damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>

21

3Y0 201 550 N

cap with retaining strap for, fuel tank, D - 18.04.2016>>

21

3Y0 201 550 P

cap with retaining strap for, fuel tank, D - 18.04.2016>>

23

3Y5201133

fuel filler neck

24

07L145917

hose clip

25

N90215805

shouldered hex. nut, Discont./New add.+FULU calc.

26

3Y5201609B

hose fuel filler neck

27

N10106905

hexagon head bolt (combi)

28

3Z0201511

fuel filter with flange

29

N90687101

spring band clamp
