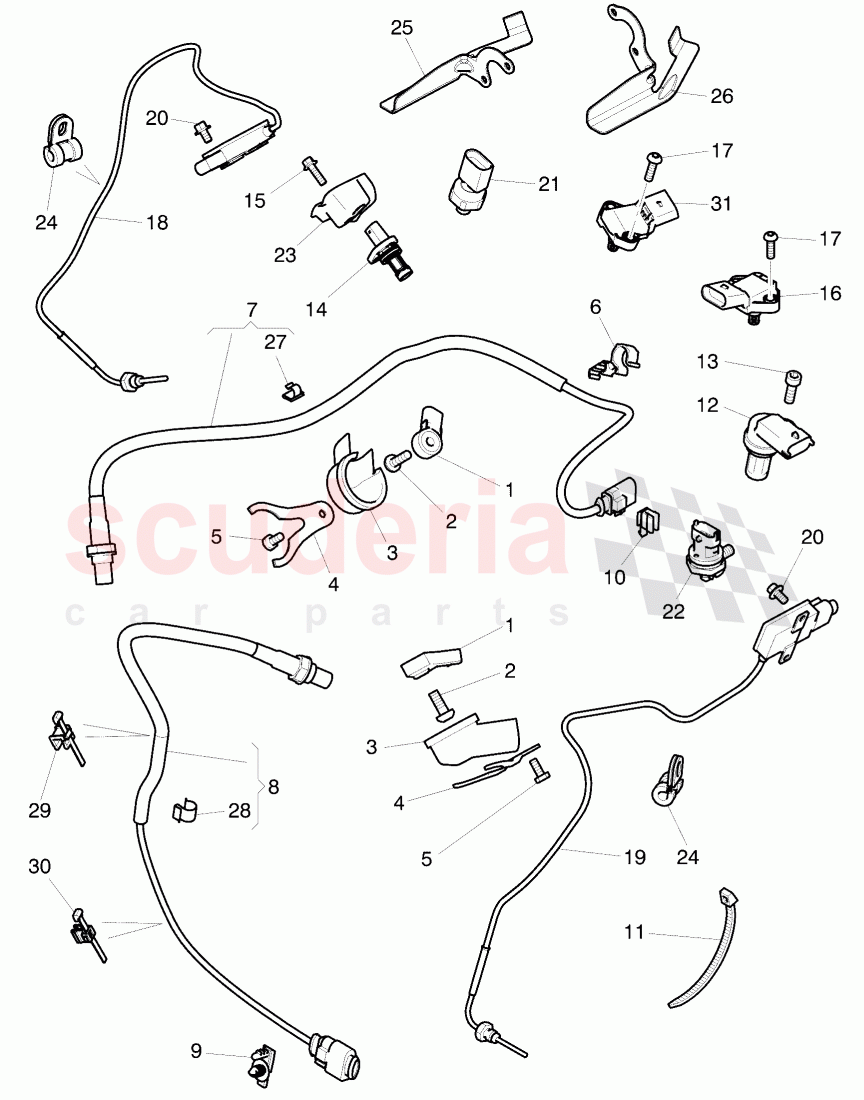

No

Kod

Parça Adı

5

UT13203PA

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

5

N10338903

bolt, hex. hd. with shoulder, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

1

030905377C

knock sensor

2

WHT002815

Flat head multi-point, socket bolt

3

07V905386A

heat shield, knock sensor

4

07V103370

bracket for knock sensor

6

6X0971842C

cable holder

7

07V906262B

lambda probe (behind catalyst)

8

07V906265A

lambda probe (in front of catalyst)

9

1J0906029A

bracket for connector housing

10

3B0919136A

bracket for connector housing

11

3D0971838L

tie wrap with socket, D - 18.02.2013>>

12

07V907271A

impulse sender, camshaft

13

WHT002902

socket head bolt with hexagon socket head

14

06H 906 433 D

impulse sender, crankshaft, D - 26.12.2016>>

15

WHT002755

bolt

16

03G906051M

pressure sensor

17

N10599501

round hd. screw, see illustration, item:

18

07V 919 529 J

emissions temperature sensor, D - 19.01.2015>>

19

07V 919 529 H

emissions temperature sensor, D - 19.01.2015>>

20

WHT002751

bolt

22

07V 906 054 A

oil pressure gauge sender, D - 16.01.2012>>

23

07V103638

grommet

24

3Z0103518

clamp, as required use:, F 3Y-E-018 846>> 3Y-E-019 941, F ZH-E-018 846>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

25

07V131081

holder for wiring harness

26

07V131082

holder for wiring harness

27

1J0971842

terminal

28

8A0971848C

terminal

29

7L5971847B

cable tie with terminal socket

30

3D0 971 838 M

tie wrap with socket
