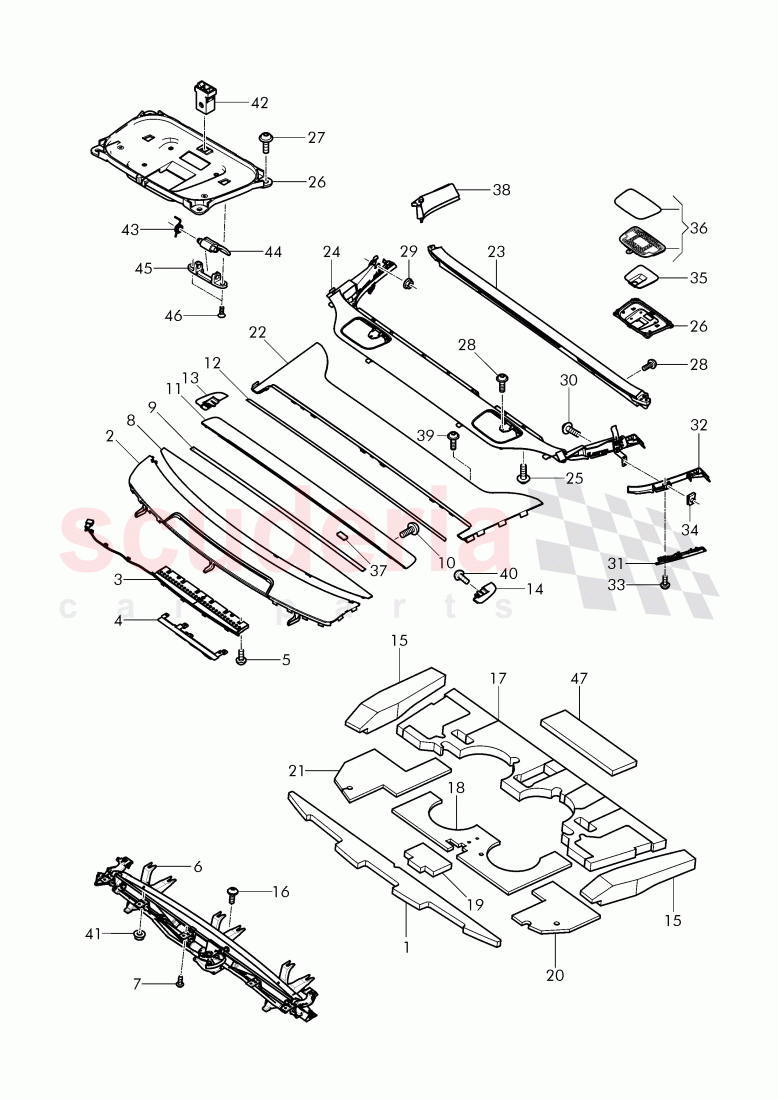

No

Kod

Parça Adı

1

3Y5868333A

gasket, parcel shelf, rear

2

3Y5868479C

cooling air grill, D >> - 22.10.2012

2

3Y5 868 479 E

cooling air grill, D - 22.10.2012>> - 17.11.2014

2

3Y5 868 479 J

cooling air grill

2

3Y5868479D

cooling air grill, D >> - 22.10.2012

2

3Y5 868 479 F

cooling air grill, D - 22.10.2012>> - 17.11.2014

2

3Y5 868 479 K

cooling air grill, D - 17.11.2014>>

4

3Y5868628B

bracket, F >> 3Y-D-018 055, F >> ZH-D-018 055

4

3Y5 868 628 C

bracket, F 3Y-D-018 056>>, F ZH-D-018 056>>

7

N10415903

Oval hexagon socket head bolt, D >> - 25.07.2011

6

3Y5 861 323 E

sun cover with frame for, rear window glass, D - 08.10.2012>>

8

3Y5864391B

parcel tray

8

3Y5 864 391 C

parcel tray

8

3Y5 854 525

parcel tray

8

3Y5 854 525 A

parcel tray

9

3Y5861953

gap sealing

25

N90944604

Oval hexagon socket head bolt, alternatively, you can use:, D >> - 30.06.2014

11

3Y5863287A

door, parcel tray

11

3Y5 863 162

door, parcel tray

12

3Y5863125

felt strip

13

3Y5863497A

end cap

14

3Y5863498A

sealing cap

15

3Y5 864 157 B

foam insert

39

N91074201

Hexagon socket head bolt, F 3Y-C-016 803>>, F ZH-C-016 803>>

17

3Y5864160B

sound baffle, parcel tray

18

3Y5 864 863 A

sound baffle

19

3Y5863645

sound baffle

20

3Y5 864 836 A

sound baffle

21

3Y5 864 835 A

sound baffle

22

3Y5863403D

parcel tray, assembly, D >> - 19.08.2013

22

3Y5 863 403 E

parcel tray, assembly, D - 19.08.2013>>

23

3Y5 863 412

trim for parcel shelf,, rear

24

3Y5 864 714 F

parcel tray

24

3Y5 864 446 A

parcel tray

24

3Y5 864 714 G

parcel tray

24

3Y5 864 446

parcel tray

26

3Y5 813 597 B

bracket for child seat, D - 26.06.2016>>

27

N90918701

hexagon socket head panel bolt

29

N10118104

hex. nut, D - 03.01.2011>> - 29.08.2011

31

3Y0919175B

trim with light fibrestrip

31

3Y0919176B

trim with light fibrestrip

32

3Y5863131

cover strip

32

3Y5 864 675

cover strip

32

3Y5863132

cover strip

32

3Y5 864 676

cover strip

33

N10507803

round hd. screw

34

3W0864215

clip

35

3Y5857494

rubber molding

36

3Y5885505

cover, bracket for child seat

37

3Y5858299

foam packing, (self-adhesive)

40

N91019901

Hexagon socket flat, head bolt, F 3W-6-030 421>> 3W-8-054 534

41

N10334801

shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366

42

3W5 861 206 A

catch, D - 03.01.2011>>

43

3Z5 863 203 A

spring

44

3Z5 863 301 A

lever

45

3Z4 885 235

retainer

46

WHT 003 766

screw, csk. hd.

47

3Y5 863 317 A

sound baffle
