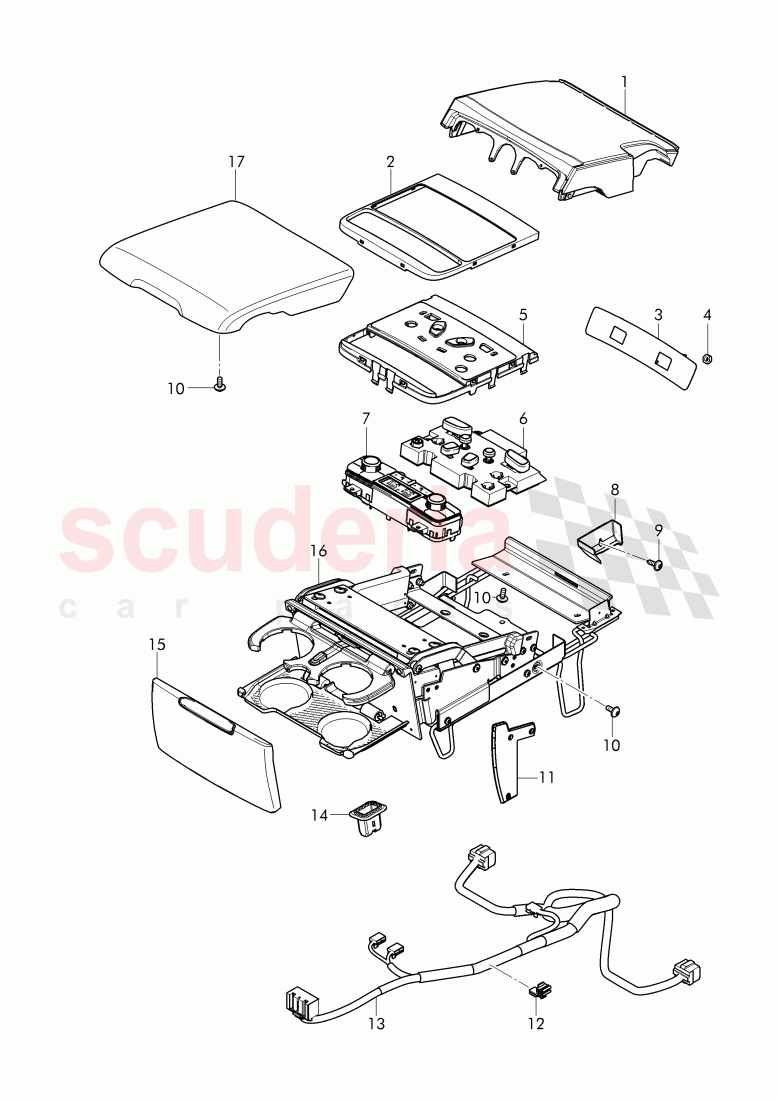

No

Kod

Parça Adı

1

3Y5 862 399 B

seat padding with cover

1

3Y5 862 399 D

seat padding with cover

1

3Y5 862 399 C

seat padding with cover

1

3Y5 862 399 E

seat padding with cover

2

3Y5883102

trim for switch module

3

3Y5 862 634 B

carrier plate, for vehicles with, USB interface

4

WHT003969

hexagon nut

5

3Y1 886 415 D

plate

5

3Y2 886 415 D

plate

5

3Y1 886 415 E

plate, for vehicles with Seat, ventilation and Massage

5

3Y2 886 415 E

plate, for vehicles with Seat, ventilation and Massage

5

3Y1 886 415 F

plate, for vehicles with Seat, ventilation and Massage

5

3Y2 886 415 F

plate, for vehicles with Seat, ventilation and Massage

8

3Y0 883 145 B

belt guide, D - 03.11.2014>>

9

N10642802

Hexagon socket head panel bolt, alternatively, you can use:

10

N10640201

Oval hexagon socket head bolt

11

3Y5 862 243

quarter trim panel

11

3Y5 862 244

quarter trim panel

12

3D0971497B

bracket for connector housing

13

3Y0 971 158 L

harness,rear

13

3Y0 971 158 P

harness,rear, D - 15.05.2017>>

14

1K0886373C

grommet

15

3Y5 862 537

cover, cup holder

16

3Y5 860 431 E

frame part, cup holder

16

3Y5 860 431 F

frame part, Can holder

17

3Y5 862 522 B

seat padding with cover
