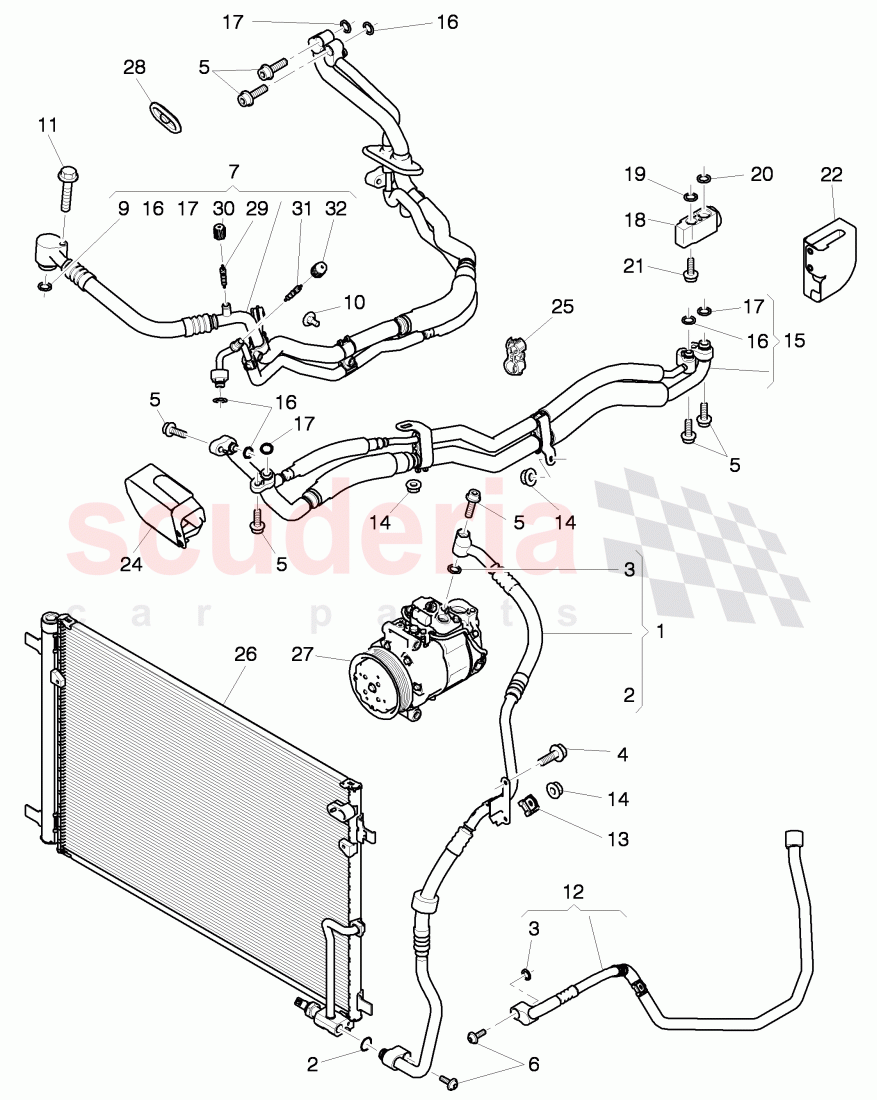

No

Kod

Parça Adı

1

3Y0 260 701 D

refrigerant tube, (air conditioner compressor), air conditioner condenser), D - 12.04.2013>>

17

4E0260749B

seal ring

3

4E0260749A

seal ring

4

N10158605

bolt,hex.hd.with shoul.(combi), F 3W-C-076 377>> 3W-C-076 377, F ZA-C-076 377>> ZA-C-076 377

5

N10414402

bolt, with hex. socket, hd., D - 11.12.2006>> - 21.03.2011

6

N90969901

hex socket head locating bolt

7

3Y2 260 702 D

refrigerant tube, (air conditioner condenser >, evaporator), D - 12.04.2013>>

7

3Y1 260 702 D

refrigerant tube, (air conditioner condenser >, evaporator), D - 12.04.2013>>

9

8E0260749C

seal ring

10

8D0201441C

speed nut

11

N10640801

screw, hex. hd., F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

12

3Y0 260 705 C

refrigerant tube, (air conditioner condenser >, evaporator), D - 12.04.2013>>

13

N0206226

clamp

14

N90215805

shouldered hex. nut, Discont./New add.+FULU calc.

15

3Y5 260 741 B

refrigerant tube, for vehicles with, 2nd evaporator, D - 12.04.2013>>

16

3D0260749C

seal ring

18

4H0820181

expansion valve

19

8A0260749AJ

o-ring

20

8E0260749D

o-ring

21

N10723801

socket head bolt with inner, hex round head

22

3Y0260127

cover, expansion valve

24

3Y0260774

cover, refrigerant tube

25

8E0260759AP

bracket for refrigerant, hose

28

N90508801

sealing cap

29

3D0820855A

valve insert

30

3C0 820 231

protective cap, for refrigerant:

31

3D0820855

valve insert

32

3D0820581

protective cap
