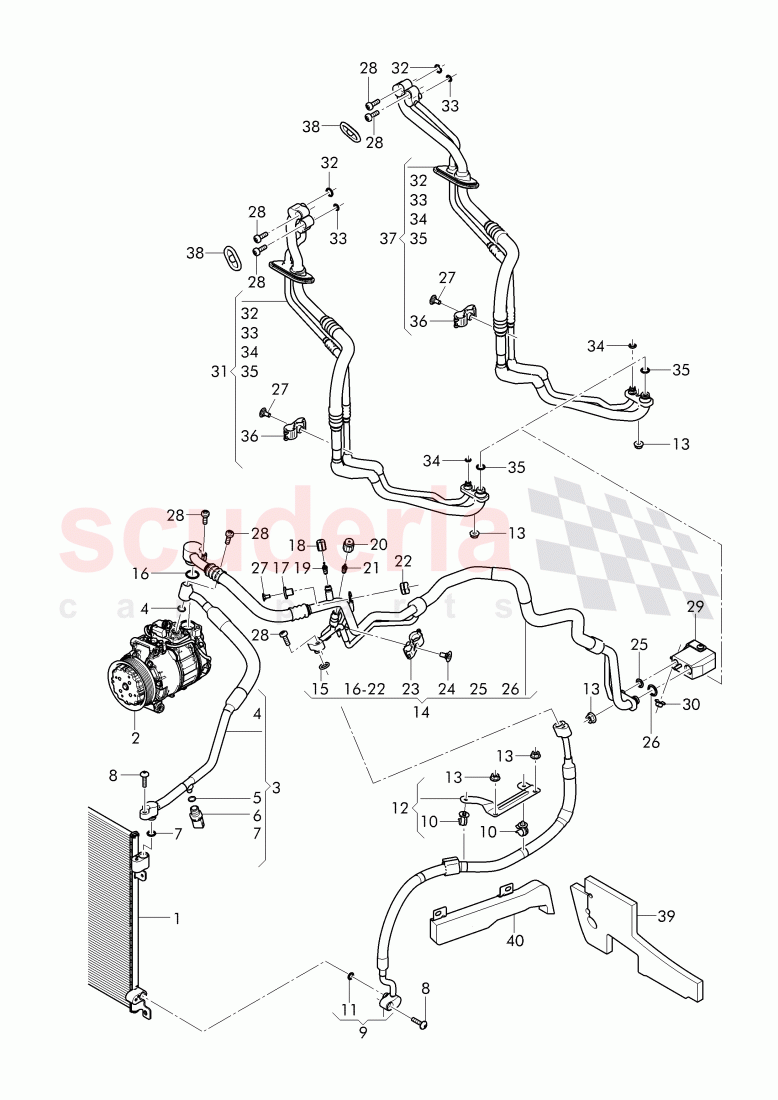

No

Kod

Parça Adı

1

3Y0 260 347 A

connecting piece, see illustration:

2

3Y5 816 885

set refrigerant/coolant lines

9

8D0201441C

speed nut

4

4D0 260 749 B

seal ring

15

4E0260749B

seal ring

8

4E0 260 759 F

bracket for refrigerant, hose

7

N90887704

hex. nut, D >> - 06.05.2013

10

3Y0 816 725

refrigerant tube

12

3D0260749C

seal ring

13

3Y0 816 743

refrigerant tube

16

N 912 191 01

Flat head multi-point, socket bolt

17

8A0260749AJ

o-ring

18

8E0260749D

o-ring

19

4H0 816 181

expansion valve

20

N10723801

socket head bolt with inner, hex round head

21

3Y0 260 127 B

cover, expansion valve
